5-30 CHASSIS
REAR WHEEL, REAR BRAKE, AND REAR SHOCK ABSORBER

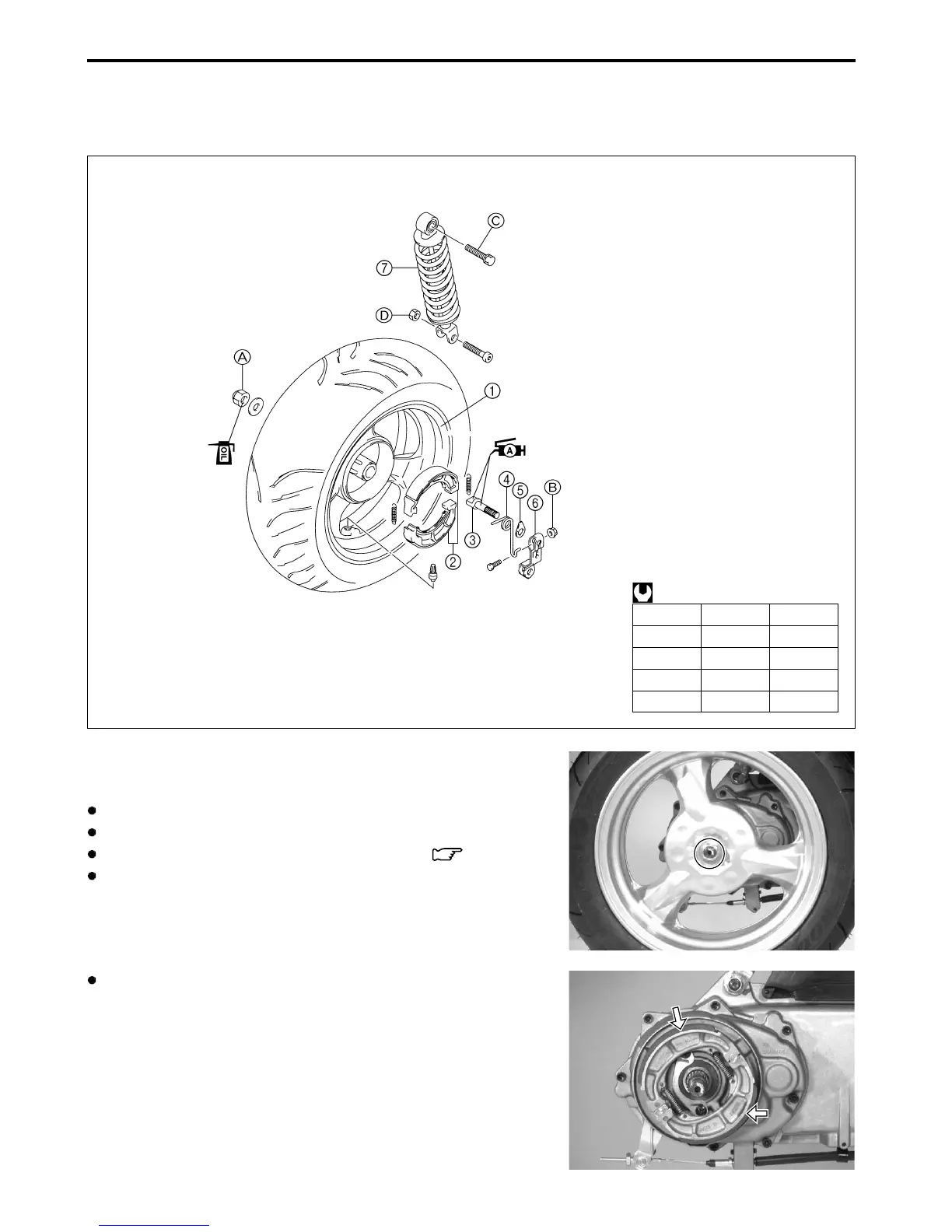

CONSTRUCTION
A Rear axle nut
B Rear brake cam lever nut
C Rear shock absorber upper mounting bolt
D Rear shock absorber lower mounting nut
ITEM N·m kgf-m
A 120 12.0
B 10 1.0
C 29 2.9
D 35 3.5
1 Rear wheel
2 Brake shoe
3 Brake cam
4 Return spring
5 Brake lining wear indicator plate
6 Brake cam lever
7 Rear shock absorber
REMOVAL AND DISASSEMBLY
REAR WHEEL AND BRAKE
Place the motorcycle on level ground.
Support the motorcycle using a jack or wooden block.
Remove the exhaust pipe/muffler assembly. ( 3-6)
Remove the rear wheel.
Remove the brake shoes.
