ELECTRICAL SYSTEM 6-13

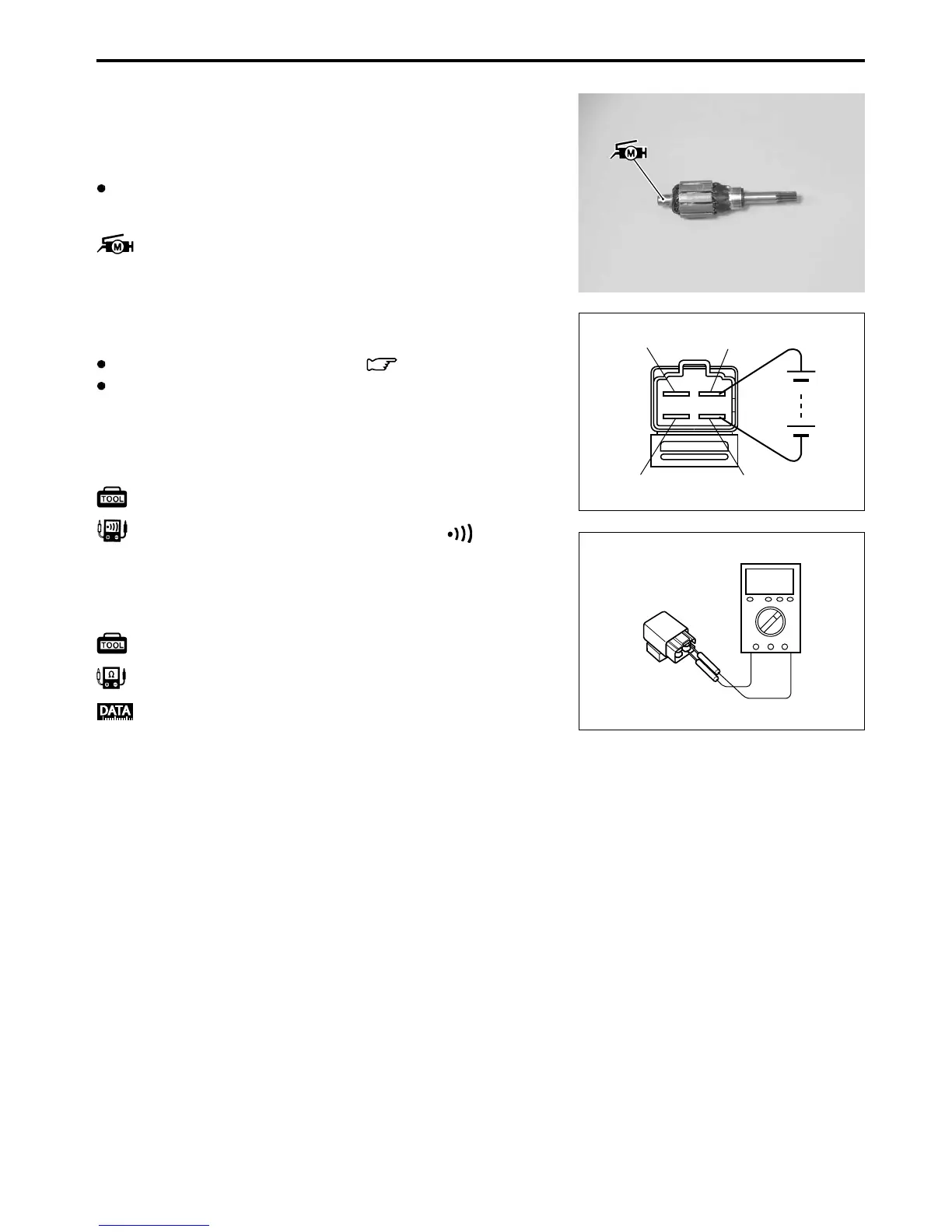

STARTER MOTOR REASSEMBLY
Reassemble the starter motor in the reverse order of disassem-
bly. Pay attention to the following point:
Apply a small quantity of SUZUKI MOLY PASTE to the arma-
ture shaft.
99000-25140: SUZUKI MOLY PASTE
STARTER RELAY INSPECTION
Remove the battery holder cover. ( 6-30)
Remove the starter relay.
Apply 12 volts to terminals A and B, and measure for continuity
between terminals C and D as shown. If the starter relay clicks
and continuity is found, the relay is operating correctly.
09900-25008: Multi circuit tester set
Tester knob indication: Continuity test ( )
Measure the starter relay resistance between the terminals us-
ing the multi circuit tester. If the resistance is not within the speci-
fied value, replace the starter relay with a new one.
09900-25008: Multi circuit tester set
Tester knob indication: Resistance (
ΩΩ
ΩΩ
Ω)
Starter relay resistance
Standard: 50 – 90
ΩΩ
ΩΩ
Ω
D
B
A
C
