30.6 Configuring Caller Display Information
The Caller Display Information table lets you configure caller identification strings (Caller
ID) per FXS and FXO port. this table also lets you enable the device to send the Caller ID
to the IP when a call is made. The called party can use this information for caller
identification. The device sends the configured caller ID in the outgoing INVITE message's
From header. For information on Caller ID restriction according to destination/source
prefixes, see ''Configuring Source/Destination Number Manipulation'' on page 381.
Notes:
• If an FXS port receives 'private' or 'anonymous' strings in the SIP From header,
the calling name or number is not sent to the Caller ID display.
• If the device detects Caller ID on an FXO line (EnableCallerID = 1), it uses this
Caller ID instead of the Caller ID configured in the Caller Display Information table.
The following procedure describes how to configure caller ID in the Web interface. You can
also configure this using the table ini file parameter, CallerDisplayInfo or CLI command,
configure voip > gw analoggw caller-display-info.

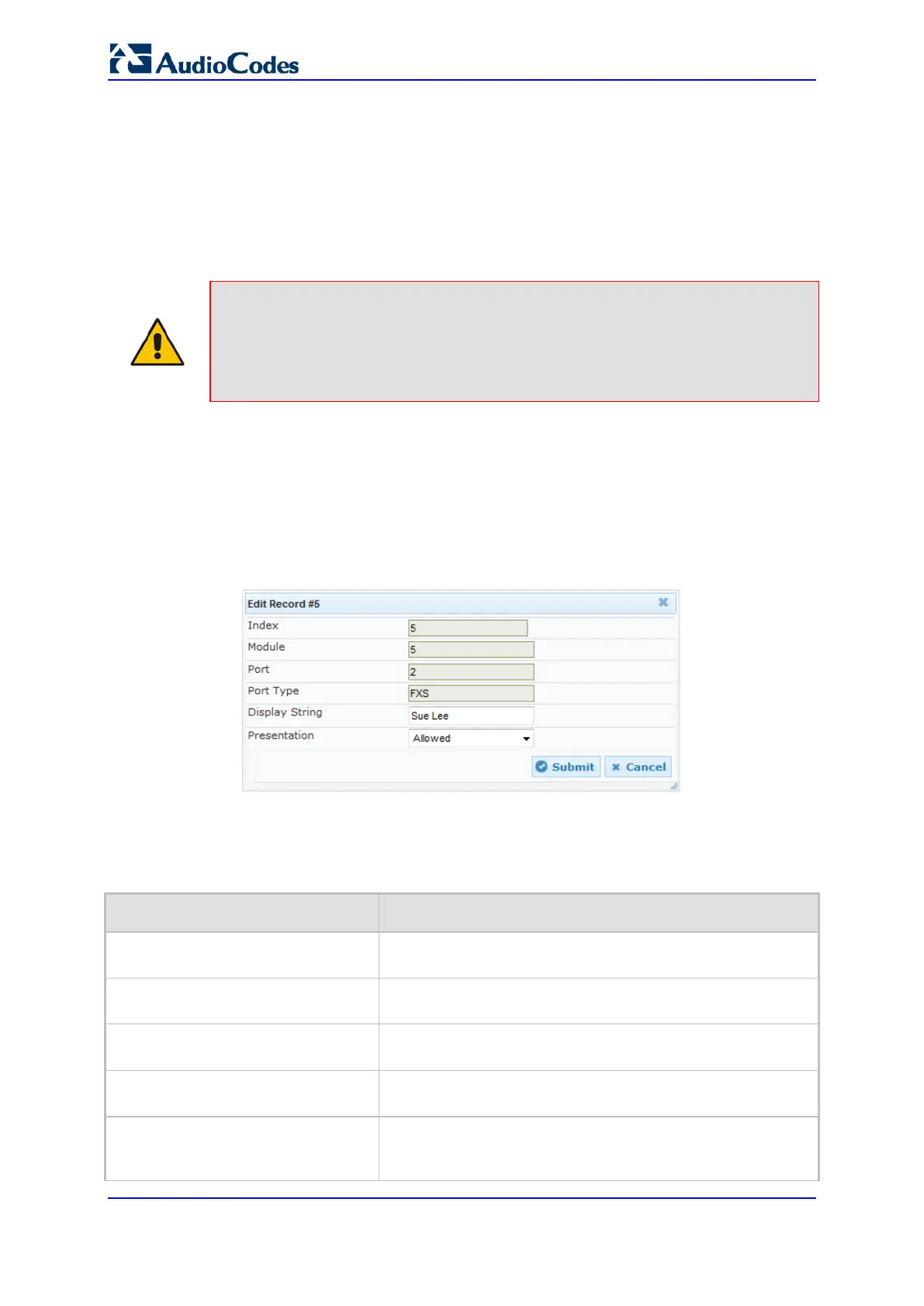

 To configure Caller display:
1. Open the Caller Display Information page (Configuration tab > VoIP menu > GW and
IP to IP > Analog Gateway > Caller Display Information).
2. Click Add; the following dialog box appears:
3. Configure caller display per port according to the parameters described in the table
below.
4. Click Submit, and then save ("burn") your settings to flash memory.
Table 30-3: Caller Display Information Table Parameter Descriptions
Parameter Description
Index
[CallerDisplayInfo_Index]
(Read-only) Displays the index number of the table record.
Module
[CallerDisplayInfo_Module]
(Read-only) Displays the module number on which the port is
located.
Port
[CallerDisplayInfo_Port]
(Read-only) Displays the port number.
Port Type
[CallerDisplayInfo_PortType]
(Read-only) Displays the port type (FXS or FXO).
Display String
CLI: display-string
[CallerDisplayInfo_DisplayString]
Defines the Caller ID string.
The valid value is a string of up to 18 characters.
