53.3 Viewing Trunk Utilization
The Trunk Utilization page provides an X-Y graph that displays the number of active
channels per trunk over time. The x-axis indicates the time; the y-axis indicates the number
of active trunk channels.
Notes:
• The Trunk Utilization page is available only if your device is equipped with have
trunks and the SBC application is disabled.
• If you navigate to a different page, the data displayed in the graph and all its
settings are cleared.
 To view the number of active trunk channels
1. Open the Trunk Utilization page (Status & Diagnostics tab > Performance
Monitoring menu > Trunk Utilization).

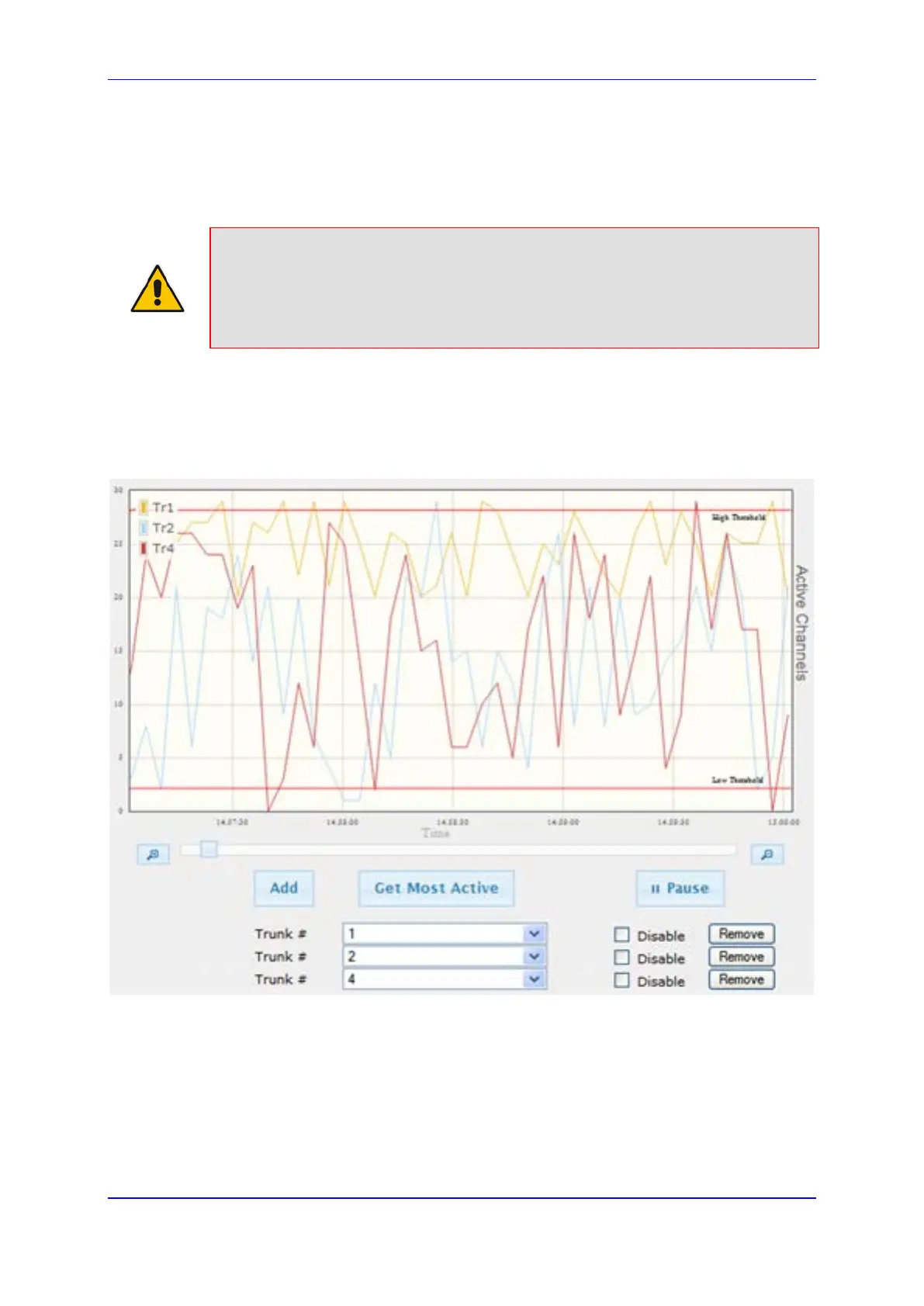

Figure 53-3: Trunk Utilization Page
2. From the 'Trunk' drop-down list, select the trunk for which you want to view active
channels.
For more graph functionality, see the following table:
