Chapter 1 Configuring the Cisco Phone Proxy
Configuration Examples for the Phone Proxy
address 10.10.0.25 interface outside
phone-proxy mypp
media-termination my_mediaterm
tftp-server address 192.0.2.101 interface inside
tls-proxy mytls
ctl-file myctl
cluster-mode mixed
class-map sec_sccp
match port tcp 2443
class-map sec_sip
match port tcp eq 5061
policy-map pp_policy
class sec_sccp
inspect skinny phone-proxy mypp
class sec_sip
inspect sip phone-proxy mypp
service-policy pp_policy interface outside
Example 3: Mixed-mode Cisco UCM cluster, Cisco UCM and TFTP Server
on Different Servers
Figure 1-4 shows an example of the configuration for a mixed-mode Cisco UCM cluster using the
following topology where the TFTP server resides on a different server from the Cisco UCM.
In this sample, the static interface PAT for the TFTP server is configured to appear like the ASA’s outside
interface IP address.

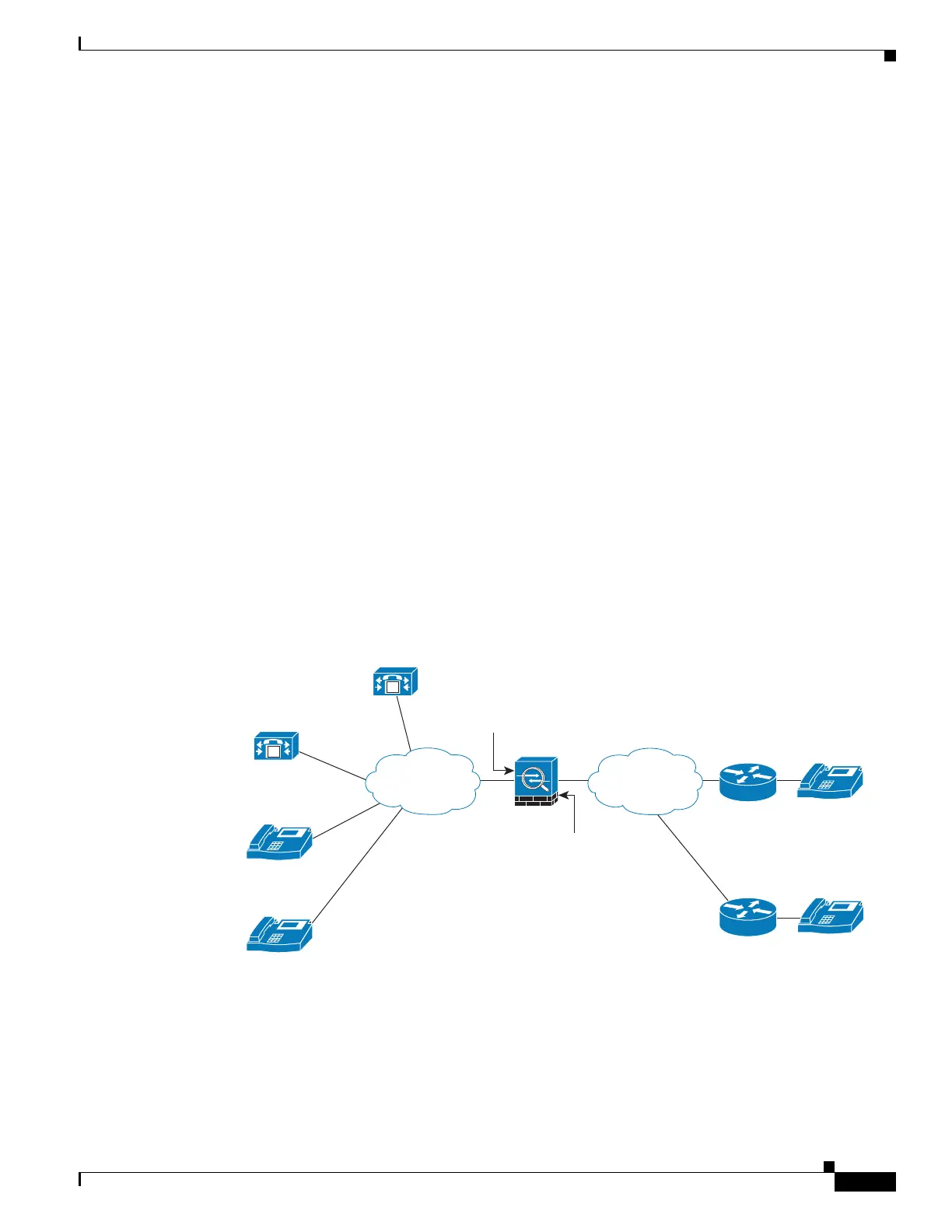

Figure 1-4 Mixed-mode Cisco UCM cluster, Cisco UCM and TFTP Server on Different Servers
object network obj-192.0.2.105
host 192.0.2.105
nat (inside,outside) static 10.10.0.26
object network obj-192.0.2.101
271634
IP
Internet
Corporate
Network
Phone B
192.0.2.103
IP
Phone A
192.0.2.102
IP
Comcast
Address
98.208.49.30
ASA Inside Interface
192.0.2.24
ASA Outside Interface
10.10.0.24
M
TFTP / Publisher
192.0.2.101
M
Cisco UCM
192.0.2.105
Comcast
Address
69.181.112.219
IP
Home Router
w/NAT
Home Router
w/NAT
