Intra- and Inter-Chassis Module Placement for the ASA Services Module
Figure 1-8 shows a typical intra-switch configuration.
Figure 1-8 Intra-Switch Failover
Inter-Chassis Failover
To protect against switch-level failure, you can install the secondary ASASM in a separate switch. The
ASASM does not coordinate failover directly with the switch, but it works harmoniously with the switch
failover operation. See the switch documentation to configure failover for the switch.
To accommodate the failover communications between ASASMs, we recommend that you configure a
trunk port between the two switches that carries the failover and state VLANs. The trunk ensures that
failover communication between the two units is subject to minimal failure risk.
For other VLANs, you must ensure that both switches have access to all firewall VLANs, and that
monitored VLANs can successfully pass hello packets between both switches.

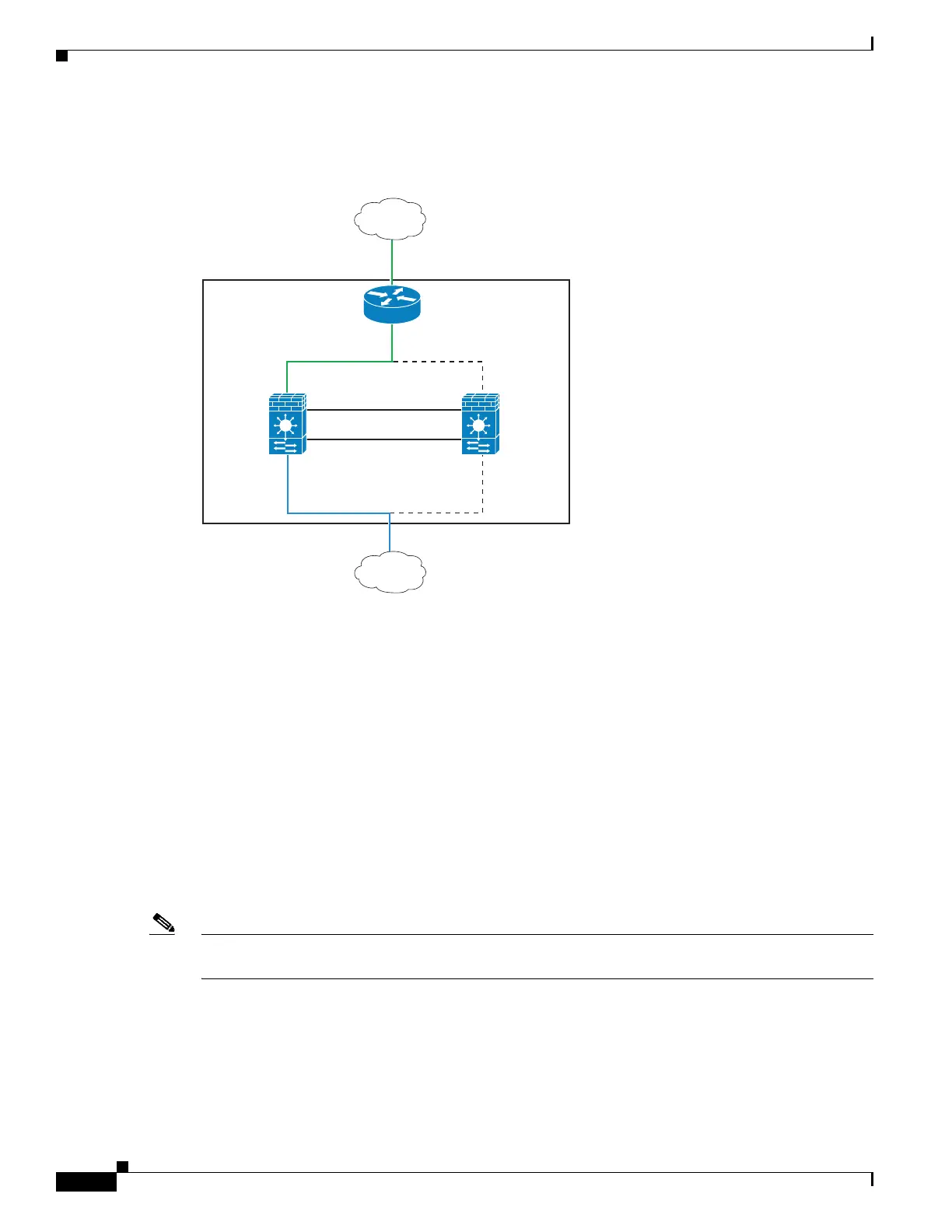

Figure 1-9 shows a typical switch and ASASM redundancy configuration. The trunk between the two
switches carries the failover ASASM VLANs (VLANs 10 and 11).
Note ASASM failover is independent of the switch failover operation; however, ASASM works in any switch
failover scenario.
Active
ASASM
VLAN 200
S
witch
VLAN 100
VLAN 201
Standby
ASASM
Internet
State VLAN 11
Failover VLAN 10
Inside
255219
