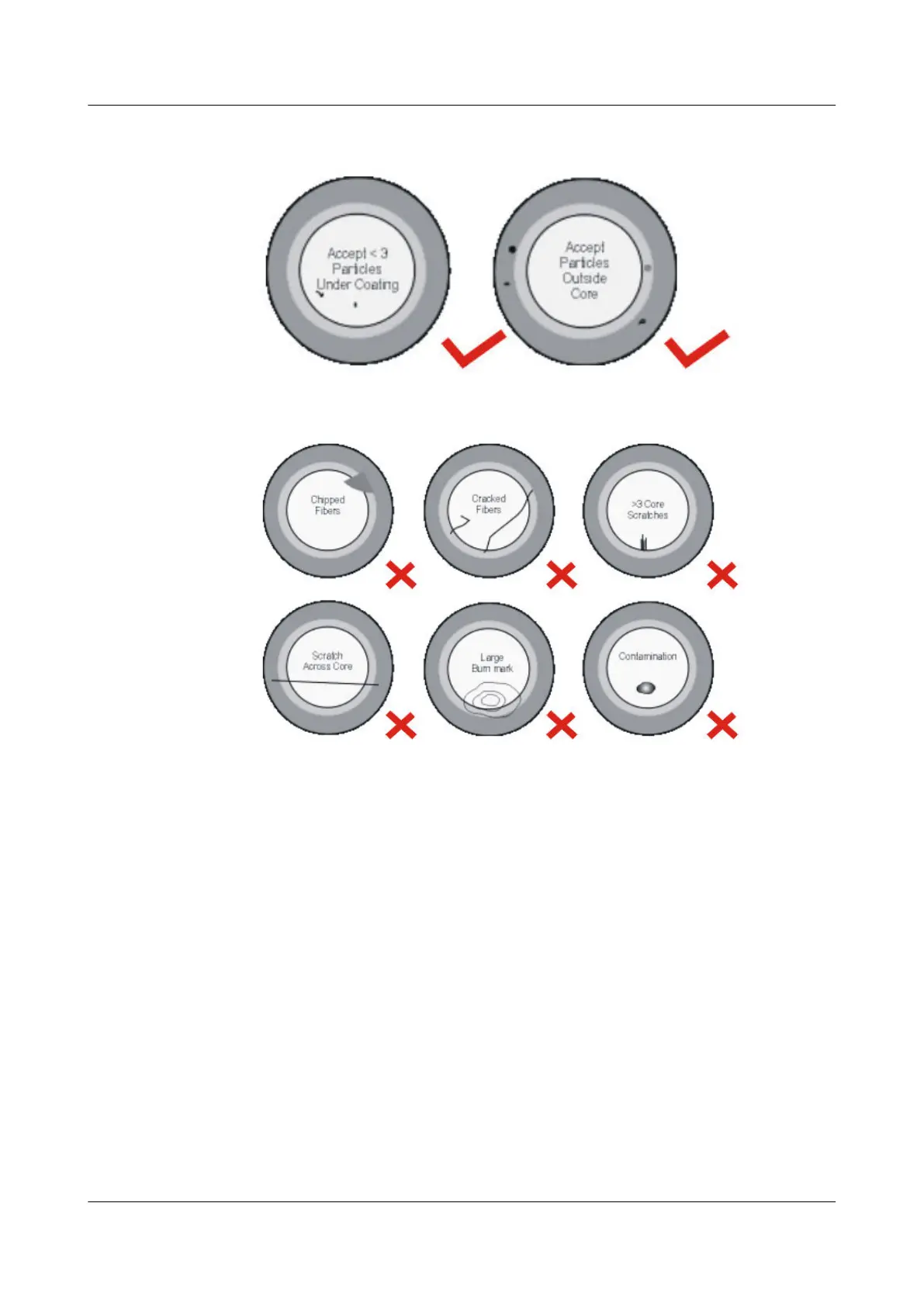

Figure 4-45 Acceptable bers with imperfections
Figure 4-46 Unacceptable bers with imperfections
4. If any dirt is detected, clean the optical ber connector. For details, see
"Cleaning Optical Fiber Connectors Using the Cassette Cleaner" and "Cleaning
Optical Fiber Connectors Using Lens Tissue".
5. If any damage is detected, replace the
ber.
4.1.4.5.5 Inspecting the Optical Fiber Link
This section describes the insertion loss and reection requirements of optical links
and the method of checking the quality of optical links for the application of 50G
optical modules with the PAM4 coding technology.
Tools, Equipment, and Materials
Tools and instruments for checking optical
ber links are as follows:
● OTDR meter
● Fiber microscope
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 391
