● Bundle the network cables in a rectangle shape. Ensure that the cable ties are evenly
spaced and face the same direction.
● Route cables at a proper distance from each other. Otherwise, the installation of other
cables may be
aected.
● Route Ethernet cables, power cables, and ground cables separately. The Ethernet cables
must not be damaged or broken or have joints.
1. Attach temporary labels to both ends of each network cable.
2. Route network cables along the cable tray and plug them into corresponding
interfaces.
3. Use a network cable tester to test the connectivity of network cables.
4. Use cable ties to bundle network cables at an interval of 150 mm and fasten
the network cables to the rack.
5. Attach permanent labels 20 mm from both ends of each network cable.

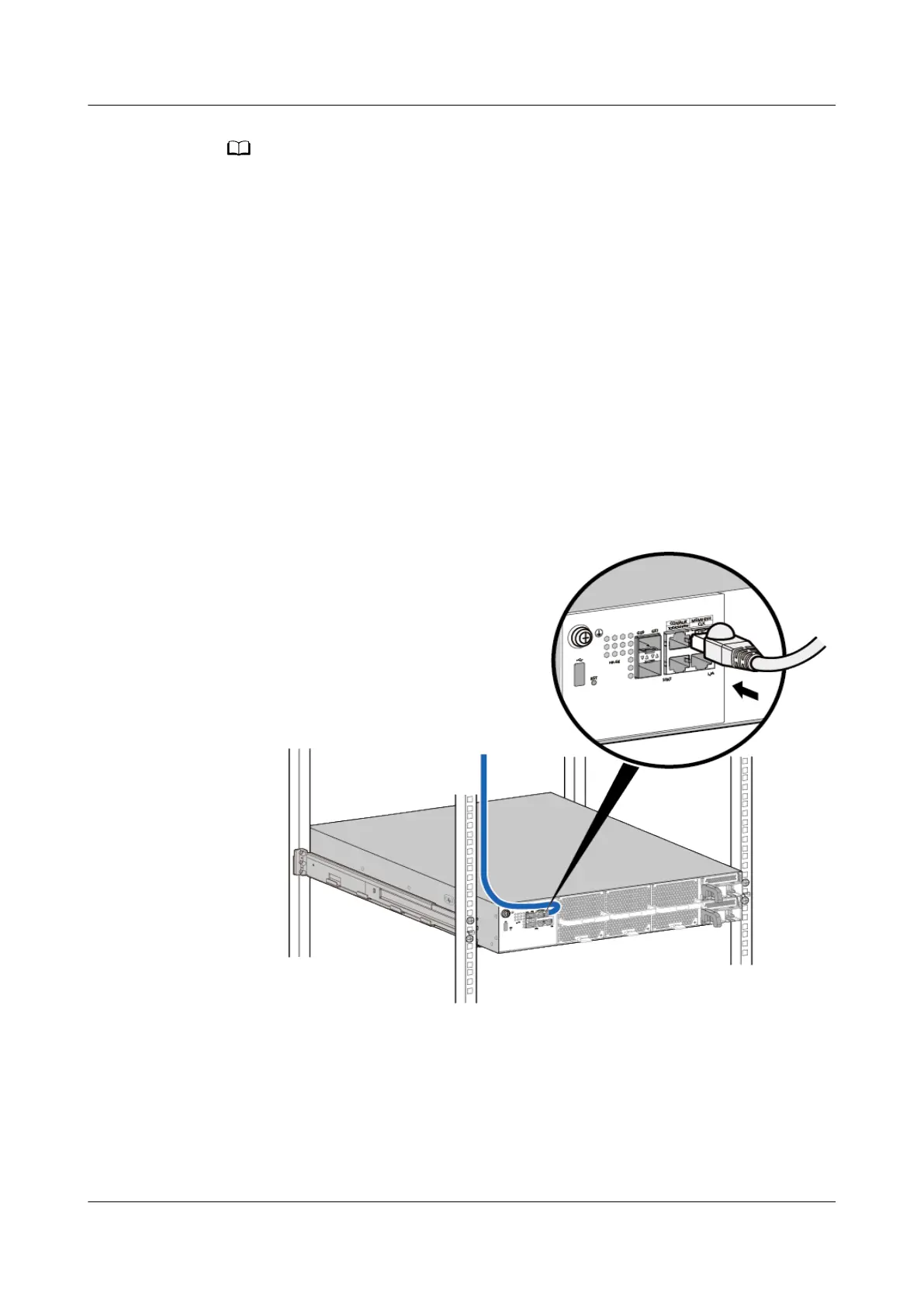

Figure 4-267 Installing network cables
4.2.7.3 Installing a Cabinet Ground Cable
1. Install a cabinet ground cable.
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 614
