4.2.12.4.1 Introduction to Labels
Label Materials
Features:
● Thickness: 0.09 mm (0.004 in.)
● Color: chalk white
● Material: polyester (PET)
● Ambient temperature: -29°C (-20.2°F) to +149°C (300.2°F)
● Printed by a laser printer and written with a marker
● Pass UL and CSA authentication
Type and Structure
Label for Signal Cables
The label for signal cables is L-shaped with
xed dimensions, as shown in Figure
4-376.

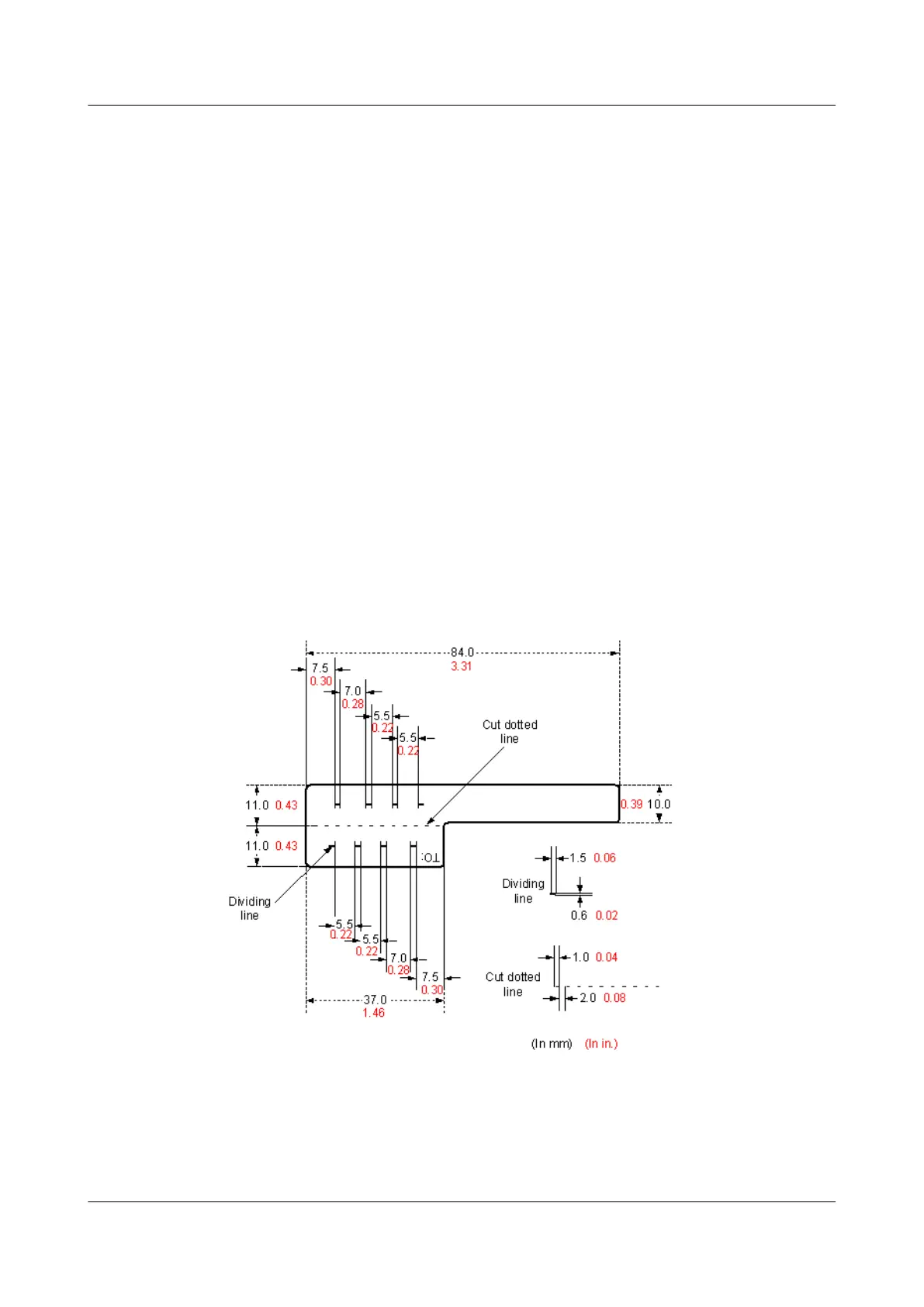

Figure 4-376 Label for signal cable
To specify more clearly the position of a cable, use the dividing lines on the label.
For example, there is a dividing line between the cabinet number and the chassis
number, and another one between the chassis number and the slot number. Each
dividing line is light blue (Pantone 656c) and 1.5 mm x 0.6 mm (0.06 in. x 0.02
in.).
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 703
