● If the hub is a standalone device without a cabinet or chassis, the label should
contain specic location information that identies the hub.
The serial number on the hub, the network interface number of the agent or
terminal, and the location of the standalone device should be specied according
to actual connections.
Label Example

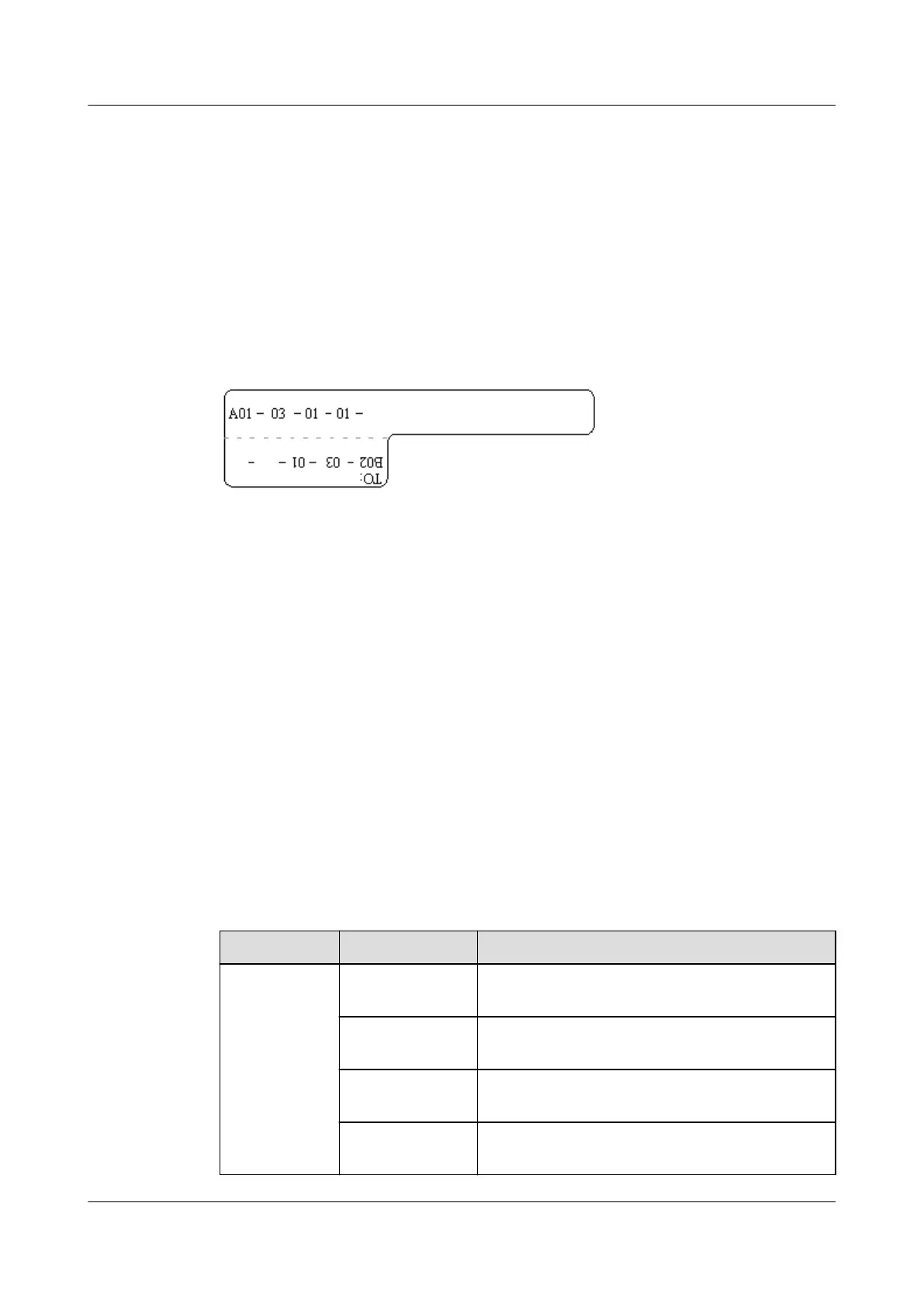

Figure 4-386 shows a sample label on an Ethernet cable.
Figure 4-386 Sample label on an Ethernet cable
Meaning of the label in Figure 4-386:
● "A01-03-01-01" indicates that one end of the network cable is connected to
network interface 01 in slot 01, chassis 03 of the cabinet in row A, column 01
in the equipment room.
● "B02-03-01" indicates that another end of the network cable is connected to
network interface 01 in chassis 03 of the cabinet on row B, column 02 in the
equipment room. No slot number is given.
4.2.12.4.4 Engineering Labels for User Cables
Attach labels to both ends of a user cable to indicate the locations of the cable on
the device and main distribution frame (MDF).
Meaning of the Engineering Labels for User Cables
Table 4-87 shows the contents of the labels.
Table 4-87 Contents of the engineering labels for user cables
Content
Meaning Example
MN-B-C-D MN: cabinet
number
For example, A01 is the rst cabinet in row A.
B: frame
number
Numbered in the bottom-up order with two
digits, for example, 03.
C: physical slot
number
Numbered with two digits in top-down and
left-right order. For example, 01.
D: cable
number
Numbered with two digits in top-down and
left-right order. For example, 01.
