– Do not touch the core conductors of cables with your hands. Terminate
exposed conductors in a timely way after stripping o insulation so that
the surface of the conductors does not become oxidized.
● Take the following precautions when crimping and connecting cables or
connectors:
– The terminals and conductors should be connected tightly after they are
crimped. They should not be moved or turned.
– Cut all the exposed copper wires.
– Try to avoid a second crimping of sleeves.
– Keep all the conductors clean and aligned.
The connectors, cables, and tools provided by dierent vendors may be dierent. The
gures in this document are for your reference only.
4.2.12.2.2 Assembling Power Cables
Assembling the OT Terminal and Power Cable
Background

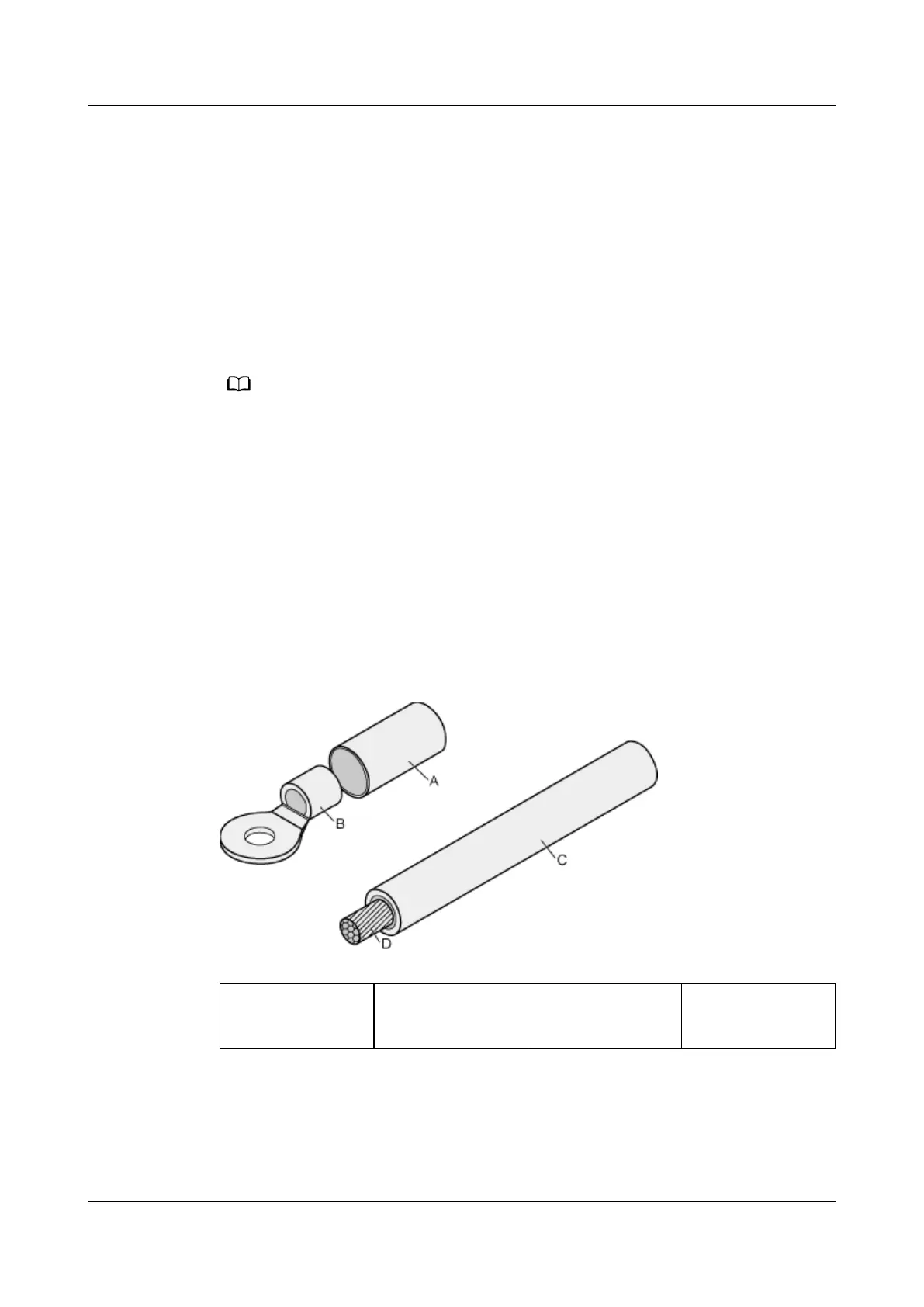

Figure 4-286 shows the components of an OT terminal and a power cable.
Figure 4-286 the components of an OT terminal and a power cable
A. Heat shrink
tubing
B. Bare crimping
terminal
C. Insulation D. Conductor
Procedure
1. Based on the cross-sectional area of the cable conductor, strip a length of
insulation coating C to expose the conductor D of length L1, as shown in
Figure 4-287. The recommended values of L1 are listed in Table 4-69.
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 652
