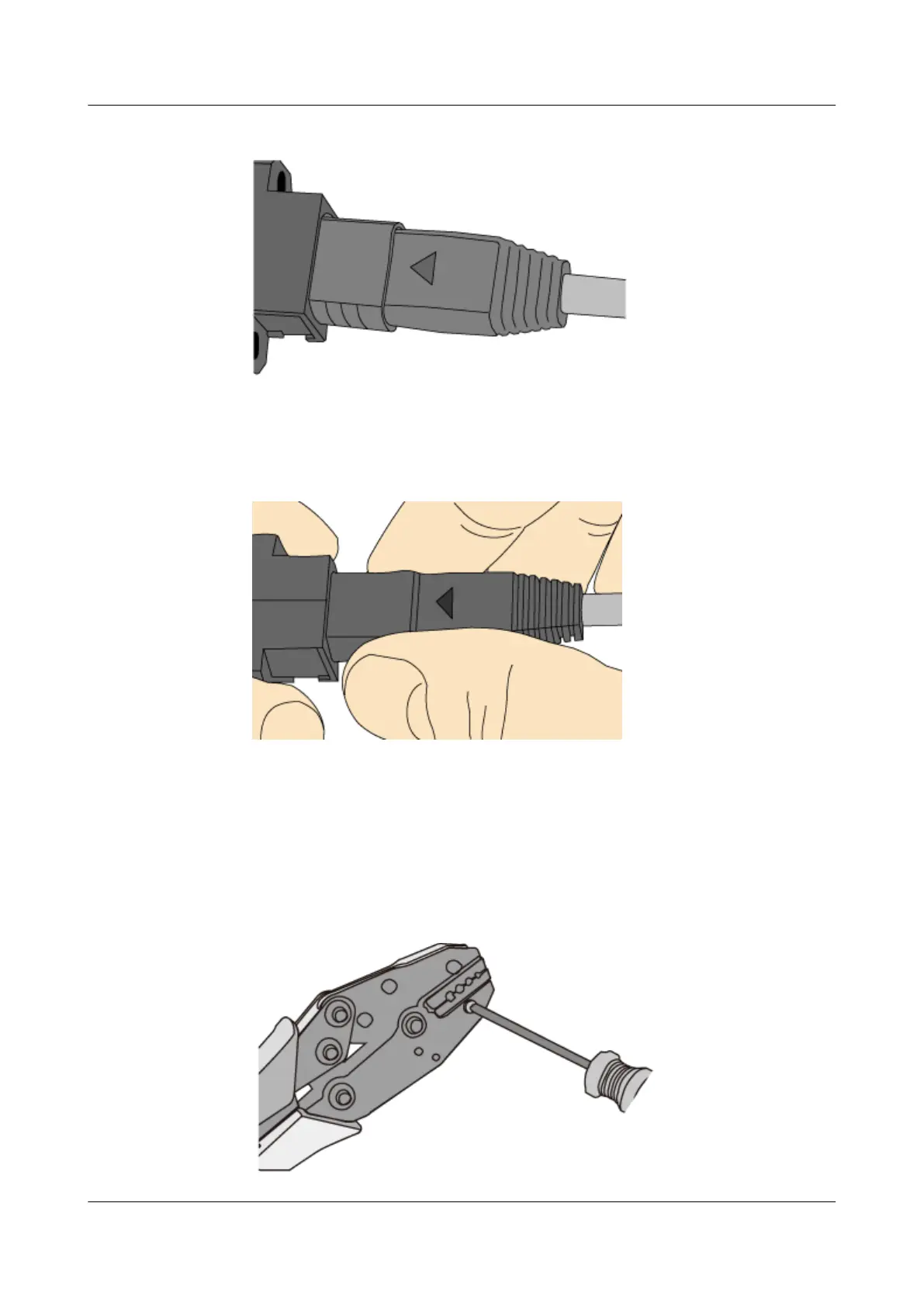

Figure 4-160 Installed MPO ber connector
4. To disassemble an MPO ber connector, hold the shell labeled "PULL" and
remove the male connector, as shown in Figure 4-161.
Figure 4-161 Disassembling an MPO ber connector
4.1.12.1.7 Replacing the Mold of the Crimping Tool
Procedure
1. Hold the handles of a pair of COAX crimping tools. Loosen the two fastening
screws counterclockwise, as shown in Figure 4-162.
Figure 4-162 Loosening two fastening screws
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 486
