CHAPTER 14
Installing the SRX550 High Memory
Services Gateway
•
Installing the SRX550 High Memory Services Gateway in a Rack on page 97
•
Installing an AC Power Supply on the SRX550 High Memory Services
Gateway on page 99
•
Installing a DC Power Supply on the SRX550 High Memory Services Gateway on page 100
Installing the SRX550 High Memory Services Gateway in a Rack
You can front-mount the SRX550 High Memory Services Gateway in a rack. Many types
of racks are acceptable, including four-post (telco) racks, enclosed cabinets, and
open-frame racks.
NOTE: If you are installing multiple devices in one rack, install the lowest one
first and proceed upward in the rack.
To install the services gateway in a rack:
1. Position a mounting bracket on each side of the chassis.
2. Use a Phillips (+) screwdriver, number 2 to install the screws that secure the mounting
brackets to the chassis. Use either the front mount position, as shown in
Figure 17 on page 97, or the center mount position as shown in Figure 18 on page 98.

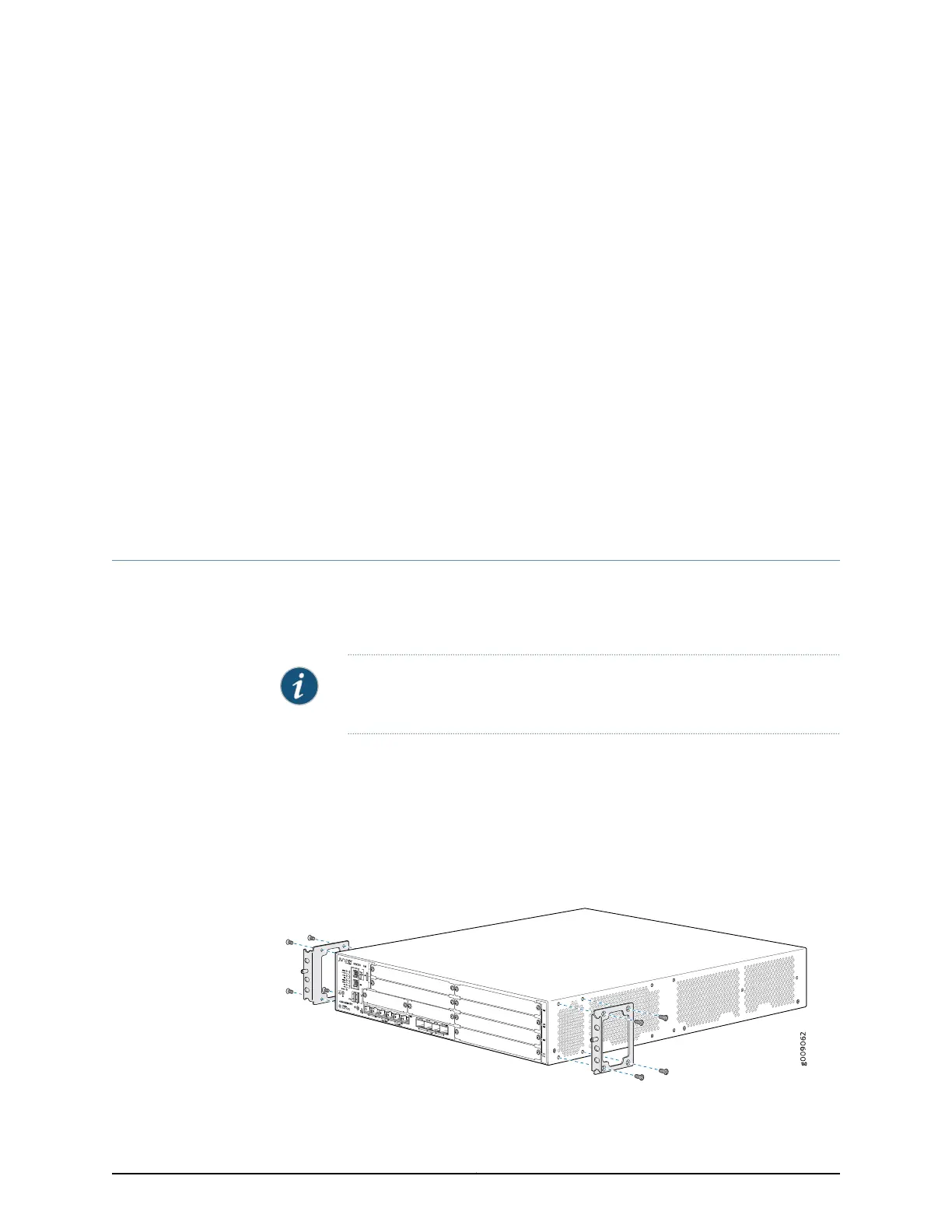

Figure 17: Installing the Rack Mount Brackets (Front Mount Position)
97Copyright © 2016, Juniper Networks, Inc.
To Next Page
