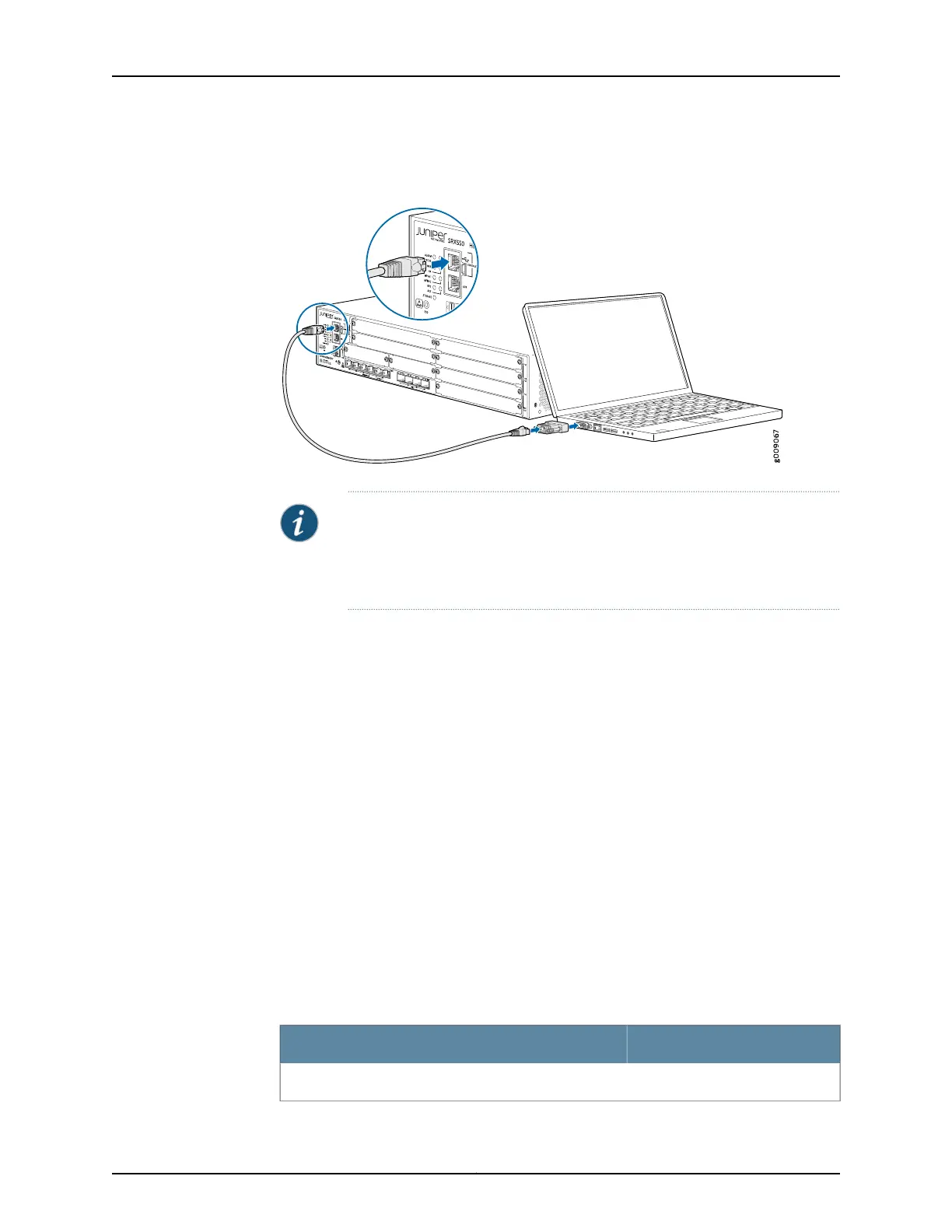

Figure 28: Connecting to the Console Port on the SRX550 High Memory
Services Gateway
NOTE: Figure 28 on page 132 shows a connection to a local management
device. A remote connection to the services gateway through a modem
requires the cable and connector shown (RJ-45 to a DB-9 serial port adapter),
along with an adapter for your modem, which you must purchase separately.
To connect to the CLI using a local management device through the console port on the
services gateway:
1. Turn off power to the services gateway.
2. Turn off power to the management device (such as a desktop or laptop computer)
that you are using to access the CLI.
3. Plug one end of the Ethernet cable into the RJ-45 to DB-9 serial port adapter (see
Figure 28 on page 132).
4. Plug the RJ-45 to DB-9 serial port adapter into the serial port on the management
device (see Figure 28 on page 132).
5. Connect the other end of the Ethernet cable to the console port on the services
gateway (see Figure 28 on page 132).
6. Turn on the power to the management device.
7. Start your asynchronous terminal emulation application (such as Microsoft Windows
HyperTerminal), and select the appropriate COM port to use (for example, COM1).
8. Configure the port settings, as shown in Table 57 on page 132.
Table 57: Port Settings
ValuePort Settings
9600Bits per second
Copyright © 2016, Juniper Networks, Inc.132
SRX550 High Memory Services Gateway Hardware Guide
