Table 19: Juniper Networks Serial Cables (continued)
Connector
TypeLengthInterface TypeProduct Number
Female3.04 m (10 ft)RS232 cable (DCE)JX-CBL-RS232-DCE
Male3.04 m (10 ft)RS232 cable (DTE)JX-CBL-RS232-DTE
Female3.04 m (10 ft)RS449 cable (DCE)JX-CBL-RS449-DCE
Male3.04 m (10 ft)RS449 cable (DTE)JX-CBL-RS449-DTE
Female3.04 m (10 ft)V.35 cable (DCE)JX-CBL-V35-DCE
Male3.04 m (10 ft)V.35 cable (DTE)JX-CBL-V35-DTE
Female3.04 m (10 ft)X.21 cable (DCE)JX-CBL-X21-DCE
Male3.04 m (10 ft)X.21 cable (DTE)JX-CBL-X21-DTE
Related
Documentation
SRX550 High Memory Services Gateway Gigabit-Backplane Physical Interface Modules
Overview on page 23
•
• 8-Port Gigabit Ethernet SFP XPIM on page 25
• 16-Port Gigabit Ethernet XPIM (PoE) on page 29
• SRX550 High Memory Services Gateway Mini-Physical Interface Modules Overview
on page 31
• 1-Port T1/E1 Mini-Physical (SRX-MP-1T1E1-R) Interface Module on page 34
1-Port T1/E1 Mini-Physical (SRX-MP-1T1E1-R) Interface Module
The 1-Port T1/E1 Mini-Physical Interface Module (Mini-PIM) provides the physical
connection to T1 or E1 network media types and also performs T1 or E1 framing and
line-speed signaling.

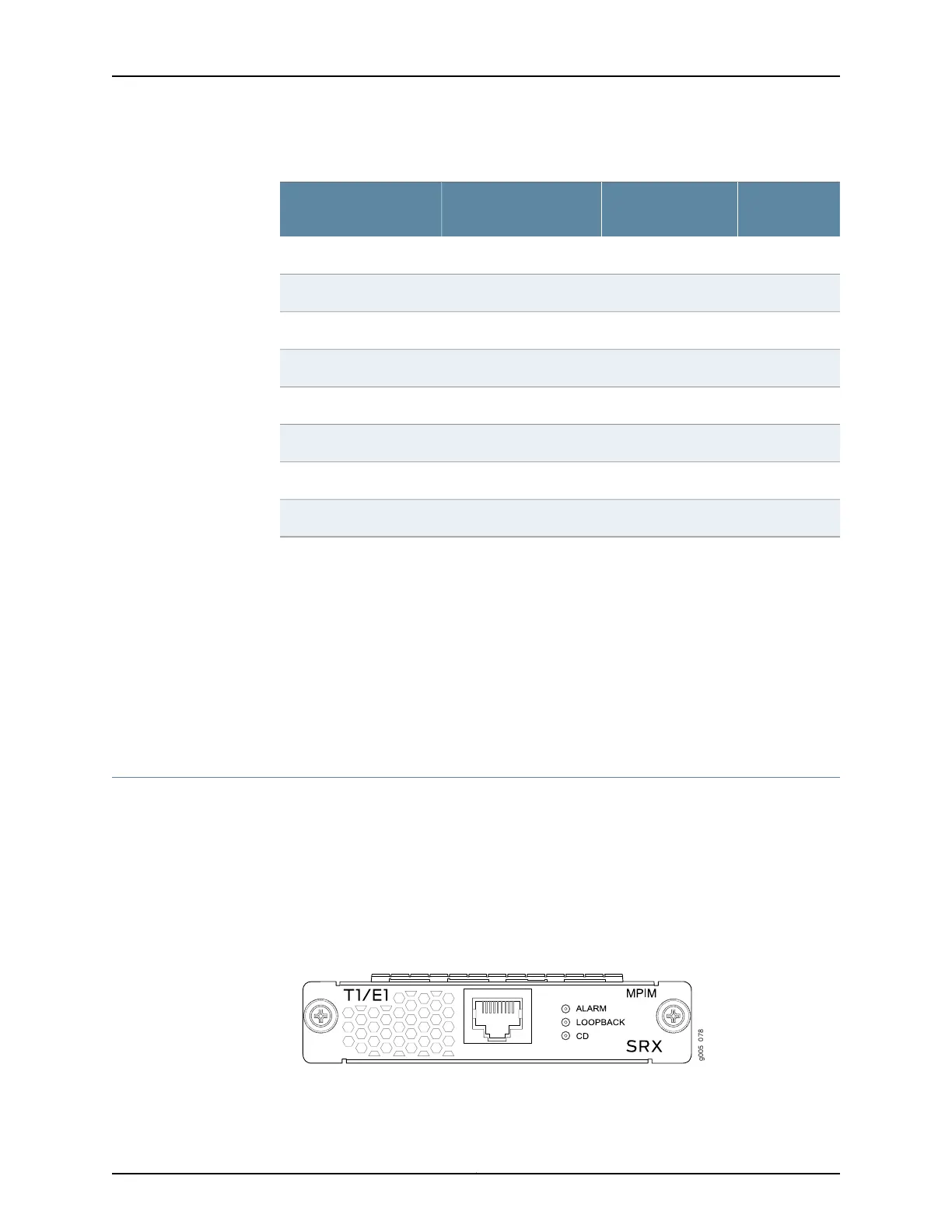

Figure12 on page 34 shows the front panel of the 1-Port T1/E1 Mini-PIM (SRX-MP-1T1E1-R).
Figure 12: 1-Port T1/E1 Mini-Physical Interface Module (SRX-MP-1T1E1-R)
Front Panel
g005 0 78
Copyright © 2016, Juniper Networks, Inc.34
SRX550 High Memory Services Gateway Hardware Guide
