Table 7: SRX550 High Memory Services Gateway Front Panel LEDs (continued)
DescriptionLED ColorLED StateLED Label
The redundant power supply is operating normally.GreenOn SteadilyRPS
One of the following conditions has occurred:
•
The primary power supply has failed, and the device is being powered by the
redundant power supply.
•
The redundant power supply has been installed, but is not connected to a
power source.
Red
The redundant power supply is not installed.UnlitOff
NOTE: The ACE LED is not functional.ACE
The services gateway is transferring data to or from the optional storage device.GreenBlinkingSTORAGE
The optional storage device is installed but no data is being transferred to or from
it.
GreenOn Steadily
The optional storage device is not installed.UnlitOff
Related
Documentation
SRX550 High Memory Services Gateway Front Panel on page 14•
• SRX550 High Memory Services Gateway Chassis on page 13
• SRX550 High Memory Services Gateway Back Panel on page 19
SRX550 High Memory Services Gateway Back Panel

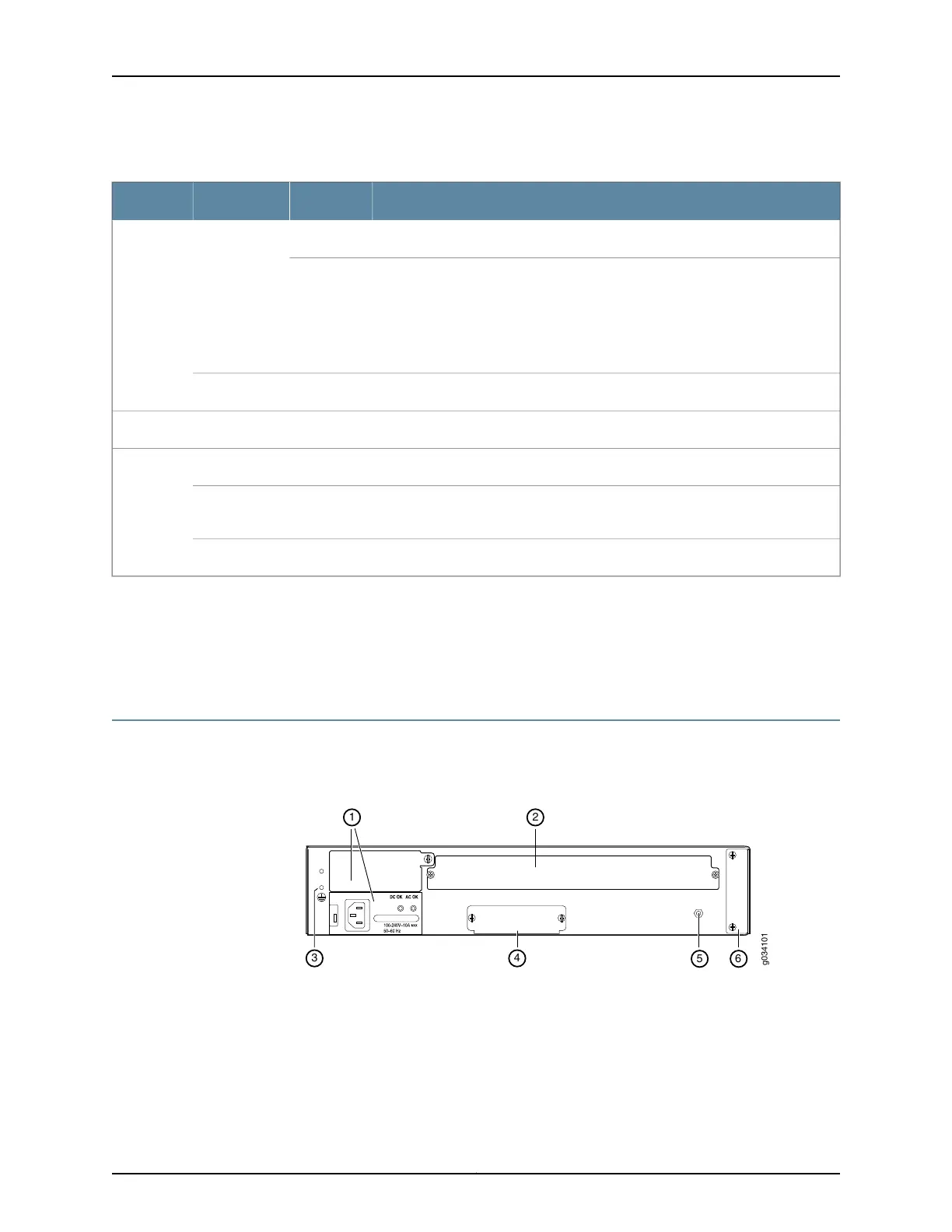

Figure 5 on page 19 shows the back panel of the SRX550 High Memory Services Gateway.
Figure 5: SRX550 High Memory Services Gateway Back Panel
Table 8 on page 20 describes the components on the back panel of the SRX550 High
Memory Services Gateway with reference to Figure 5 on page 19.
19Copyright © 2016, Juniper Networks, Inc.
Chapter 2: Chassis Description
