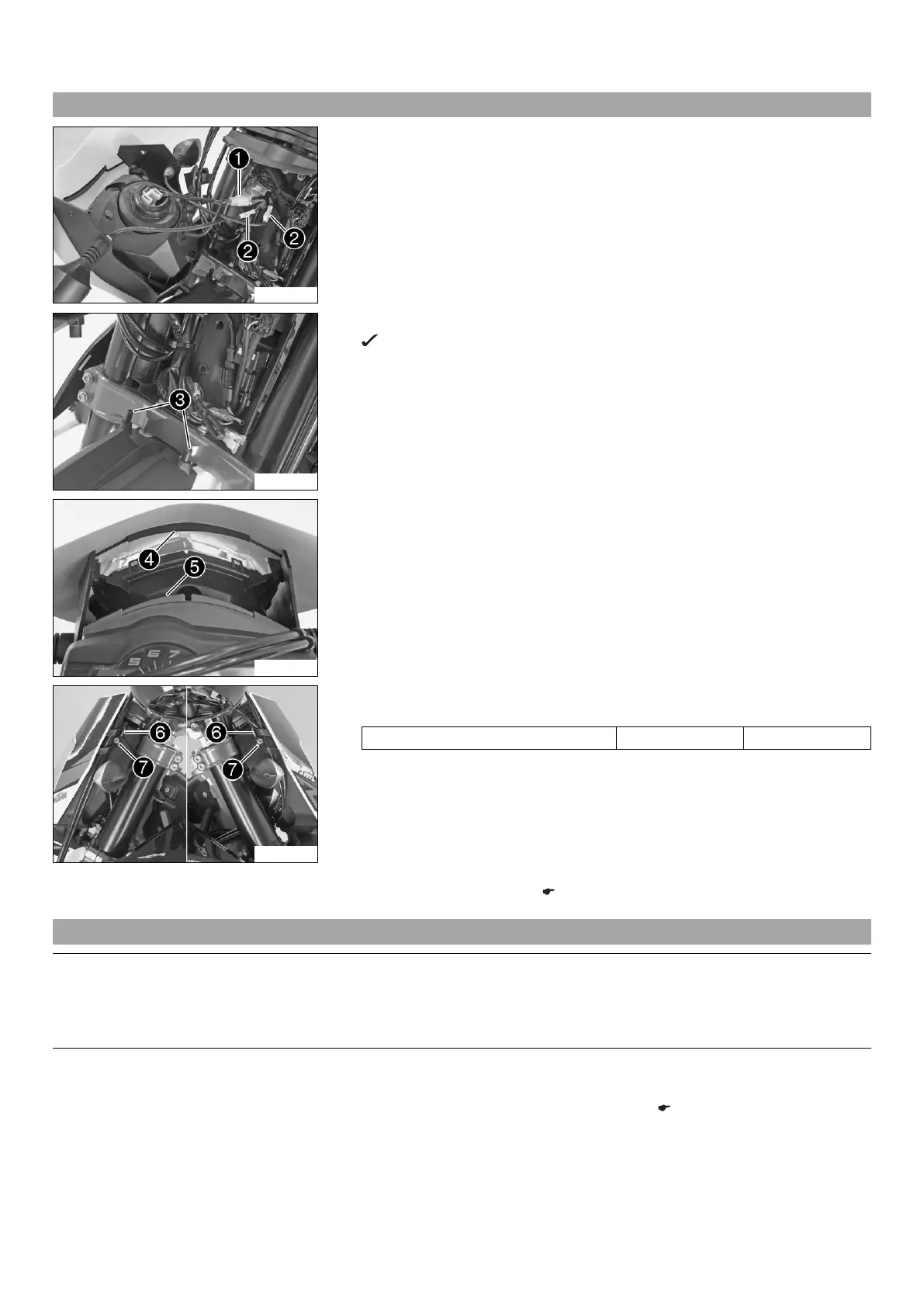

15 LIGHTING SYSTEM, INSTRUMENTS 102
15.5 Installing the headlight mask with the headlight
102026-11
Main work
–
Connect the connectors of headlight
and turn signal lights
.
– Check lighting function.
102027-10
– Remove the cloth from the fender and position the headlight mask.
Holding lugs
reach into the headlight mask.
102028-10
–
Position groove
on counterpiece
.
102025-11
–
Position brake line guides
. Mount and tighten screws
.
Guideline
Screw, headlight mask M5 5 Nm (3.7 lbf ft)
Finishing work
– Check the headlight setting. ( p. 101)
15.6 Changing the parking light bulb
Note
Damage to reflector Reduced brightness.
– Grease on the lamp will evaporate due to the heat and be deposited on the reflector. Clean the lamp and keep it free of grease
before mounting.
Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the headlight mask with the headlight. ( p. 101)
