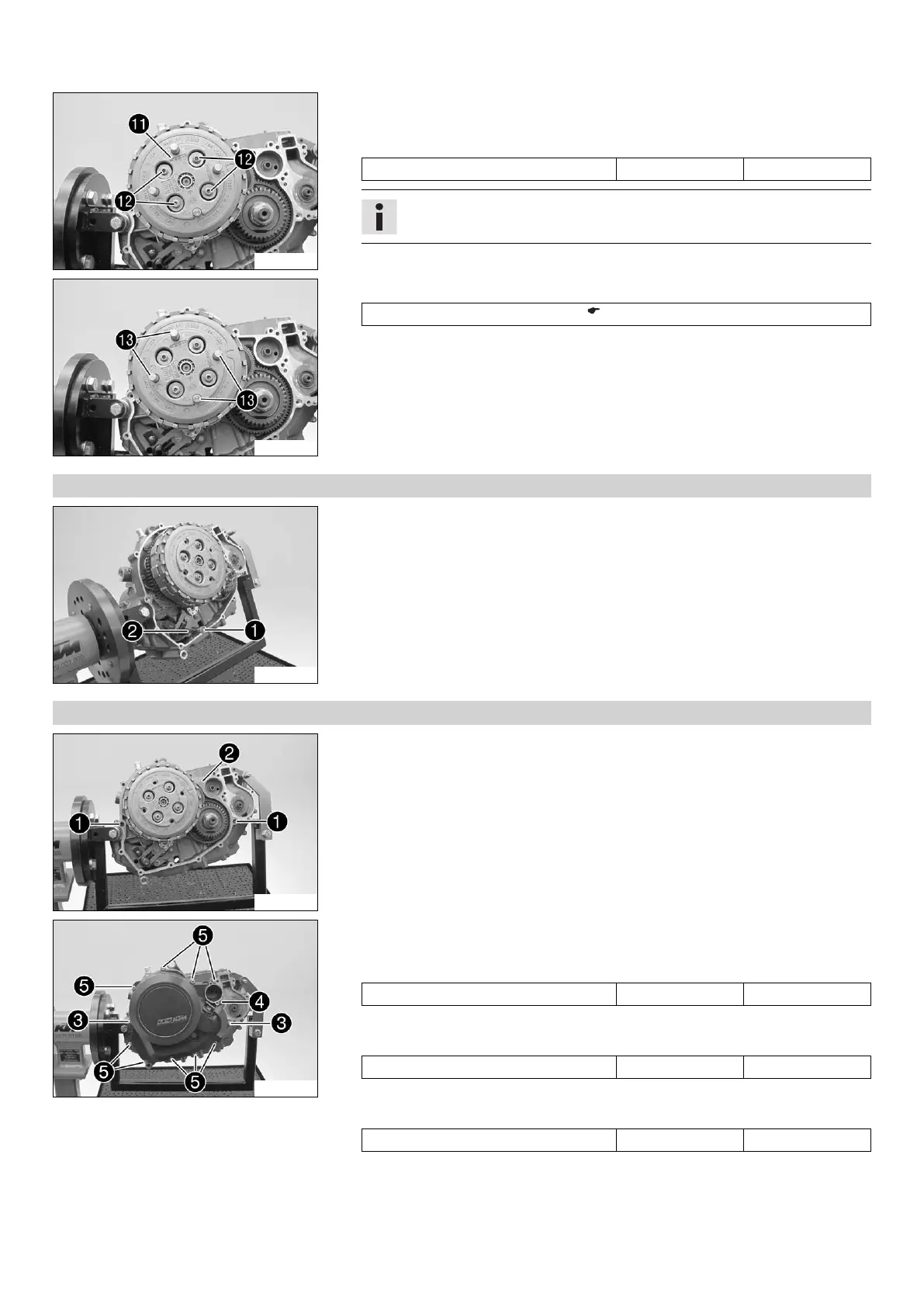

16 ENGINE 161
305577-11
–
Position pressure cap

.
–
Mount and tighten screws

with the spring retainers and clutch springs.
Guideline
Screw, clutch spring M5x25 6 Nm (4.4 lbf ft)
Info
Ensure that all clutch springs have a blue color coding.
305576-11
–
Remove special tool

.
Assembly screws (75029033000) ( p. 233)
16.5.11 Installing the spacer and spring
305575-10
–
Position spacer

and spring

.
16.5.12 Installing the clutch cover
305574-11
–
Mount dowels

and position the clutch cover gasket

.
305587-10
– Position the clutch cover.
–
Mount screws

but do not tighten yet.
Guideline
Screw, clutch cover M6x30 10 Nm (7.4 lbf ft)
–
Mount screw

but do not tighten it yet.
Guideline
Screw, clutch cover M6x35 10 Nm (7.4 lbf ft)
–
Mount screws

and tighten all screws in a crisscross pattern.
Guideline
Screw, clutch cover M6x25 10 Nm (7.4 lbf ft)
