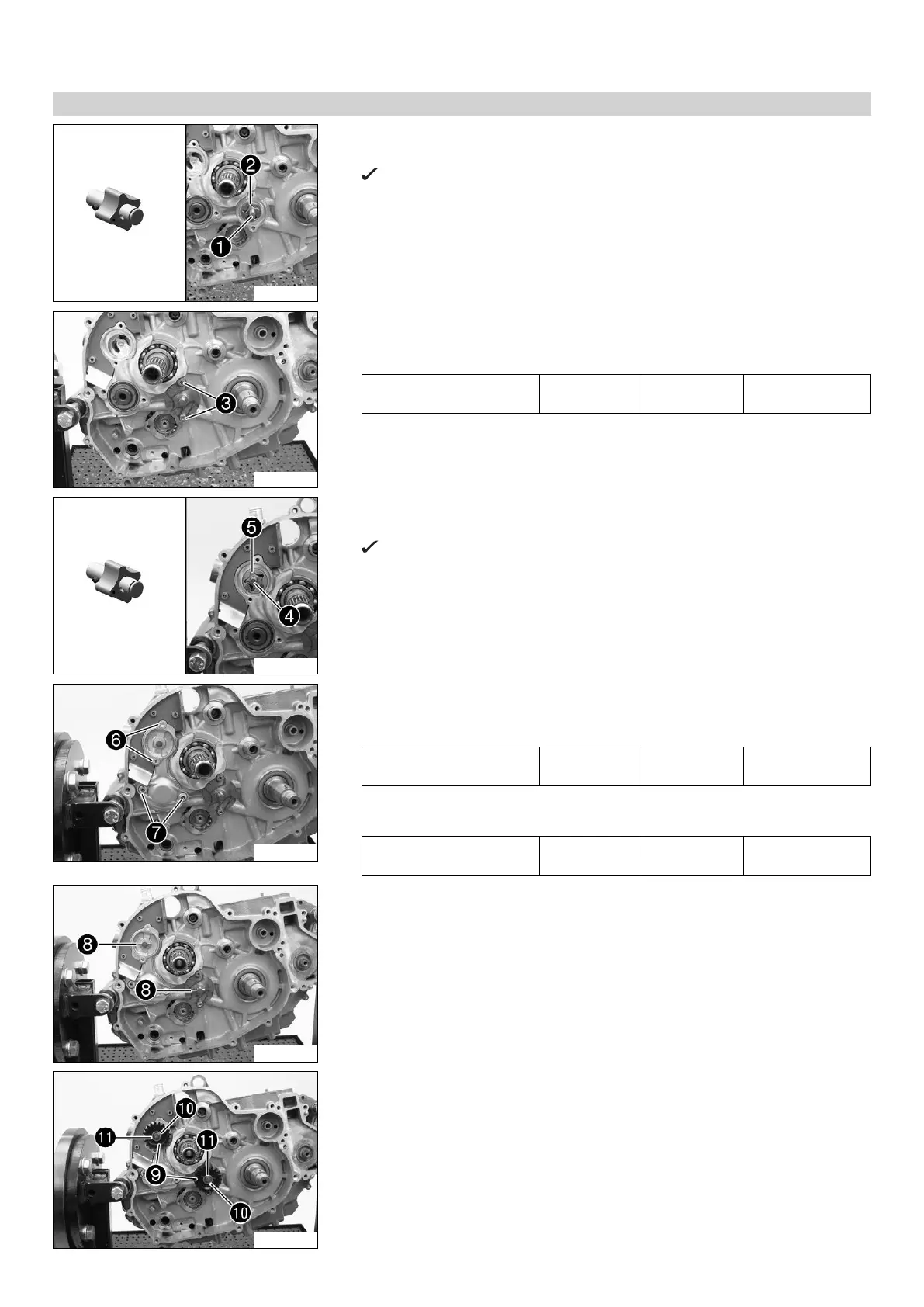

16 ENGINE 157
16.5.4 Installing the oil pumps
305630-10
– Mount the pin and internal rotor on the oil pump shaft.
– Position the external rotor in the engine case.
The marking is not visible after mounting.
–
Mount the oil pump shaft

with internal rotor

.
– Oil the parts.
305628-11
– Position the oil pump cover.
–
Mount and tighten screws

.
Guideline
Screw, oil pump cover M5 6 Nm
(4.4 lbf ft)
Loctite
®
243™
305631-10
– Mount the pin and internal rotor on the oil pump shaft.
– Position the external rotor in the engine case.
The marking is not visible after mounting.
–
Mount the oil pump shaft

with internal rotor

.
– Oil the parts.
305626-11
– Position the oil pump cover.
–
Mount and tighten screws

.
Guideline
Screw, oil pump cover, top M5 6 Nm
(4.4 lbf ft)
Loctite
®
243™
–
Mount and tighten screws

.
Guideline
Screw, oil pump cover,
bottom
M6 10 Nm
(7.4 lbf ft)
Loctite
®
243™
305625-11
–
Mount washers and pins

.
305624-11
–
Mount the oil pump gear wheels

, washers

and lock washers

.
