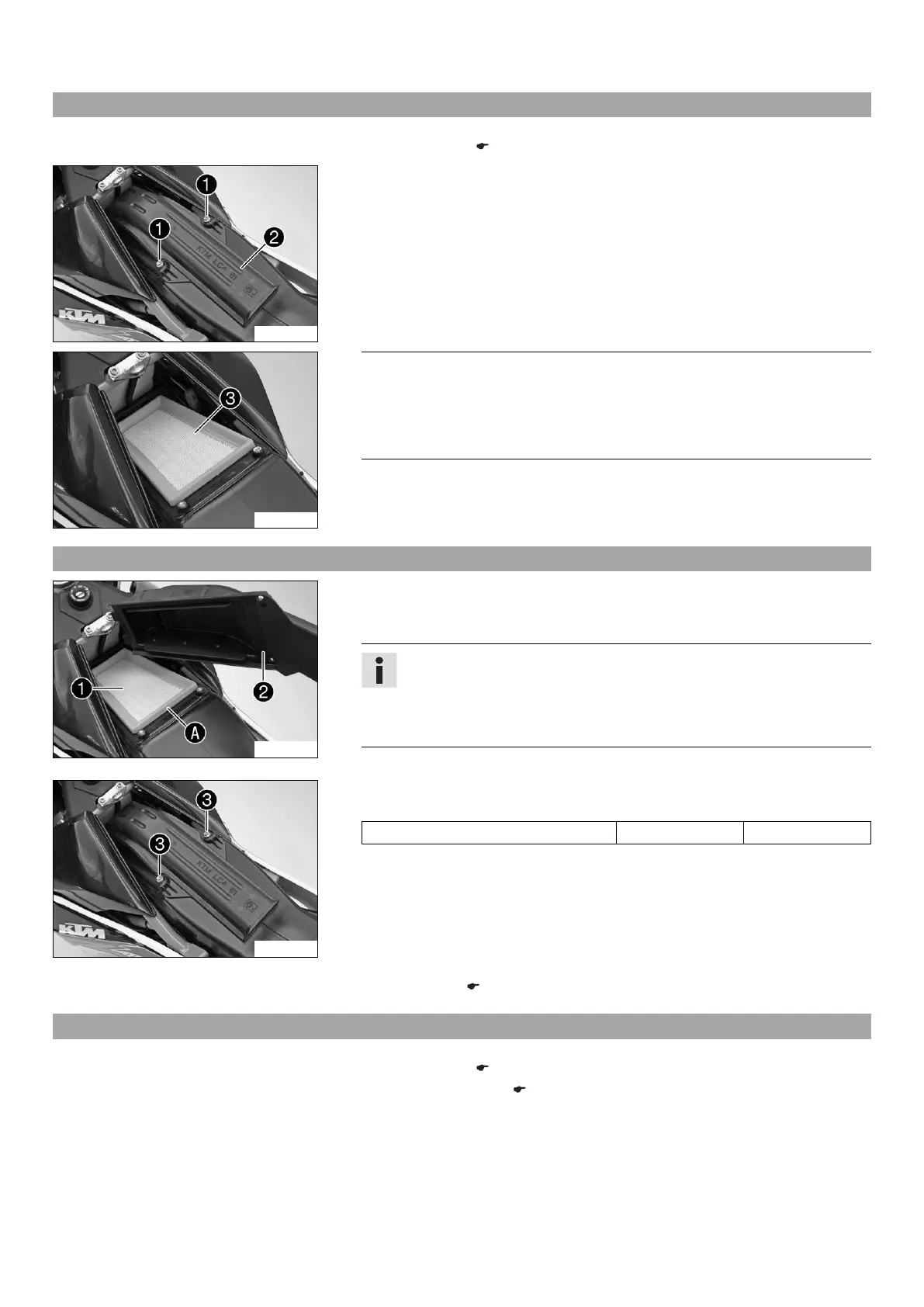

10 AIR FILTER 57
10.1 Removing the air filter
Preparatory work
– Remove the seat. ( p. 61)
601882-10
Main work
–
Remove screws
. Take off air filter box top
.
601880-10
Note
Engine failure Unfiltered intake air has a negative effect on the service life of the
engine.
– Never operate the vehicle without an air filter as dust and dirt will enter the
engine and lead to increased wear.
–
Remove air filter
.
10.2 Installing the air filter
601881-10
Main work
– Clean the air filter box.
–
Mount air filter
.
Info
The air filter must lie flush against the air filter box along the entire sealing
surface
.
If the air filter is not correctly mounted, dust and dirt can enter the engine
and cause damage.
–
Hook air filter box top
into the front of the air filter box and swing down.
601882-11
–
Mount and tighten screws
.
Guideline
Screw, air filter box top M6 2 Nm (1.5 lbf ft)
Finishing work
– Mount the seat. ( p. 62)
10.3 Removing the air filter box
Preparatory work
– Remove the seat. ( p. 61)
– Take off the side cover. ( p. 62)
