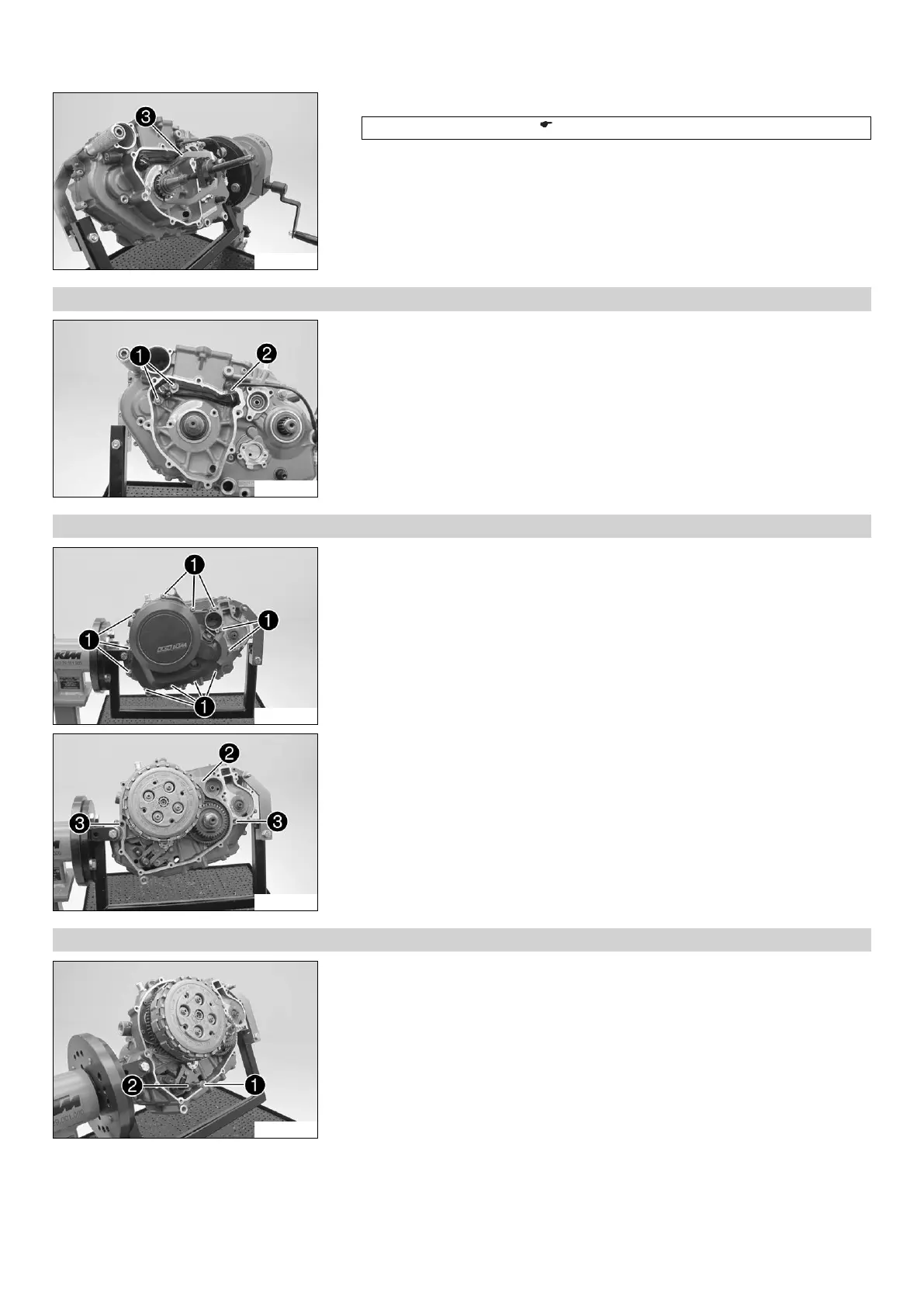

16 ENGINE 118

305571-10

–

Pull off the timing chain sprocket with special tool



Extractor (59029033000) ( p. 230)

16.3.20 Removing the ignition pulse generator

305572-10

–

Remove screws



–

Pull cable sleeve



out of the engine case.

– Remove the ignition pulse generator.

16.3.21 Removing the clutch cover

305573-10

–

Remove screws



– Take off the clutch cover.

305574-10

–

Remove the clutch cover gasket



–

Take off dowels



16.3.22 Removing the spacer and spring

305575-10

–

Remove spacer



and spring


