8 SHOCK ABSORBER, SWINGARM 45

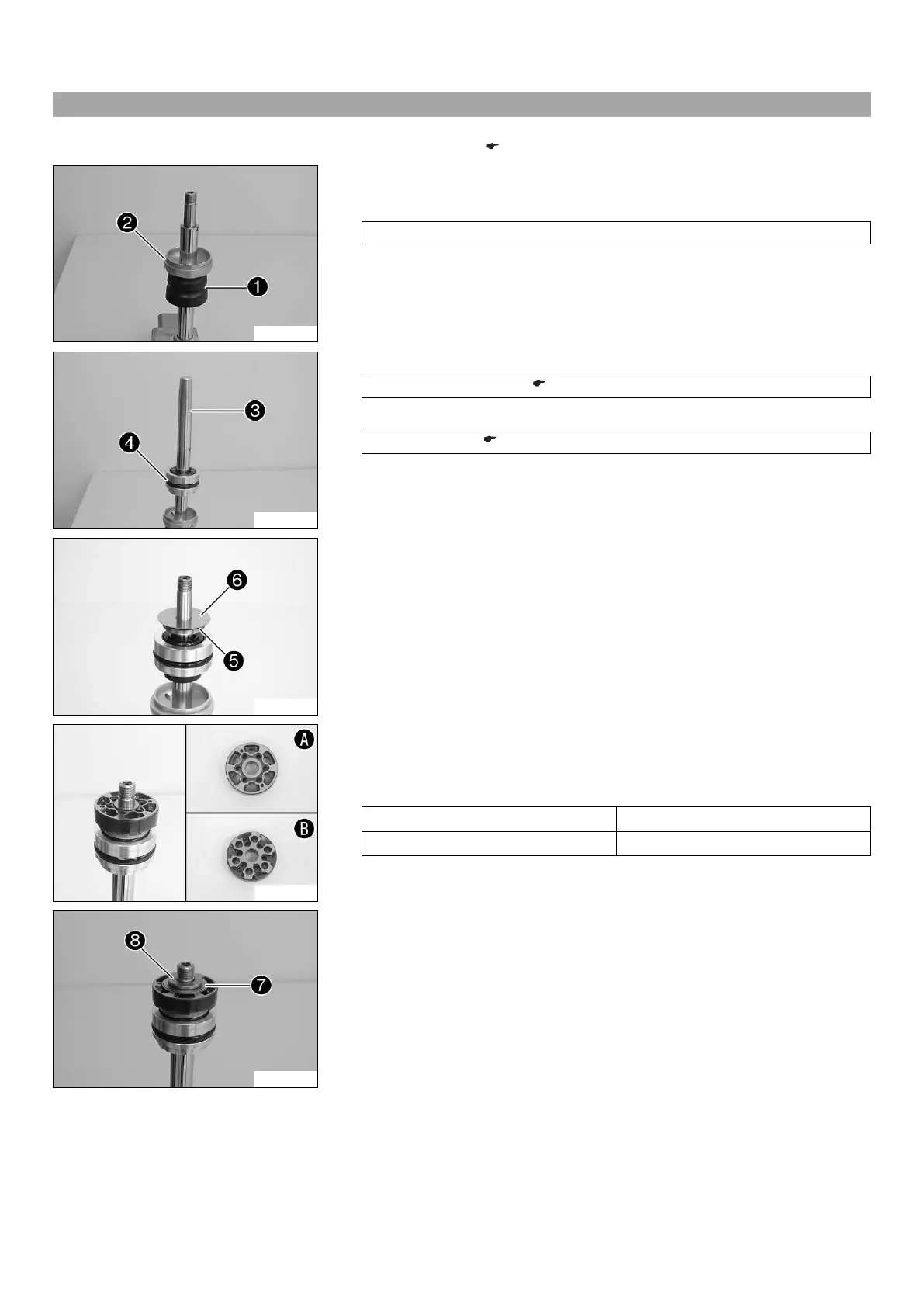

8.18 Assembling the piston rod
Preparatory work
– Check the damper. ( p. 42)
300543-11
Main work
– Clamp the piston rod with the heim joint in a vise.
Guideline
Use soft jaws.
–
Mount rubber buffer
and locking cap
.
300548-10
–
Position special tool
on the piston rod.
Mounting sleeve (T1515) ( p. 240)
–
Grease the seal ring and push seal ring retainer
on to the piston rod.
Lubricant (T625) ( p. 226)
– Remove the special tool.
200572-11
–
Mount supporting plate
with the rounded side facing downward.
–
Mount the compression shim stack
with the smaller shims facing downward.
201270-10
– Sand both sides of the piston on a surface plate using 1200-grit sandpaper.
– Clean the piston.
– Assemble the piston.
Guideline
View
Piston from above
View
Piston from below
300541-11
–
Mount the rebound shim stack
with the smaller shims facing upward.
–
Install supporting plate
.
