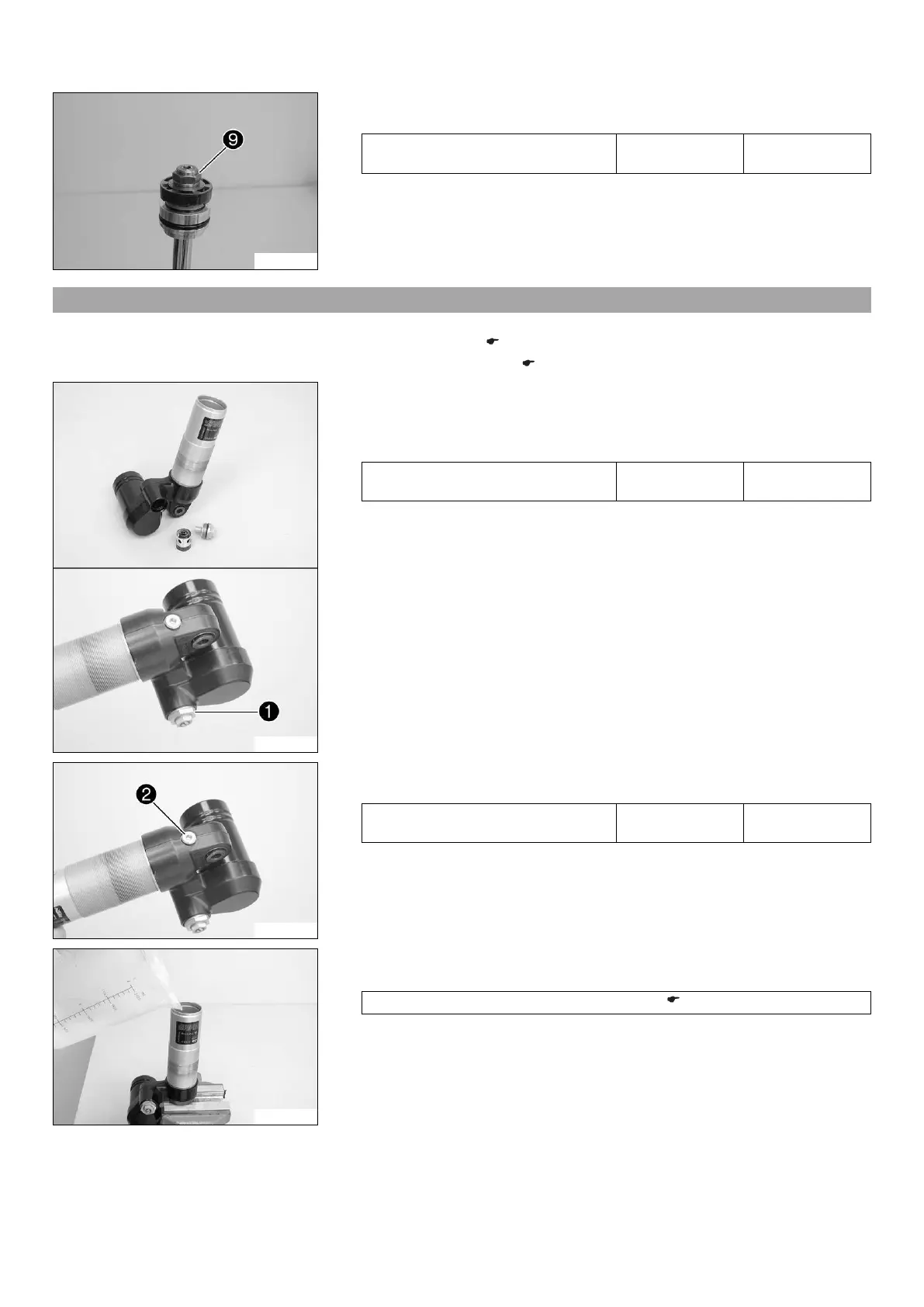

8 SHOCK ABSORBER, SWINGARM 46
300540-11
–
Mount and tighten nut
.
Guideline
Piston rod nut M12x1 40 Nm
(29.5 lbf ft)
8.19 Assembling the damper
Preparatory work
– Check the damper. ( p. 42)
– Assemble the piston rod. ( p. 45)
201279-11
Main work
– Push the spring and sleeve onto the compression adjuster. Mount the piston.
–
Mount and tighten compression adjuster
.
Guideline
Compression adjuster M26x1 30 Nm
(22.1 lbf ft)
201277-11
–
Mount and tighten screw
.
Guideline
Filling port screw M10x1 14 Nm
(10.3 lbf ft)
201288-10
– Clamp the damper in the vise using soft jaws.
– Fill the damper cartridge about half full.
Shock absorber fluid (SAE 2.5) (50180751S1) ( p. 225)
