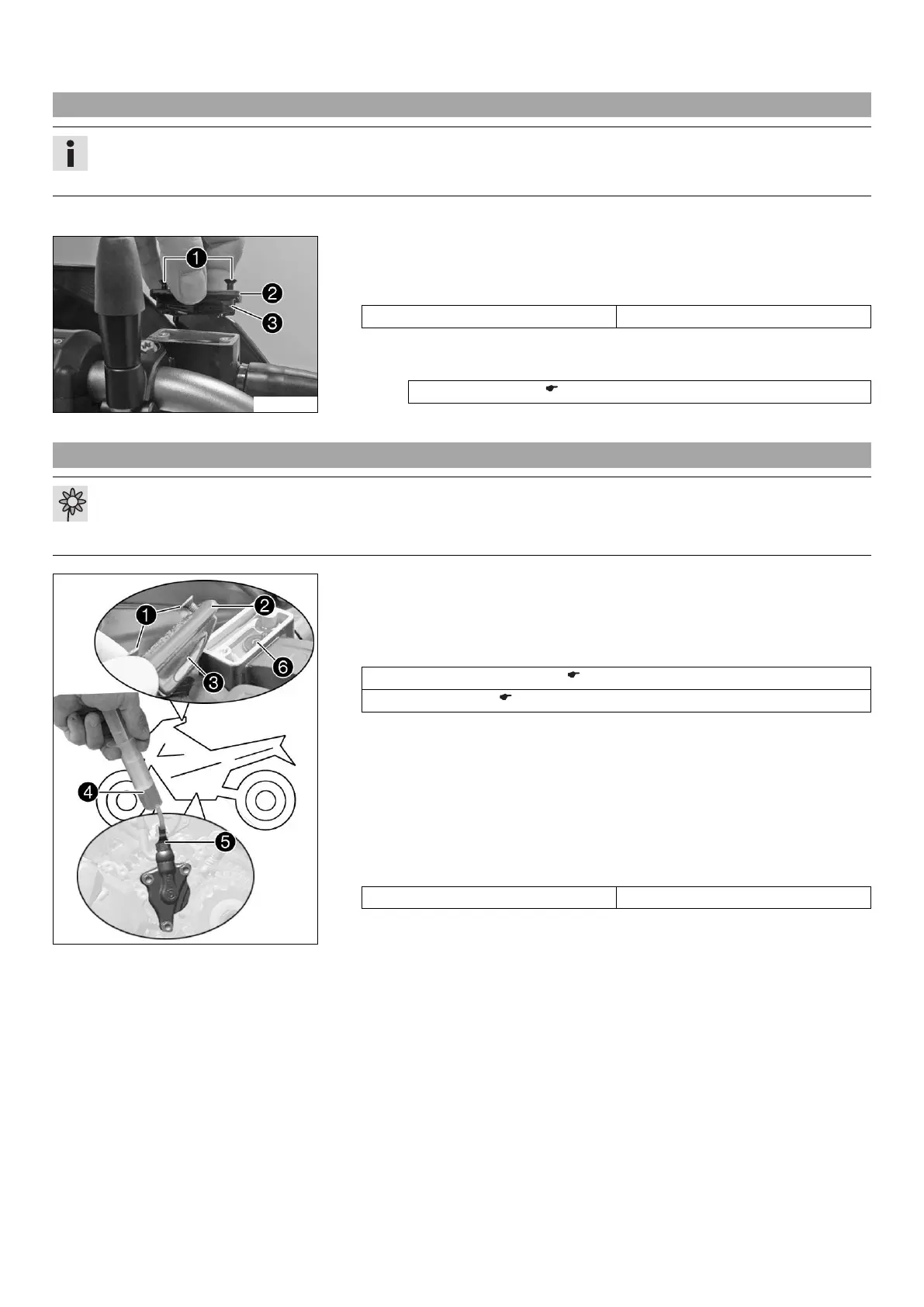

17 CLUTCH 174
17.1 Checking/rectifying the fluid level of the hydraulic clutch
Info
The fluid level rises with increasing wear of the clutch lining disc.
Do not use brake fluid.
– Move the clutch fluid reservoir mounted on the handlebar to a horizontal position.
B01956-10
–
Remove screws
.
–
Remove cover
with membrane
.
– Check the fluid level.
Fluid level under top level of container 4 mm (0.16 in)
» If the level of the coolant does not meet specifications:
– Correct the fluid level of the hydraulic clutch.
Hydraulic fluid (15) ( p. 225)
– Position the cover with the membrane. Mount and tighten the screws.
17.2 Changing the hydraulic clutch fluid
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
202086-10
– Move the clutch fluid reservoir mounted on the handlebar to a horizontal position.
–
Remove screws
.
–
Remove cover
with membrane
.
–
Fill bleeding syringe
with the appropriate hydraulic fluid.
Bleed syringe (50329050000) ( p. 229)
Hydraulic fluid (15) ( p. 225)
–
On the clutch slave cylinder, remove bleeder screw
and mount bleeding
syringe
.
–
Inject the liquid into the system until it escapes from hole
of the master cylin-
der without bubbles.
– To prevent overflow, drain fluid occasionally from the master cylinder reservoir.
– Remove the bleeding syringe. Mount and tighten the bleeder screw.
– Correct the fluid level of the hydraulic clutch.
Guideline
Fluid level below top edge of container 4 mm (0.16 in)
– Position the cover with the membrane. Mount and tighten the screws.
