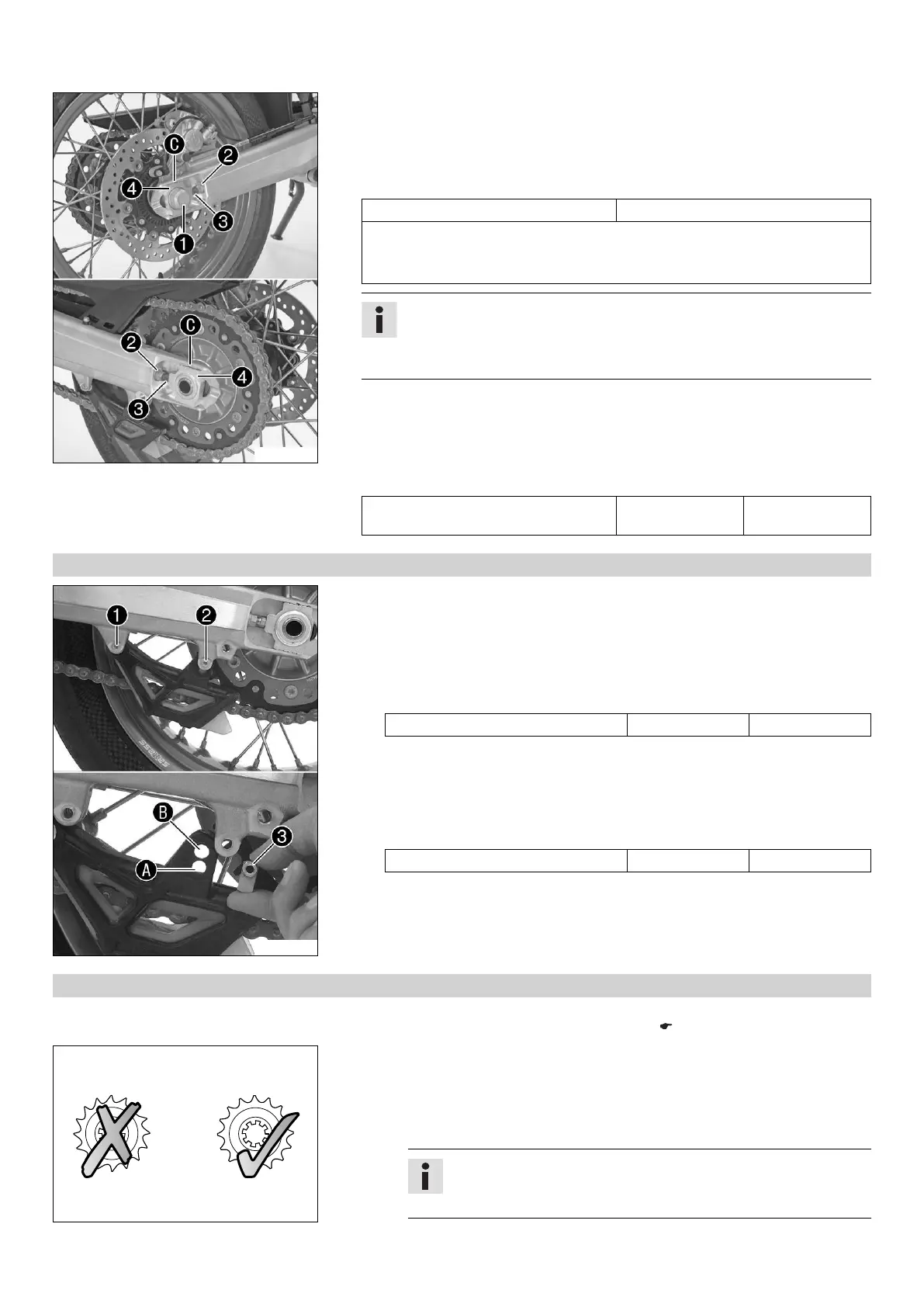

12 WHEELS 78
101989-10
Main work
–
Loosen nut
.
–
Loosen nuts
.
–
Adjust the chain tension by turning adjusting screws
on the left and right.
Guideline
Chain tension 5 mm (0.2 in)
Turn the left and right adjusting screws
so that the markings on the left
and right chain adjusters
are in the same position relative to the reference
marks
. The rear wheel is then correctly aligned.
Info
The upper chain section must be taut.
Chain wear is not always even. Repeat this measurement at different chain
positions.
–
Tighten nuts
.
–
Make sure that the chain adjusters
are installed correctly on adjusting
screws
.
–
Tighten nut
.
Guideline
Nut, rear wheel spindle M25x1.5 90 Nm
(66.4 lbf ft)
12.7.7 Adjusting chain guide
S00080-10
–
Remove screws
and
. Take off the chain guide.
Condition
Number of teeth: ≤ 44 teeth
–
Insert nut
in hole
. Position the chain guide.
–
Mount and tighten screws
and
.
Guideline
Screw, chain guide M6 8 Nm (5.9 lbf ft)
Condition
Number of teeth: ≥ 45 teeth
–
Insert nut
in hole
. Position the chain guide.
–
Mount and tighten screws
and
.
Guideline
Screw, chain guide M6 8 Nm (5.9 lbf ft)
12.7.8 Checking the chain, rear sprocket, engine sprocket, and chain guide
Preparatory work
– Raise the motorcycle with the rear wheel stand. ( p. 10)
100132-10
Main work
– Shift the transmission to neutral.
– Check the rear sprocket and engine sprocket for wear.
» If the rear sprocket and engine sprocket are worn:
– Change the power set.
Info
The engine sprocket, rear sprocket, and chain should always be
replaced together.
