16 ENGINE 152
–
Mount the sixth-gear sliding gear
with the shift groove facing upward.
–
Position special tool
on the transmission shaft.
Mounting tool for lock ring (75029005000) ( p. 233)
–
Position lock ring
on special tool
and push down with sleeve
.
The lock ring engages in the groove of the transmission shaft.
–
Mount stop disk
.
–
Mount needle bearing
and the fourth-gear idler gear
with the collar facing upward.
–
Mount needle bearing
and the third-gear idler gear
with the collar facing downward.
–
Mount stop disk
.
–
Position special tool
on the transmission shaft.
Mounting tool for lock ring (75029005000) ( p. 233)
–
Position lock ring
on special tool
and push down with sleeve
.
The lock ring engages in the groove of the transmission shaft.
–
Mount the fifth-gear sliding gear
with the shift groove facing downward and stop disk
.
–
Mount needle bearing
, first-gear idler gear
with the recess facing downward and stop disk
.
– Finally, check all gear wheels for smooth operation.

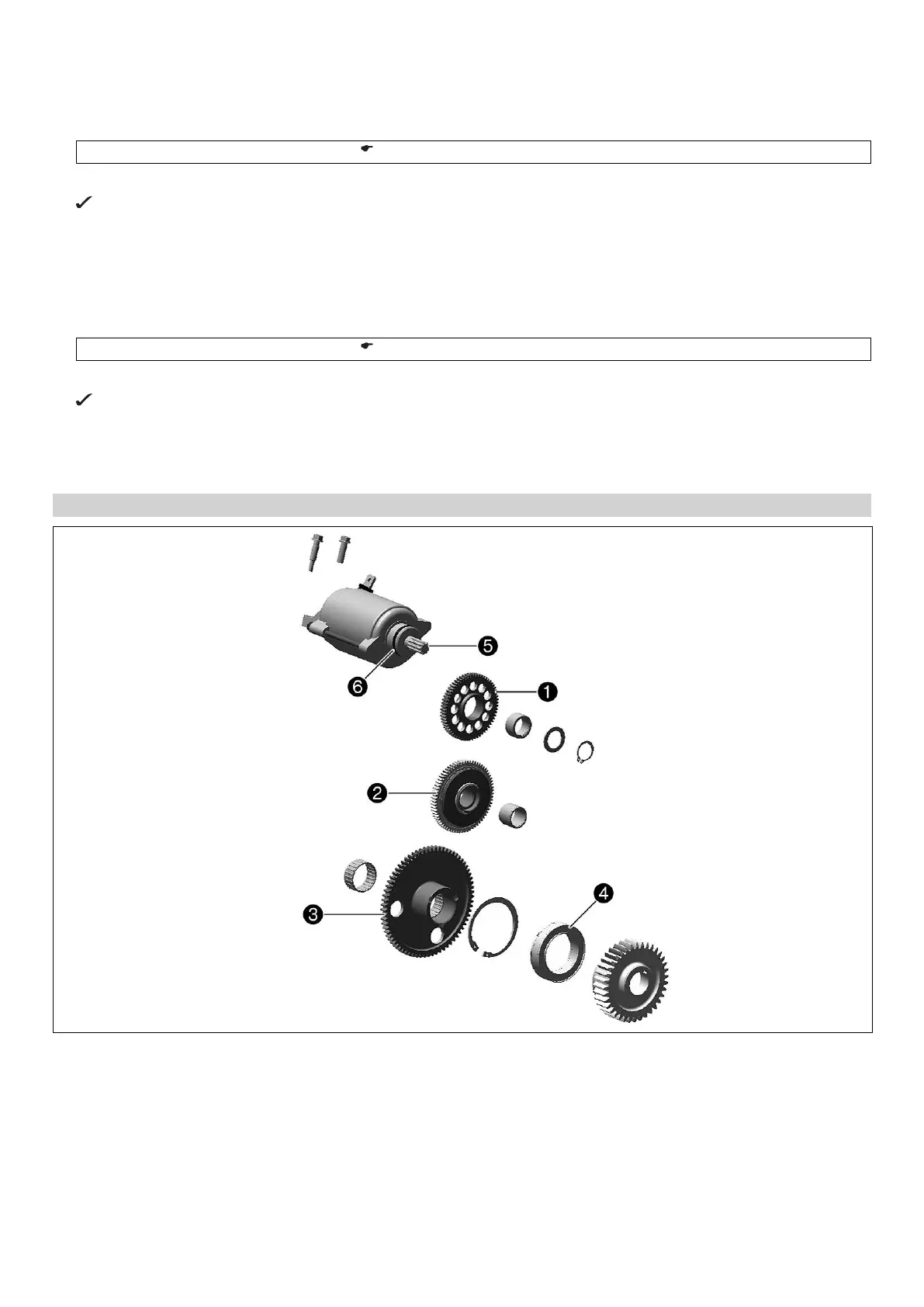

16.4.39 Checking the starter drive
305600-10
–
Check the teeth and seating of the starter idler gear
for damage and wear.
» If there is damage or wear:
– Change the starter idler gear and/or needle bushing.
–
Check the teeth and seating of torque limiter
for damage and wear.
» If there is damage or wear:
– Change the torque limiter and/or needle bearing.
–
Check freewheel gear
and bearing when removed for damage and wear.
» If there is damage or wear:
To Next Page
