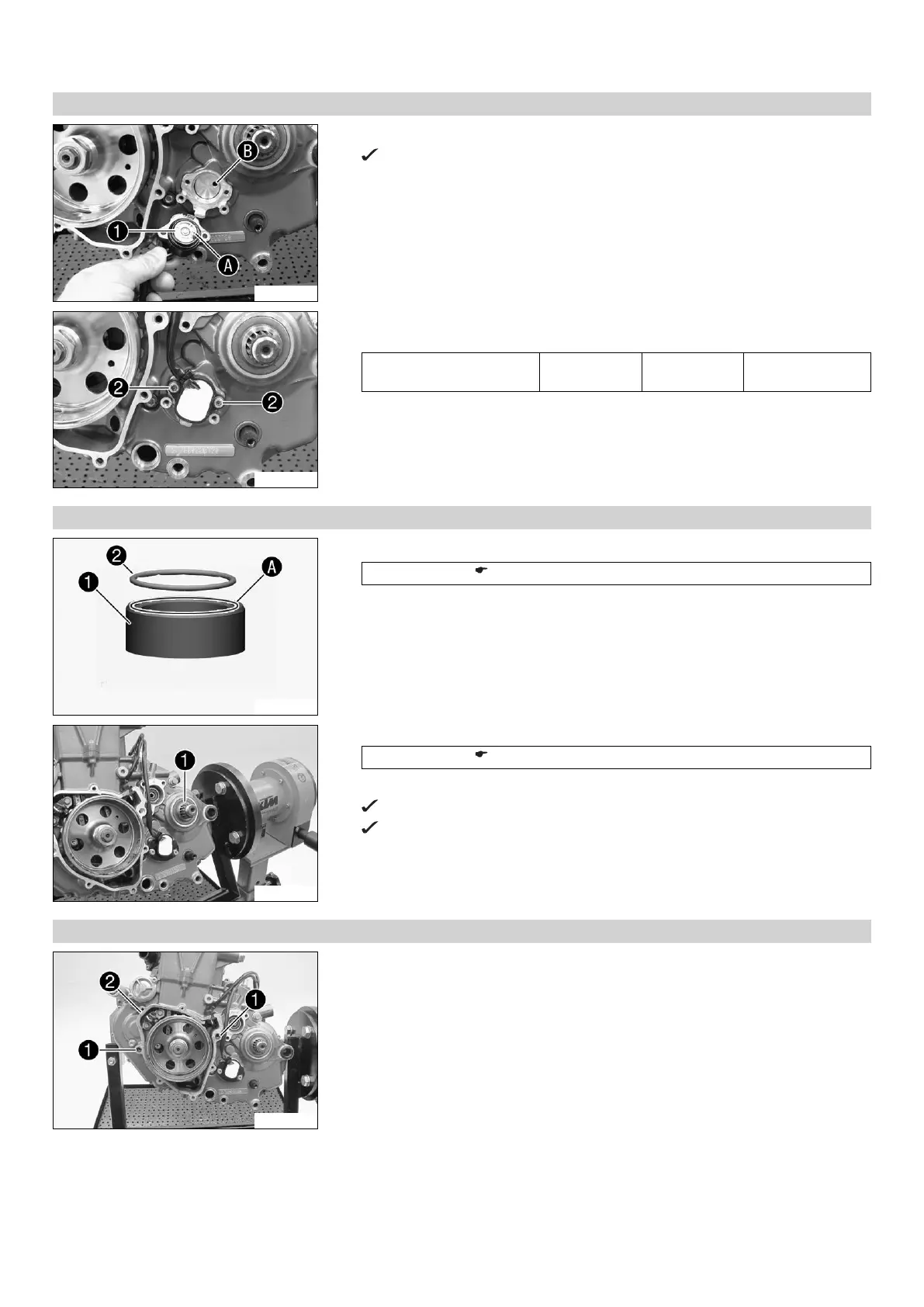

16 ENGINE 171
16.5.29 Installing the gear position sensor
201958-10
–
Mount gear position sensor

with the O-ring.
Pin

engages in drill hole

.
201959-10
–
Mount and tighten screws

with the washers.
Guideline
Screw, gear position sen-
sor
M5x16 5 Nm
(3.7 lbf ft)
Loctite
®
243™
16.5.30 Installing the spacer
302140-10
–
Grease spacer

in area

and O-ring

before mounting.
Long-life grease ( p. 226)
– Position the O-ring in the recess of the spacer.
305521-10
– Grease the shaft seal ring.
Long-life grease ( p. 226)
– Slide the spacer with the O-ring onto the countershaft with a twisting motion.
The recess with the O-ring faces inward.
The shaft seal ring rests against the spacer along its entire circumference.
16.5.31 Installing the alternator cover
305520-11
– Apply sealing compound lightly in the area of the cable sleeve.
–
Mount dowel

and position the alternator cover gasket

.
