16 ENGINE 147

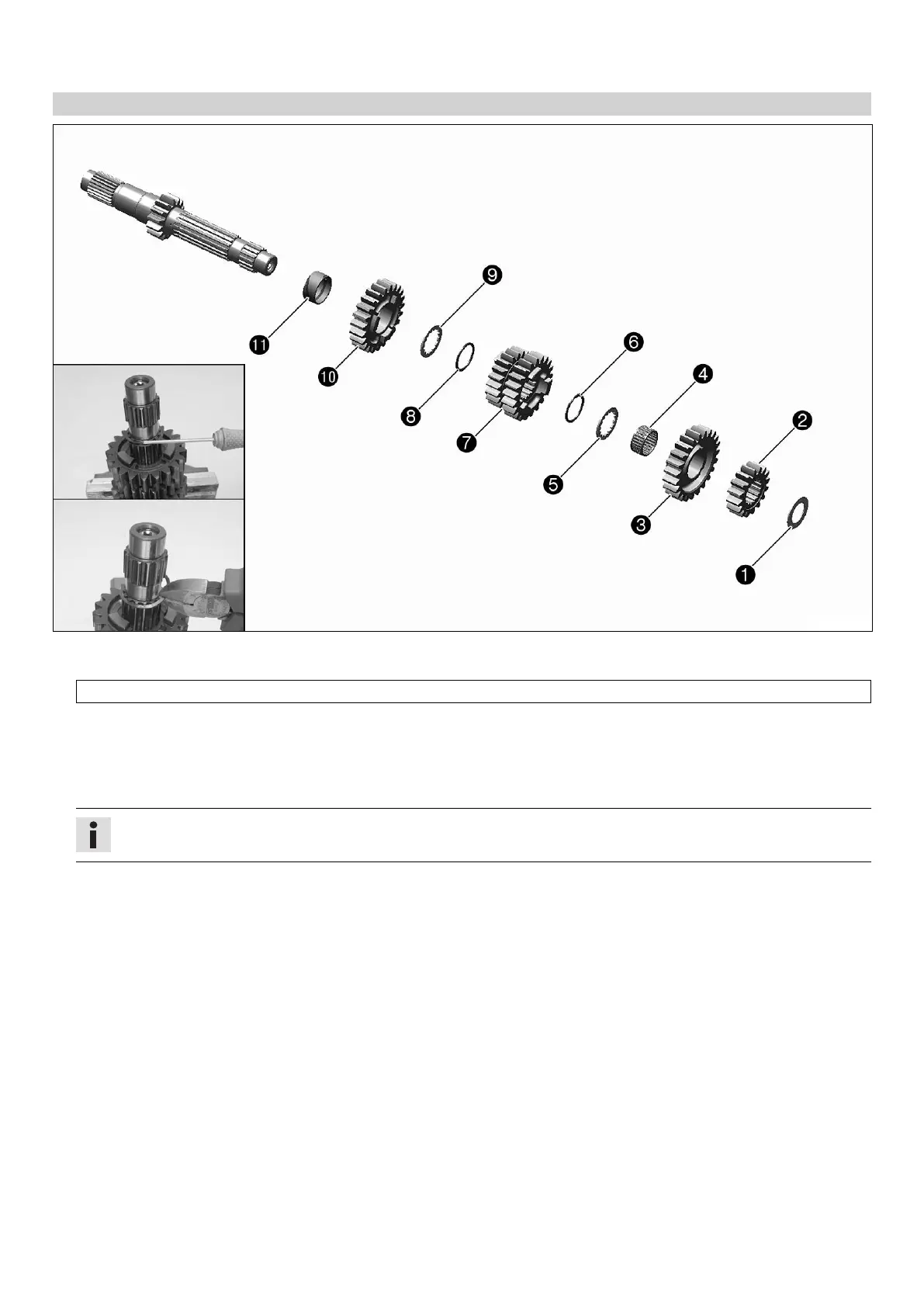

16.4.34 Disassembling the main shaft
306232-10
– Fix the main shaft in the vise with the geared end facing downward.
Guideline
Use soft jaws.
–
Remove stop disk

and second-gear fixed gear

.
–
Remove the sixth-gear idler gear

.
–
Remove the split needle bearing

and stop disk

.
–
Remove lock ring

.
Info
Open the lock ring with a screwdriver and twist it off the transmission shaft with pliers.
–
Remove the third/fourth-gear sliding gear

.
–
Remove lock ring

.
–
Remove stop disk

and fifth-gear idler gear

.
–
Remove bearing bush

.
