16 ENGINE 164

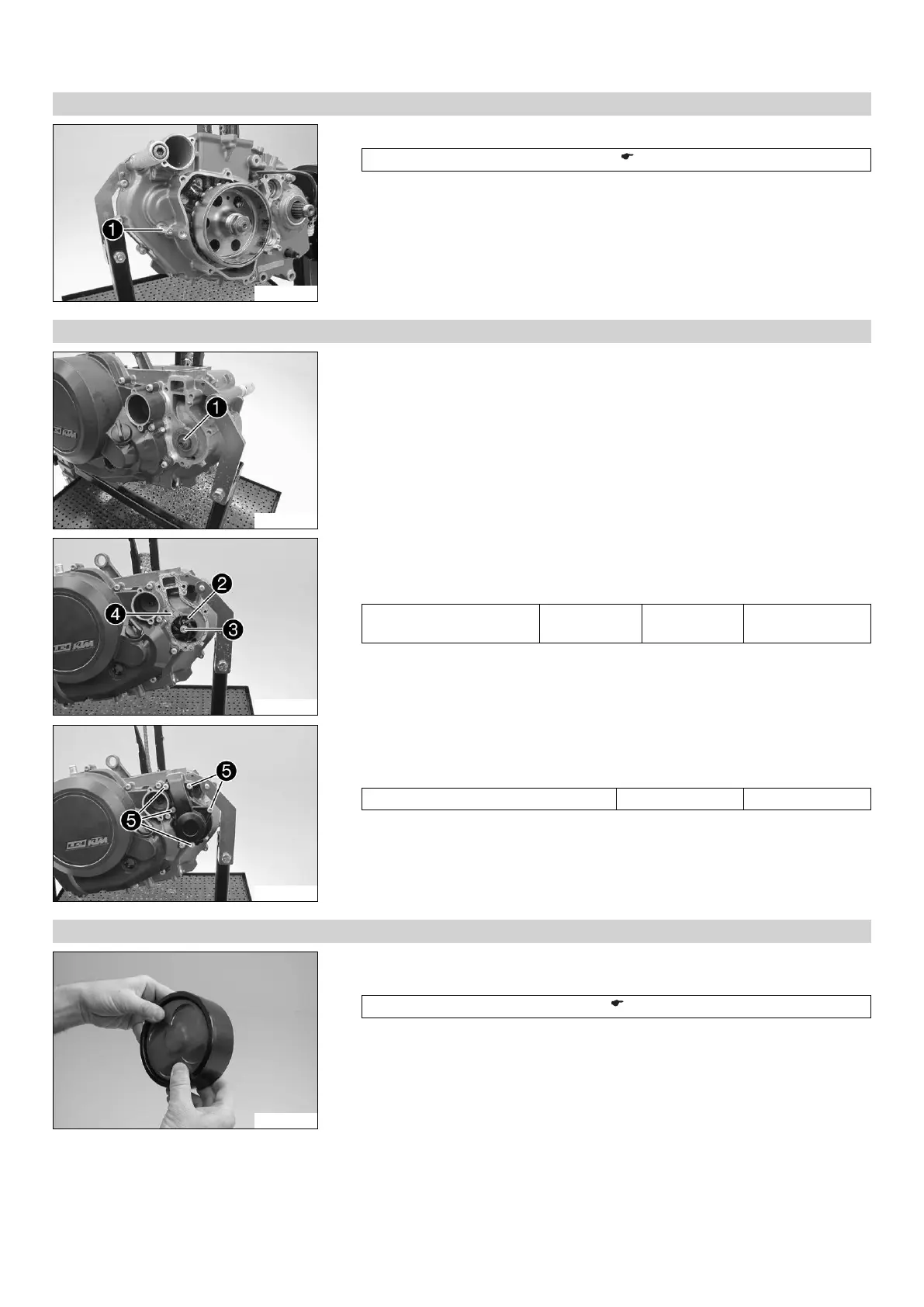

16.5.18 Setting engine to top dead center
305560-10
–
Set the crankshaft to top dead center and lock it with the special tool

.
Engine blocking screw (77329010000) ( p. 237)
16.5.19 Mounting the water pump cover
305558-11
–
Mount form washer

.
305559-10
–
Mount water pump impeller

.
–
Mount and tighten screw

.
Guideline
Screw, water pump
impeller
M6x15 10 Nm
(7.4 lbf ft)
Loctite
®
243™
–
Lay on the water pump cover seal

.
305556-11
– Position the water pump cover.
–
Mount and tighten screws

.
Guideline
Screw, water pump cover M6x30 10 Nm (7.4 lbf ft)
16.5.20 Installing piston
302600-10
– Shift the joint of the piston rings by 120°.
– Push the oiled piston into the special tool.
Piston assembly ring (75029015102) ( p. 233)
