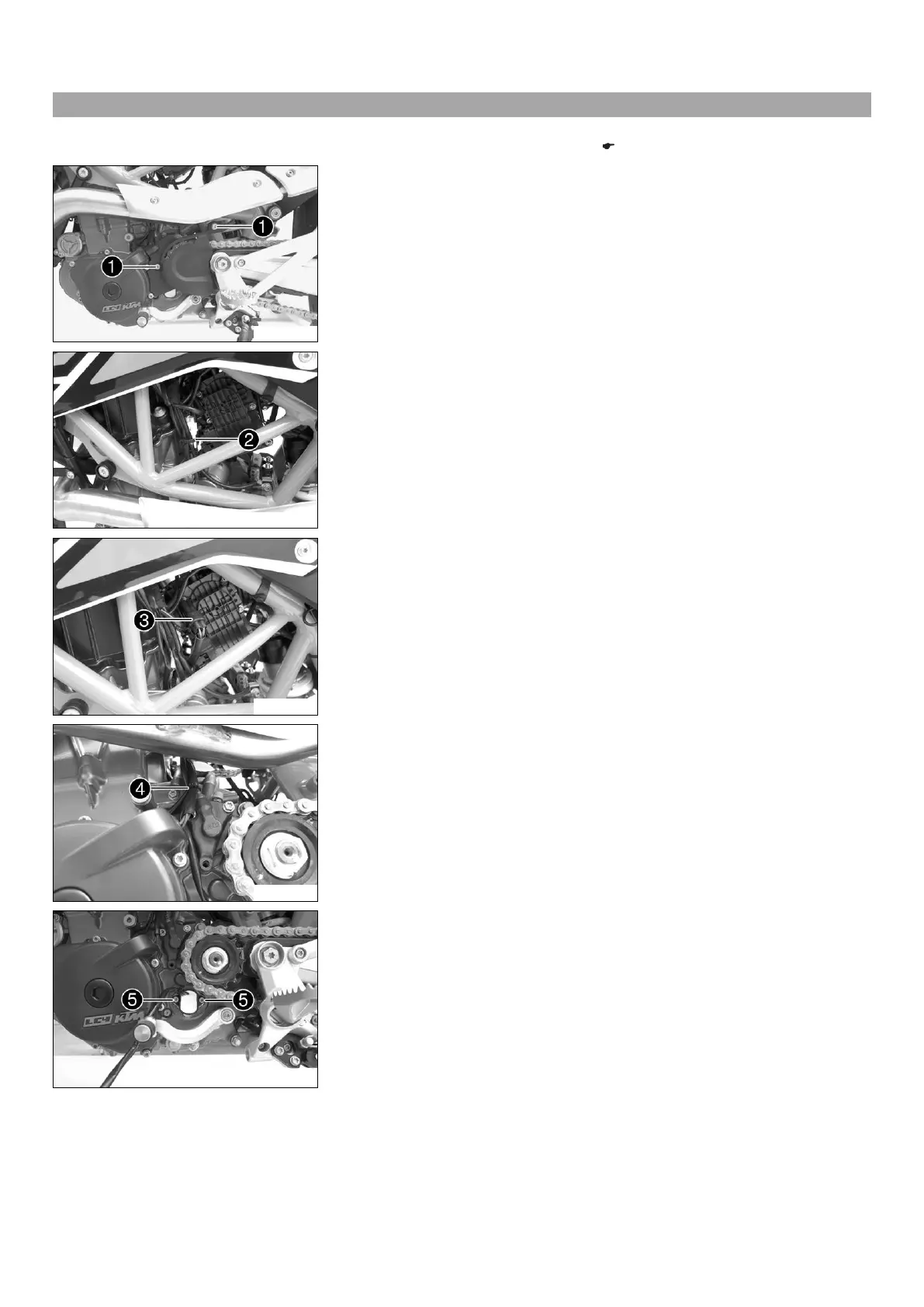

18 SHIFT MECHANISM 175

18.1 Changing the gear position sensor

Preparatory work

– Raise the motorcycle with a lift stand. ( p. 11)

G00772-10

Main work

–

Remove screw



. Take off the engine sprocket cover.

G00773-10

–

Remove cable binder



G00774-10

–

Disconnect plug-in connector



G00775-10

–

Remove cable binder



– Expose the cable.

G00776-10

–

Remove screws



– Take off the gear position sensor.
