9.1 Removing the manifold
Warning
Danger of burns The exhaust system gets very hot when the vehicle is driven.
– Allow the exhaust system to cool down. Do not touch hot components.
Preparatory work
– Remove the seat. ( p. 61)
– Take off the side cover. ( p. 62)
G00811-10

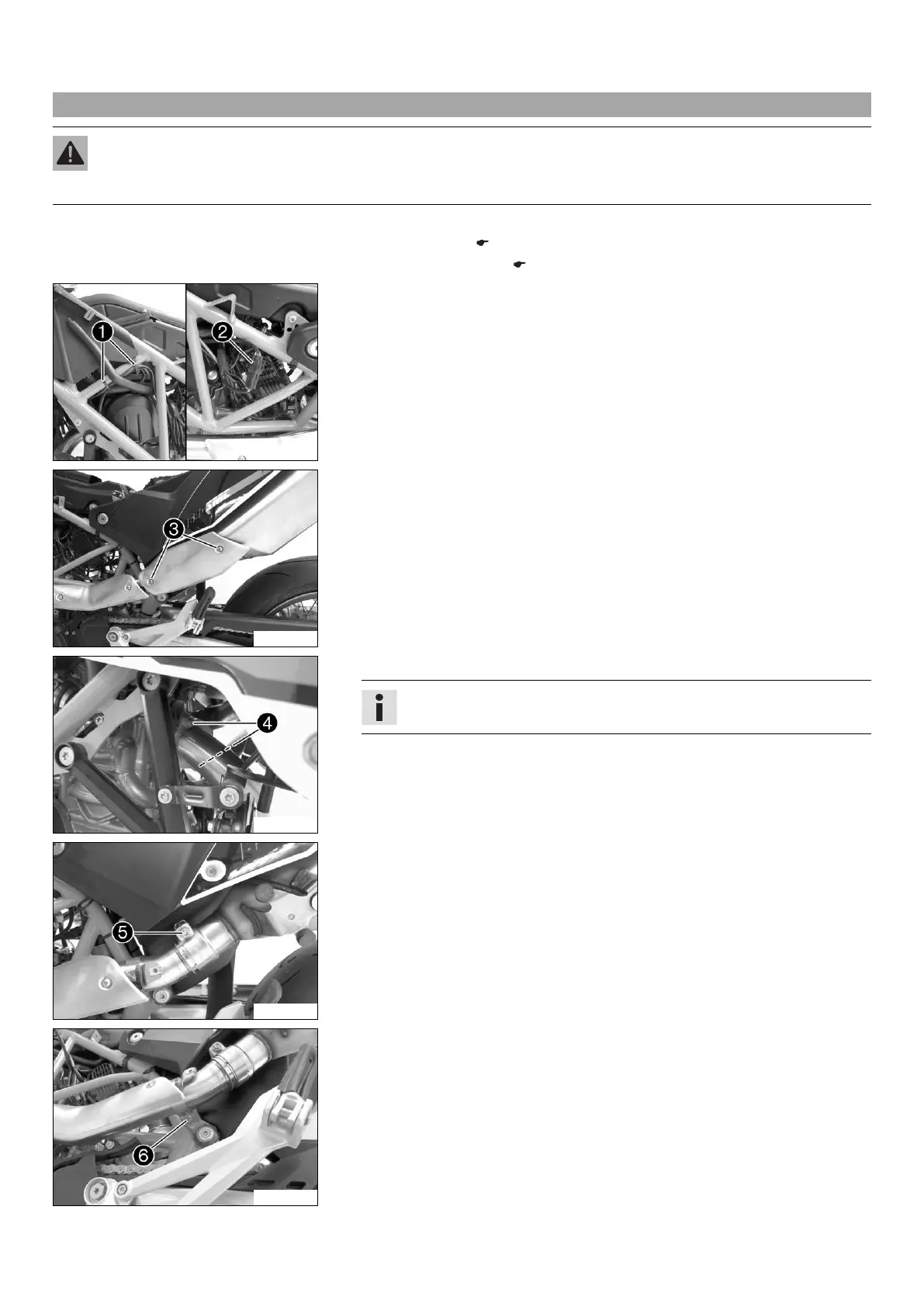

Main work
–
Remove cable binders
.
–
Push the cable to the right. Disconnect plug-in connector
of the lambda sensor.
– Feed out the cable of the lambda sensor.
G00812-10
–
Remove screws
.
– Remove the exhaust heat shield.
G00813-10
–
Remove nuts
of the manifold.
Info
Do not misplace the spacer.
G00814-10
–
Loosen screw
.
G00815-10
–
Remove screw
.
– Take off the manifold.
