16 ENGINE 116

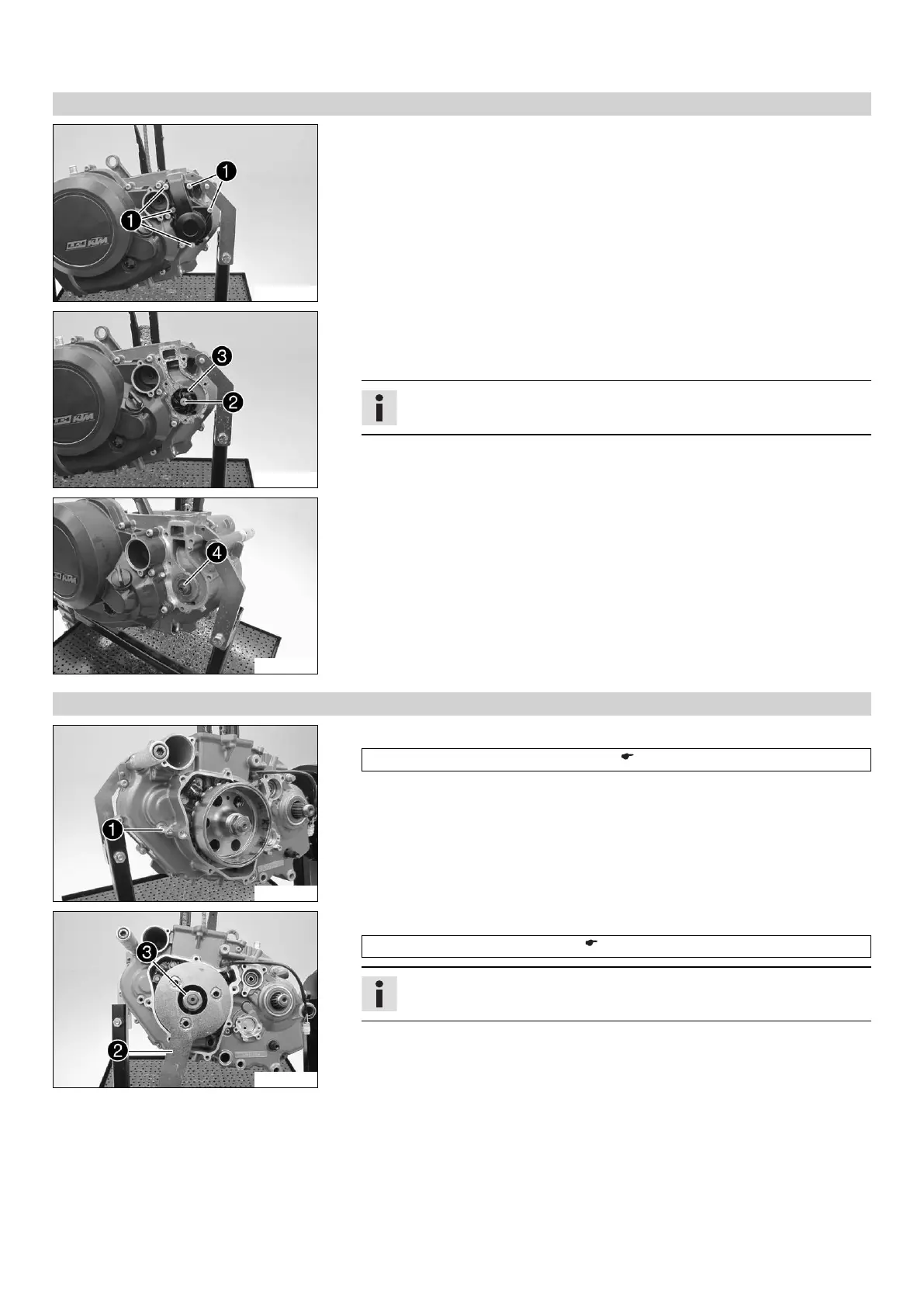

16.3.16 Removing the water pump impeller

305556-10

–

Remove screws



. Take off the water pump cover.

305557-10

–

Remove screw



–

Remove water pump impeller



– Take off the water pump cover seal.

Info

Ensure the locating pins remain in place.

305558-10

–

Remove formed washer



16.3.17 Removing the rotor

305560-10

–

Remove special tool



Engine blocking screw (77329010000) ( p. 237)

305561-10

–

Hold the rotor with special tool



Holding spanner (75029091000) ( p. 236)

Info

Make sure that the crankshaft is not blocked.

–

Remove nut



and the locking edge washer.
