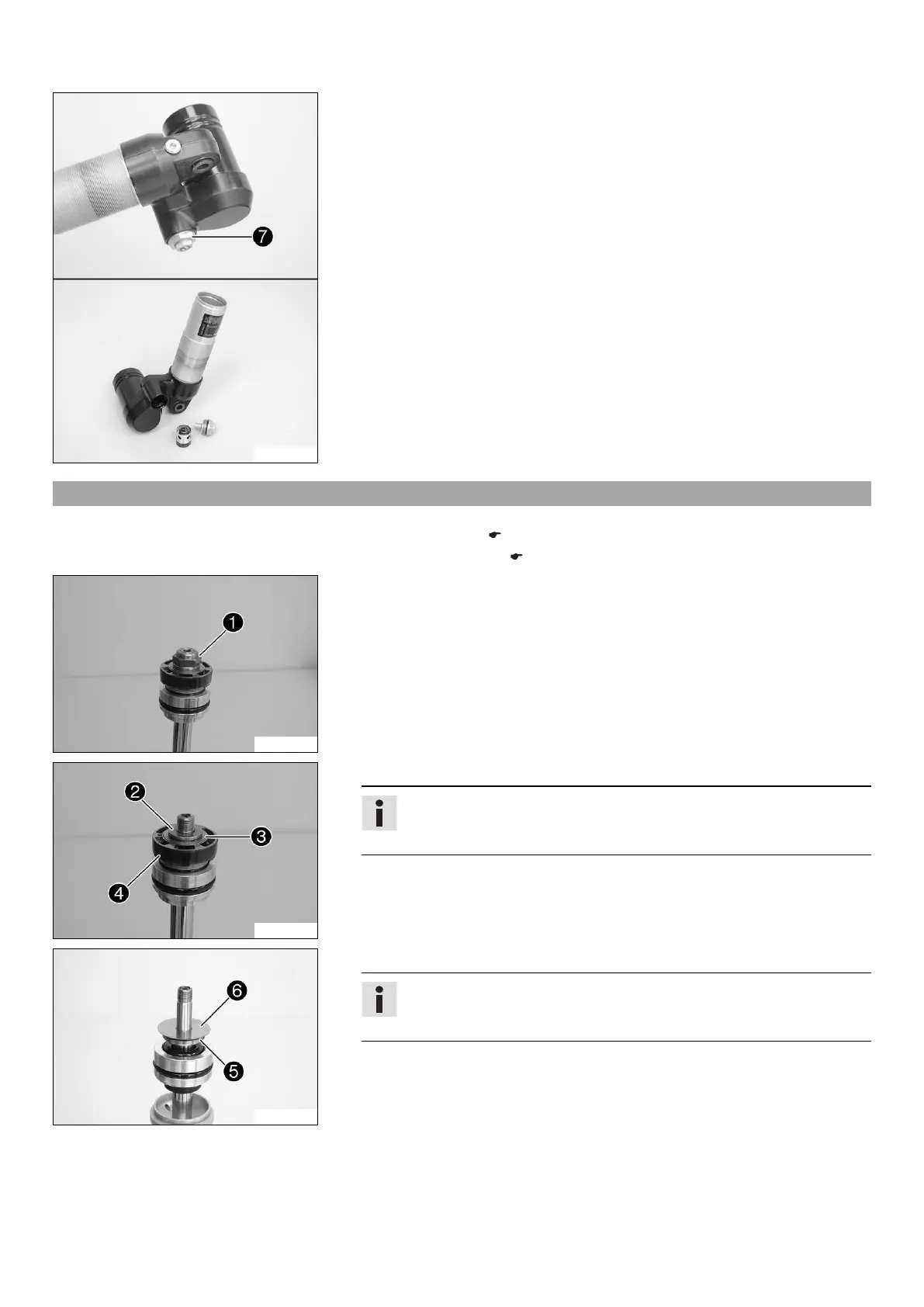

8 SHOCK ABSORBER, SWINGARM 41
201279-10
–
Remove compression adjuster
. Remove the spring, sleeve, and piston.
8.14 Disassembling the piston rod
Preparatory work
– Remove the spring. ( p. 39)
– Dismantle the damper. ( p. 40)
300540-10
Main work
– Clamp the piston rod with the heim joint in a vise.
–
Remove nut
.
300541-10
–
Remove supporting plate
and rebound shim stack
together with piston
.
Info
Thread the rebound shim set on a screwdriver and set the parts down
together.
200572-11
–
Remove compression shim stack
with supporting plate
.
Info
Thread the compression shim stack on a screwdriver and set the parts down
together.
