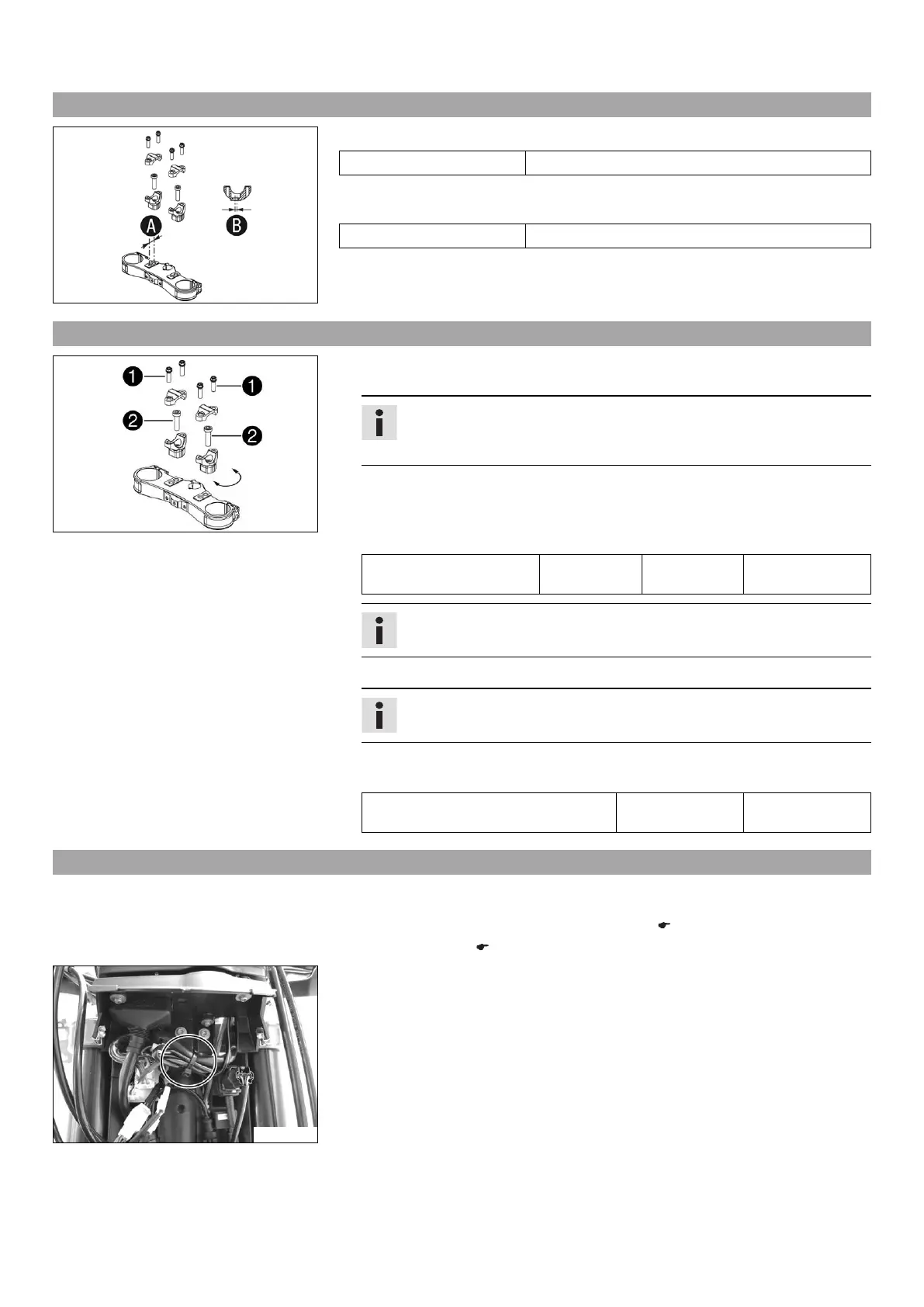

7 HANDLEBAR, CONTROLS 28
7.1 Handlebar position
601874-10
In the upper triple clamp, there are 2 drill holes separated by a distance of
.
Hole distance
15 mm (0.59 in)
The drill holes on the handlebar holder are centered and separated by a distance
of
.
Hole distance
3.5 mm (0.138 in)
The handlebar can be mounted in 4 different positions. In this way, the handlebar can
be mounted in the position that is most comfortable for the rider.
7.2 Adjusting the handlebar position
601875-10
–
Remove the four screws
. Remove the handlebar clamps. Take off the handlebar
and set it aside.
Info
Cover the motorcycle and attachments to protect them from damage.
Do not kink the cables and lines.
–
Remove the two screws
. Take off the handlebar holder.
– Move the handlebar holder to the desired position. Mount and tighten the two
screws
.
Guideline
Screw, handlebar support M10 40 Nm
(29.5 lbf ft)
Loctite
®
243™
Info
Position the handlebar holders evenly on the left and right.
– Position the handlebar.
Info
Ensure that the cables and lines are routed correctly.
–
Position the handlebar clamps. Mount and evenly tighten the four screws
.
Guideline
Screw, handlebar clamp M8 20 Nm
(14.8 lbf ft)
7.3 Changing the throttle grip
Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the headlight mask with the headlight. ( p. 101)
– Remove the seat. ( p. 61)
G00778-10
Main work
– Remove the cable binder.
