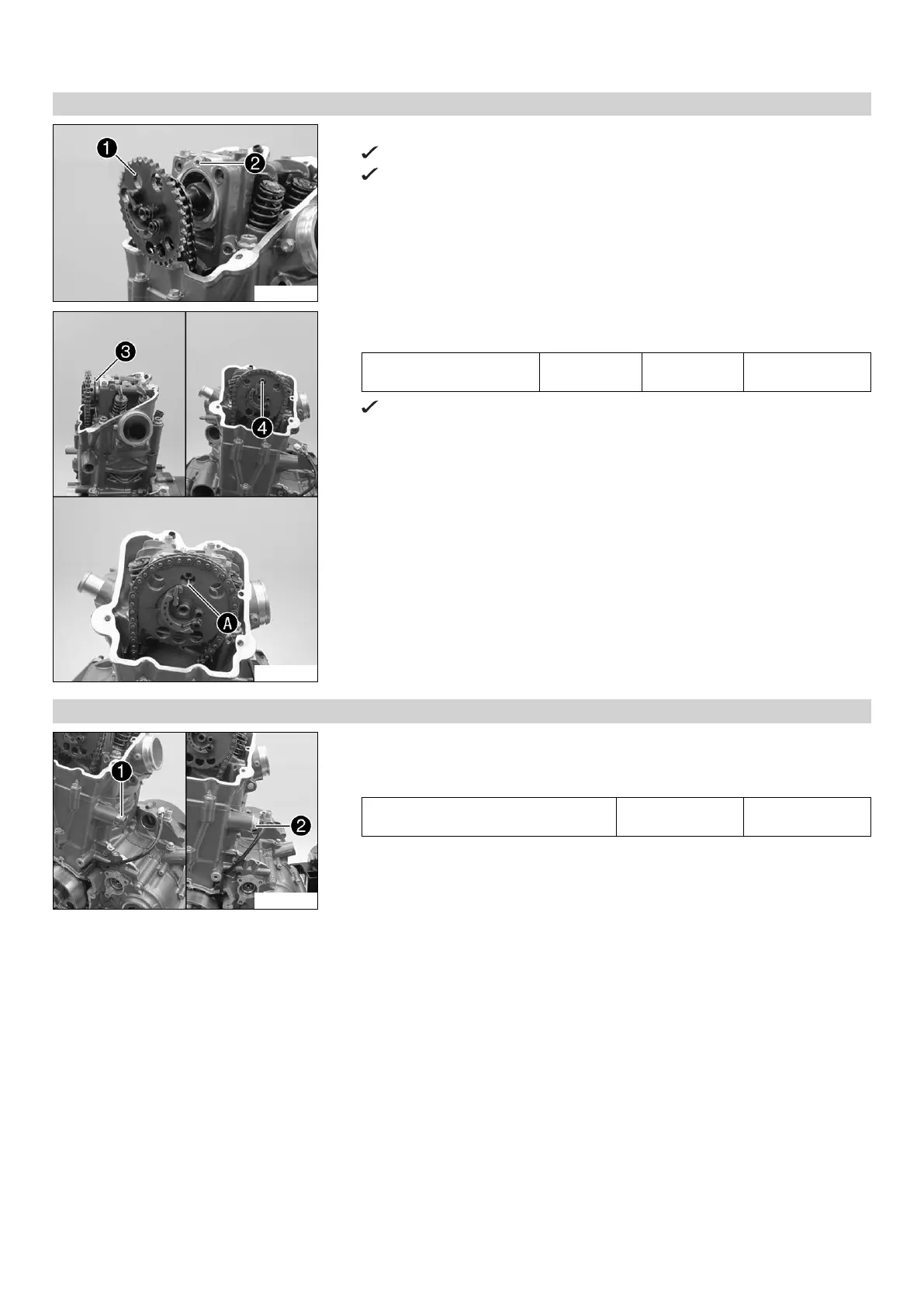

16.5.22 Installing the camshafts
305548-10
– Lay the timing chain over the camshaft. Push the camshaft into the bearing seats.
The crankshaft is at top dead center.
The middle drill hole of camshaft

and the drill hole of cylinder head

are aligned.
305547-10
–
Position the camshaft support plate

. Mount and tighten screw

.
Guideline
Screw, camshaft support
plate
M6x12 10 Nm
(7.4 lbf ft)
Loctite
®
243™
Marking

of the camshaft is aligned with the marking of the camshaft sup-
port plate.
16.5.23 Installing timing chain tensioner
305540-10
–
Insert the timing chain tensioner

.
–
Mount and tighten plug

with the new seal ring.
Guideline
Plug, timing chain tensioner M20x1.5 25 Nm
(18.4 lbf ft)
