KTM 2014 690 SMC R EU User Manual

16 ENGINE 137

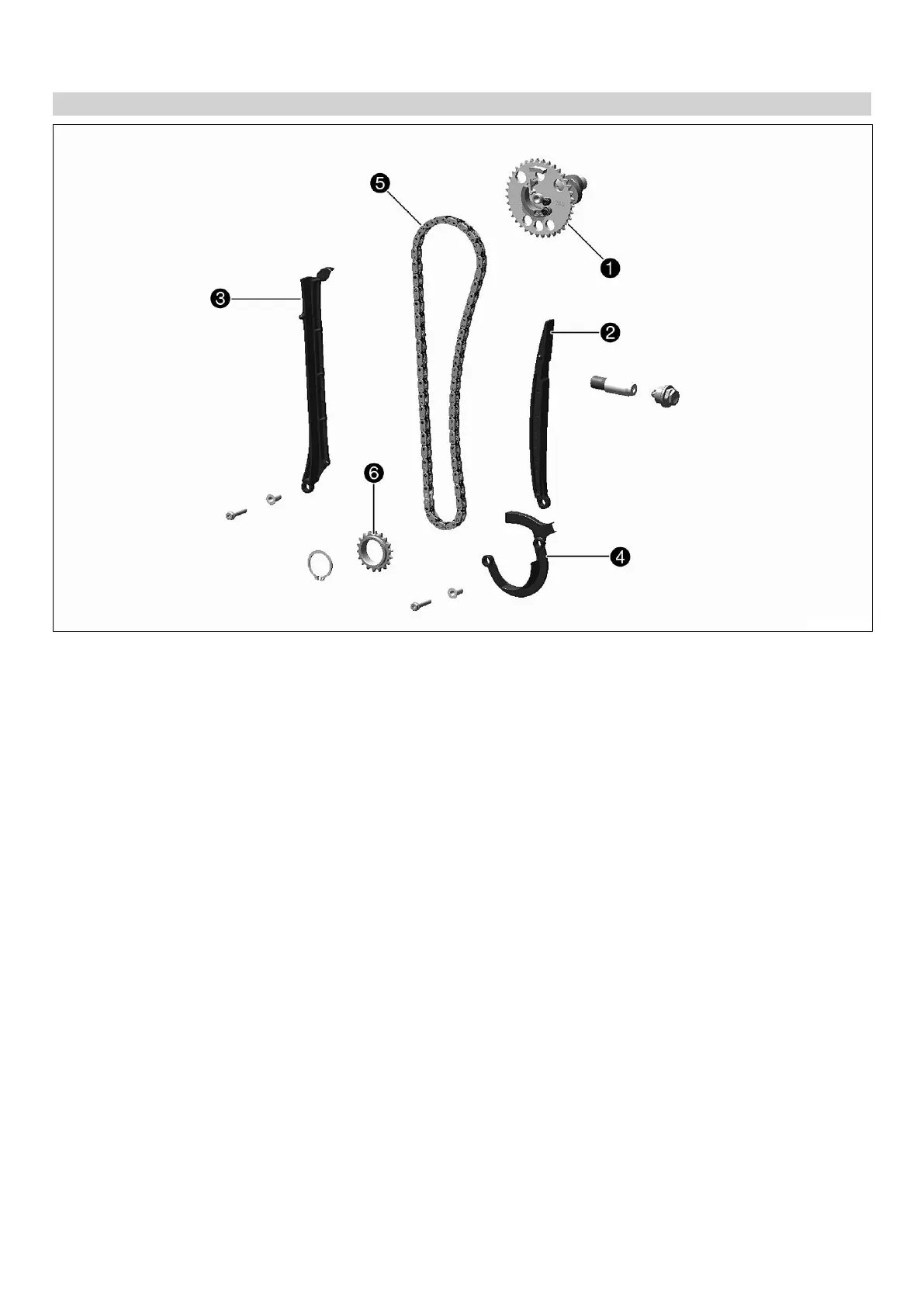

16.4.19 Checking the timing assembly
305601-10
– Clean all parts well.
–
Check timing chain gear

for damage and wear.
» If there is damage or wear:
– Change the timing chain gear/timing chain sprocket.
–
Check timing chain tensioning rail

for damage and wear.
» If there is damage or wear:
– Change the timing chain tensioning rail.
–
Check timing chain guide rail

for damage and wear.
» If there is damage or wear:
– Change the timing chain guide rail.
–
Check timing chain securing guide

for damage and wear.
» If there is damage or wear:
– Change the timing chain securing guide.
–
Check timing chain

for damage and wear.
» If there is damage or wear:
– Change the timing chain.
– Check that the timing chain links move easily. Let the timing chain hang down freely.
» If the chain links no longer straighten out:
– Change the timing chain.
–
Check timing chain sprocket

for damage and wear.
» If there is damage or wear:
– Change the timing chain gear/timing chain sprocket.
