KTM 2014 690 SMC R EU User Manual

16 ENGINE 123
305628-10
–

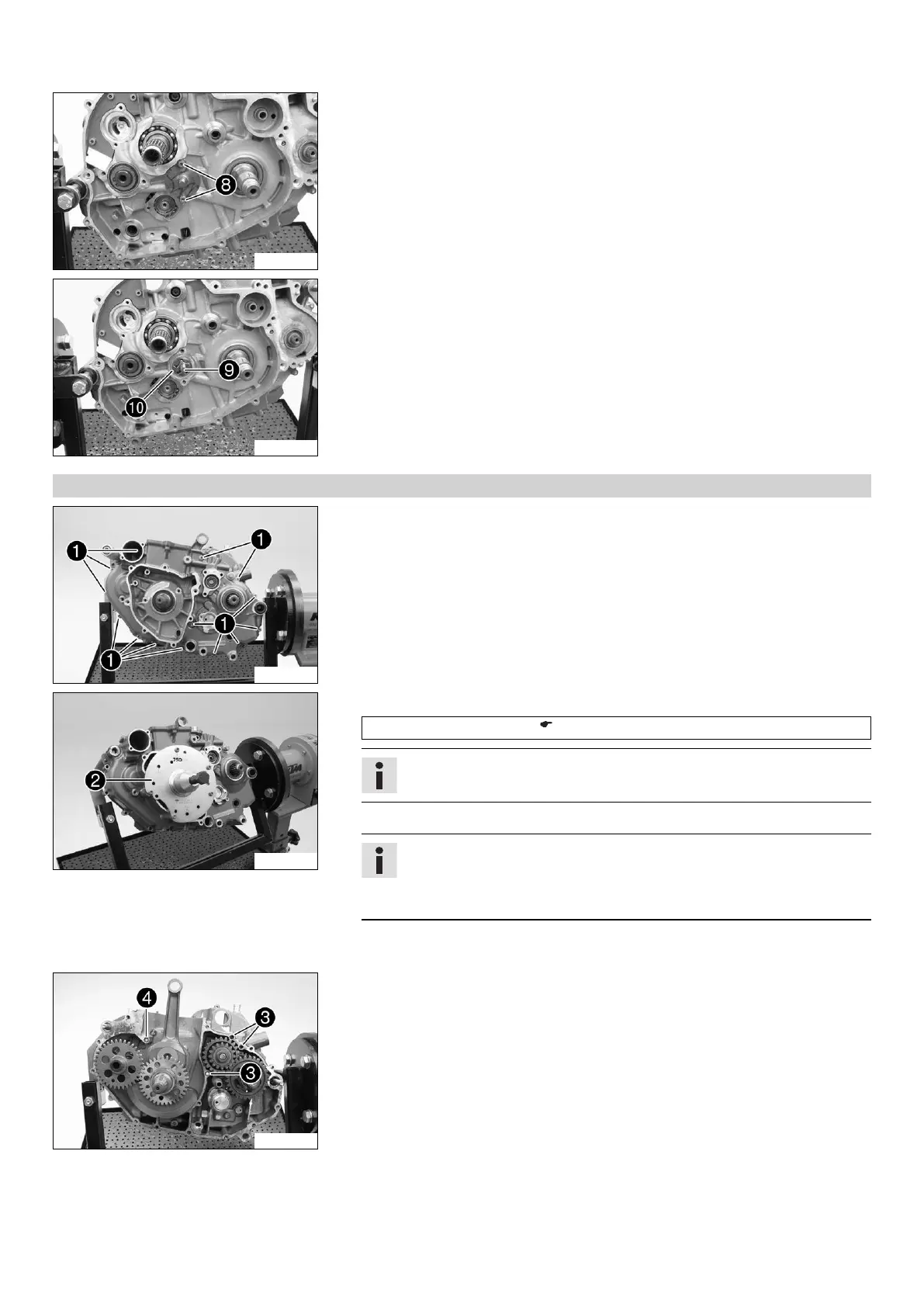

Remove screws

.
– Take off the oil pump cover.
305629-10
–
Remove oil pump shaft

with the internal rotors.
–
Remove external rotor

.
16.3.30 Removing the left engine case
305632-10
–
Remove screws

.
– Swing the left section of the engine case up and remove the nut or screw of the
engine fixing arm.
305633-10
–
Install special tool

with suitable screws.
Extractor (75029048000) ( p. 235)
Info
Use the 750 drill hole.
– Pull off the section of the engine case.
Info
Do not tension the section of the engine case.
The balancer shaft and the main shaft have a stop disk; these usually stick
to the bearing.
– Take off the left section of the engine case.
– Remove the special tool.
305634-10
–
Remove dowels

.
–
Remove O-ring

.
