16 ENGINE 162

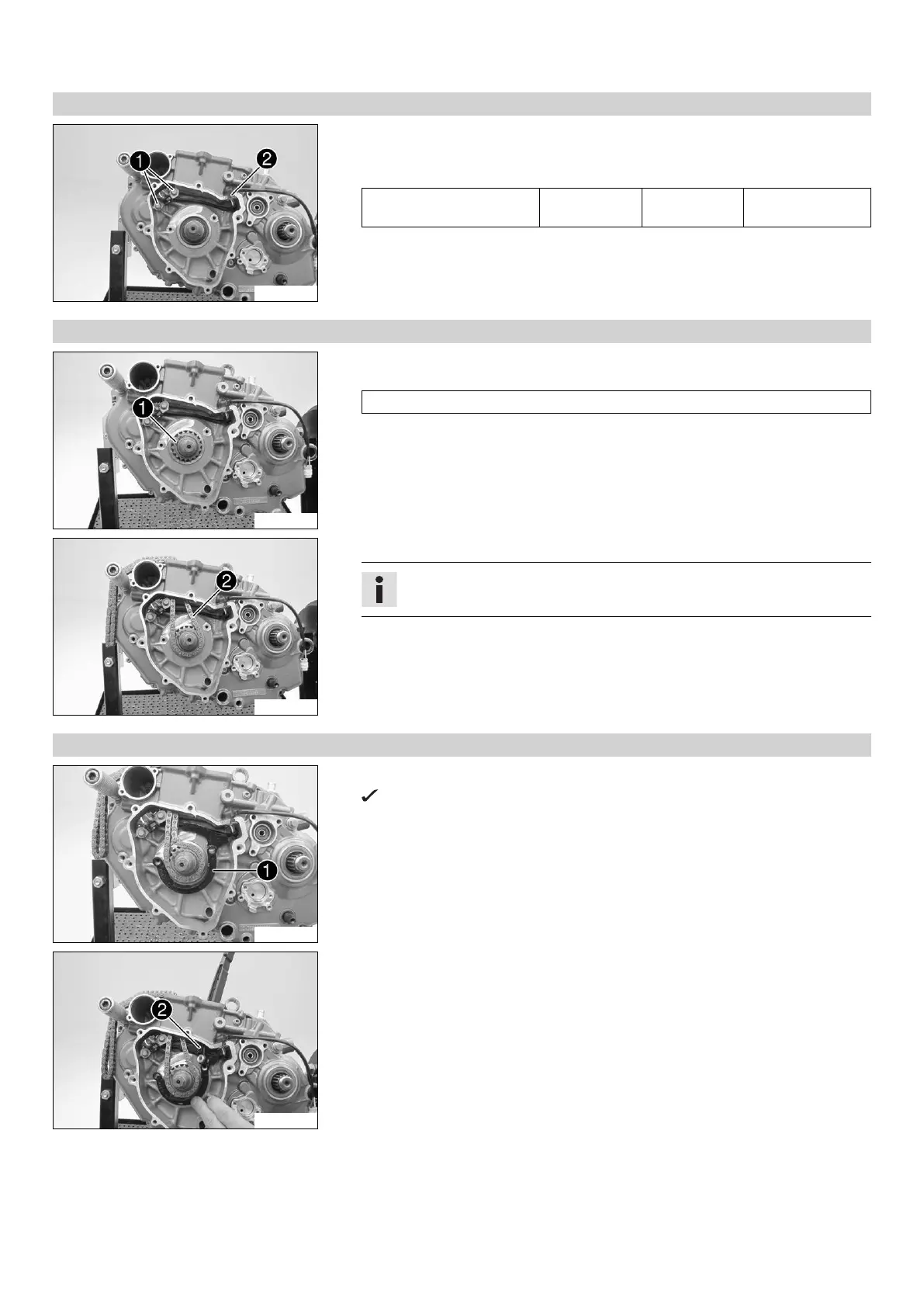

16.5.13 Installing the ignition pulse generator
305572-10
– Position the ignition pulse generator.
–
Mount screws
but do not tighten yet.
Guideline
Screw, crankshaft position
sensor
M6x16 10 Nm
(7.4 lbf ft)
Loctite
®
243™
–
Position the cable and position cable sleeve
in the engine case.
16.5.14 Installing timing chain and timing chain sprocket
305570-11
– Heat the timing chain sprocket and push it immediately on to the crankshaft.
Guideline
100 °C (212 °F)
–
Mount lock ring
.
305569-11
–
Thread the timing chain
in and lay it over the timing chain sprocket.
Info
If the timing chain is not new, pay attention to the direction of travel.
16.5.15 Installing the timing chain rails
305567-10
–
Position the timing chain securing guide
.
The ignition pulse generator cable is routed in the cable duct of the timing
chain securing guide.
305566-11
–
Position the timing chain tensioning rail
from above.
– Insert the support bushing into the timing chain securing guide.
