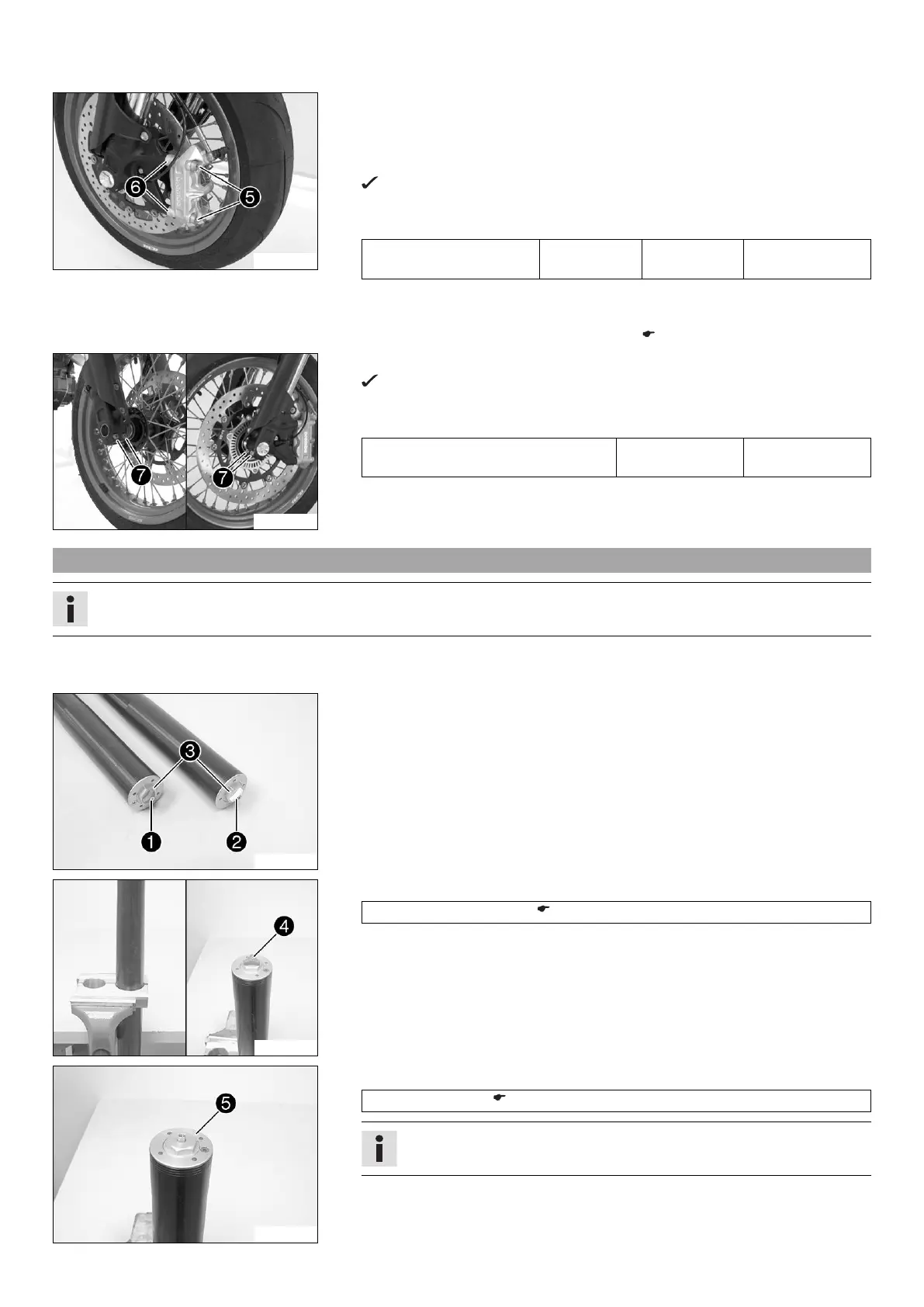

6 FORK, TRIPLE CLAMP 18
G00831-10
– Position the brake caliper and check that the brake linings are seated correctly.
–
Mount screws
with spacers
but do not tighten.
– Operate the hand brake lever repeatedly until the brake linings lie on the brake disc
and there is a pressure point. Fix the hand brake lever in the activated position.
The brake caliper straightens.
–
Tighten screws
.
Guideline
Screw, front brake caliper M10x1.25 45 Nm
(33.2 lbf ft)
Loctite
®
243™
– Remove the fixation of the hand brake lever.
– Unload the rear of the vehicle.
– Remove the motorcycle from the work stand. ( p. 12)
G00827-11
– Pull the front brake and compress the fork powerfully a few times.
The fork legs straighten.
–
Tighten screws
.
Guideline
Screw, fork stub M8 15 Nm
(11.1 lbf ft)
6.9 Disassembling the fork legs
Info
These operations are the same on both fork legs.
Condition
The fork legs have been removed.
202305-10
–
Note down the current state of the rebound
and compression damping
.
–
Note down the current spring preload
.
– Completely open the adjusters of the rebound damping, compression damping, and
spring preload.
202307-10
– Clamp the fork leg in the area of the lower triple clamp.
Clamping stand (T1403S) ( p. 240)
–
Remove adjuster
.
202308-10
–
Release Preload Adjuster
.
Pin wrench (T103) ( p. 237)
Info
The Preload Adjuster cannot be removed yet.
