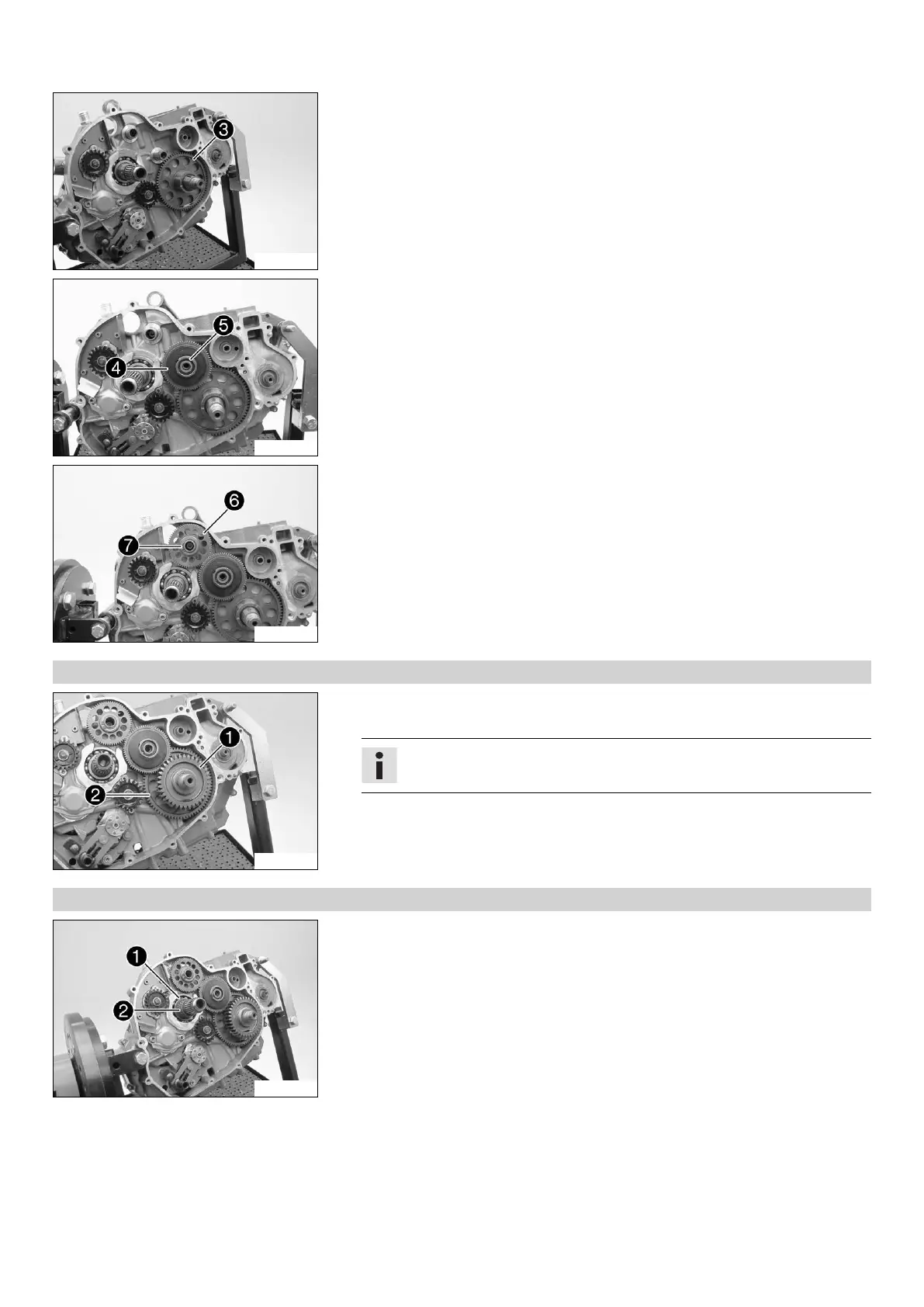

16 ENGINE 159

305616-11

–

Position freewheel gear



305615-11

–

Mount the needle bearing and torque limiter



with the washer.

–

Mount lock ring



305614-11

–

Mount the starter idler gear



with the washer.

–

Mount lock ring



16.5.9 Installing the primary gear

305586-10

– Ensure that the woodruff key is seated properly.

–

Mount primary gear



Info

Turn freewheel gear



backwards and forwards to ease meshing.

16.5.10 Installing the clutch basket

305583-11

–

Mount supporting plate



and needle bearing


