9 EXHAUST 56

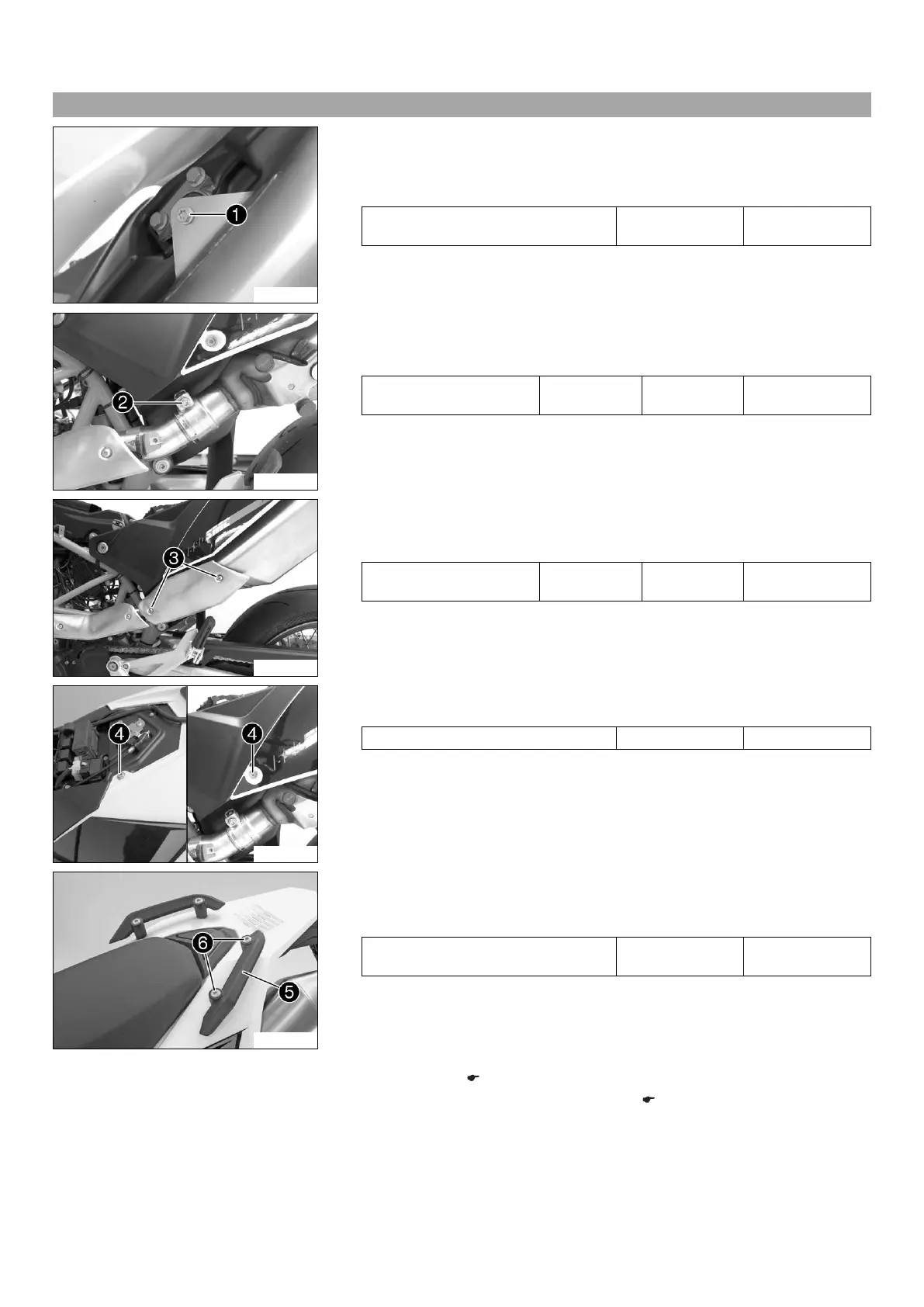

9.4 Installing the main silencer
G00817-11
Main work
– Position the main silencer.
–
Mount and tighten screw
.
Guideline
Screw, main silencer holder M8 25 Nm
(18.4 lbf ft)
G00814-11
– Position the screw clamp.
–
Tighten screw
.
Guideline
Screw, main silencer
clamp
M8 12 Nm
(8.9 lbf ft)
Copper paste
G00812-13
– Position the exhaust heat guard.
–
Mount and tighten screws
.
Guideline
Screw, exhaust heat shield M5 8 Nm
(5.9 lbf ft)
Loctite
®
243™
G00816-11
–
Mount and tighten screws
.
Guideline
Rear fairing screw M6 5 Nm (3.7 lbf ft)
G00821-13
–
Position grab handle
.
–
Mount and tighten screws
.
Guideline
Screw, handrail M8 20 Nm
(14.8 lbf ft)
Finishing work
– Mount the seat. ( p. 62)
– Remove the motorcycle from the work stand. ( p. 12)
