16 ENGINE 138

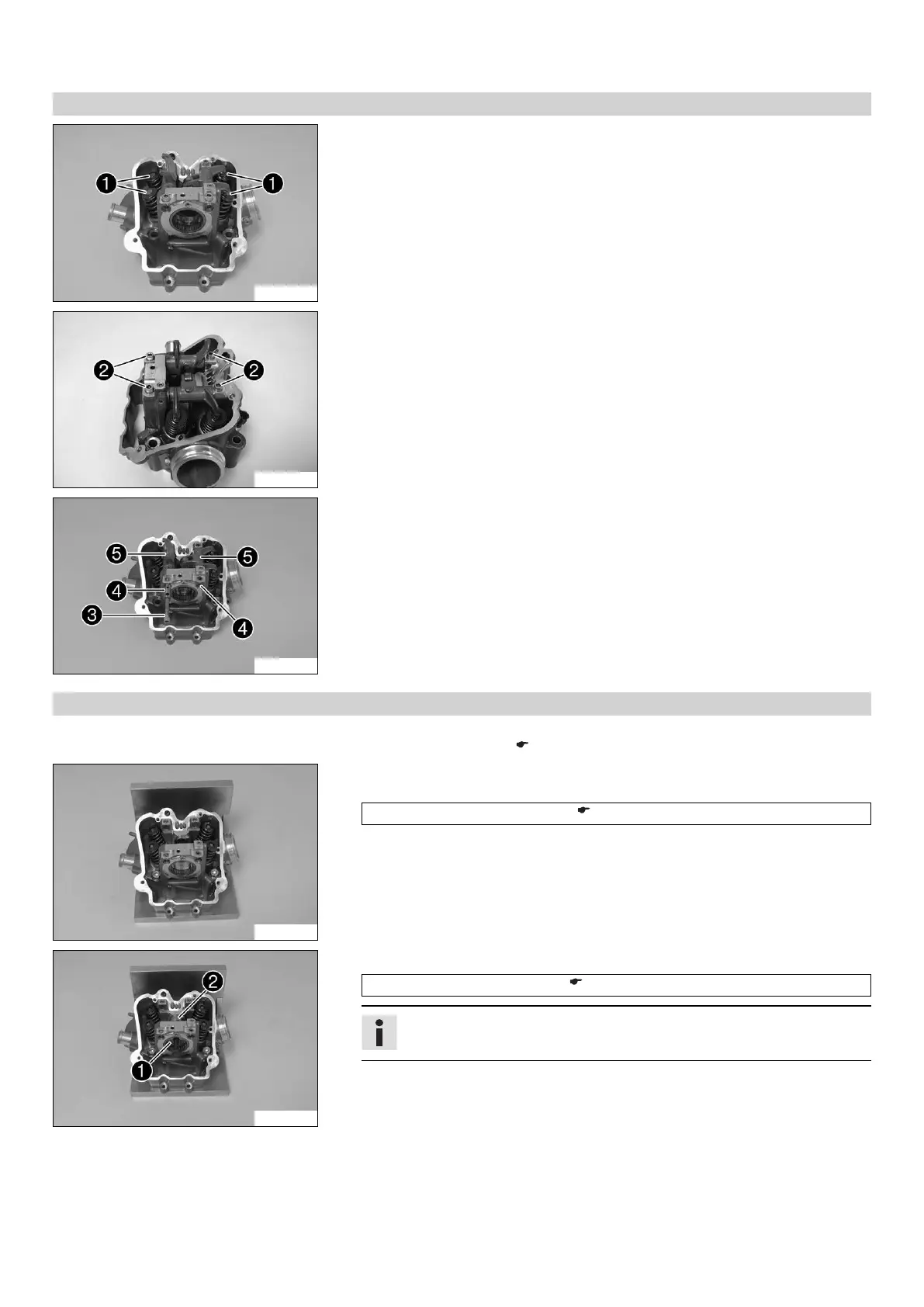

16.4.20 Removing the rocker arm
305664-10
–
Take shims

out of the valve spring retainers and lay them to one side according
to their normal built-in position.
305665-10
–
Remove screws

.
305666-10
–
Screw a suitable screw

into the rocker arm shafts

. Pull out the rocker arm
shafts.
–
Take off rocker arm

.
16.4.21 Changing the camshaft bearing
Preparatory work
– Remove the rocker arm. ( p. 138)
305668-10
Main work
– Mount the cylinder head on the special tool.
Clamping plate (75029050000) ( p. 235)
305669-10
–
Remove the large camshaft bearing using special tool

.
Push-out drift (75029051000) ( p. 235)
Info
Brace the back of the special tool with a suitable tool

.
