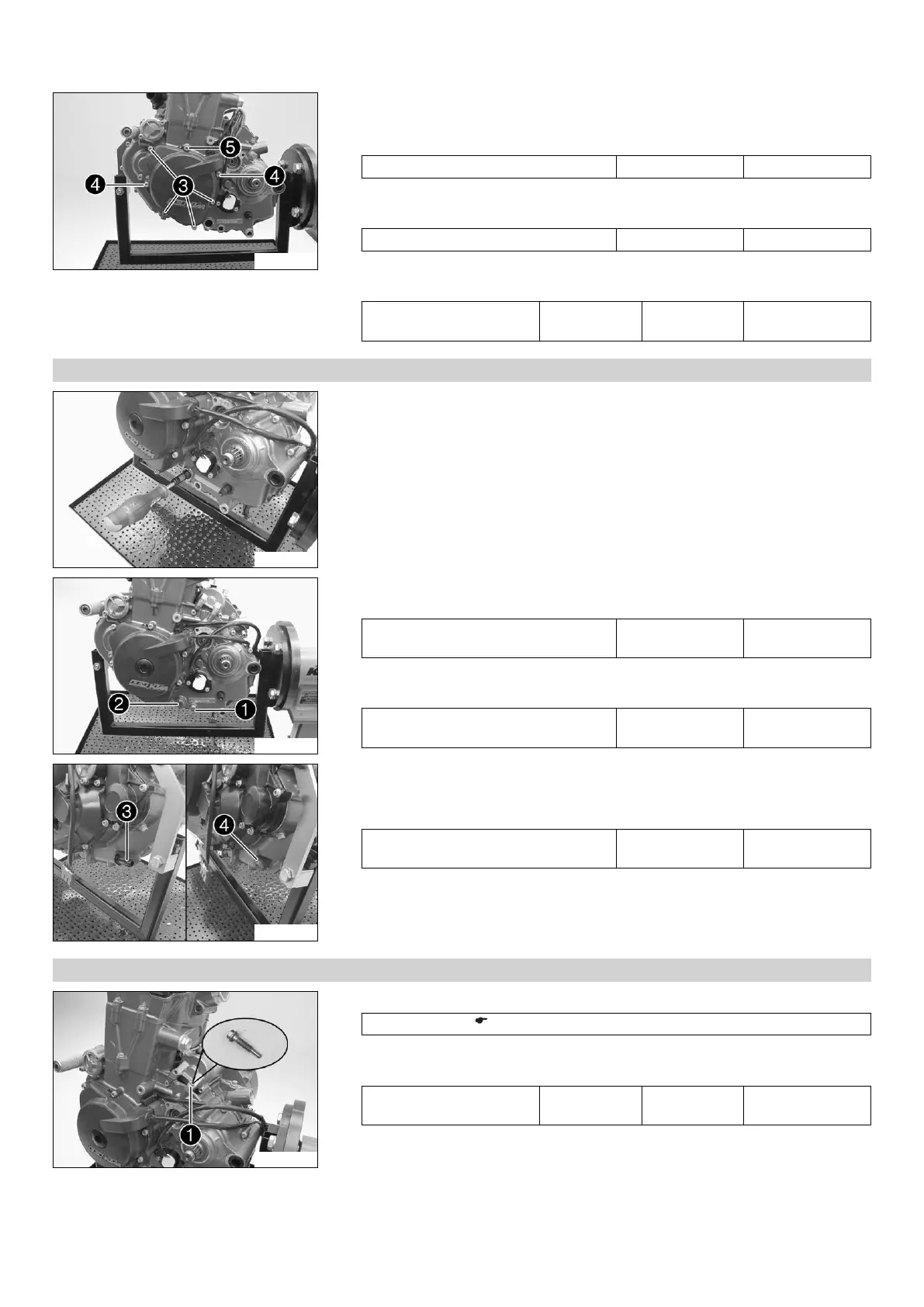

16 ENGINE 172
305519-10
– Position the alternator cover.
–
Mount and tighten screws
.
Guideline
Screw, alternator cover M6x25 10 Nm (7.4 lbf ft)
–
Mount and tighten screws
.
Guideline
Screw, alternator cover M6x30 10 Nm (7.4 lbf ft)
–
Mount and tighten screw
.
Guideline
Screw, alternator cover
(chain shaft through-hole)
M6x25 10 Nm
(7.4 lbf ft)
Loctite
®
243™
16.5.32 Installing oil screens
305510-10
– Push the oil screen with O-rings on to a pin wrench. Push the pin wrench through
the opening into the drill hole of the opposite engine case wall and push the oil
screen as far as possible into the engine case.
305508-10
–
Mount the oil drain plug
with the magnet and a new seal ring and tighten it.
Guideline
Oil drain plug with magnet M12x1.5 20 Nm
(14.8 lbf ft)
–
Mount and tighten screw plug
with the O-ring.
Guideline
Plug, oil screen M20x1.5 15 Nm
(11.1 lbf ft)
305511-10
–
Position the oil screen
with O-rings.
–
Mount and tighten screw plug
with the O-ring.
Guideline
Plug, oil screen M20x1.5 15 Nm
(11.1 lbf ft)
16.5.33 Installing the starter motor
305513-10
– Grease the O-ring and mount the starter motor.
Long-life grease ( p. 226)
–
Mount and tighten oil throttle
.
Guideline
Screw, starter motor with
oil throttle
M6 10 Nm
(7.4 lbf ft)
Loctite
®
243™
