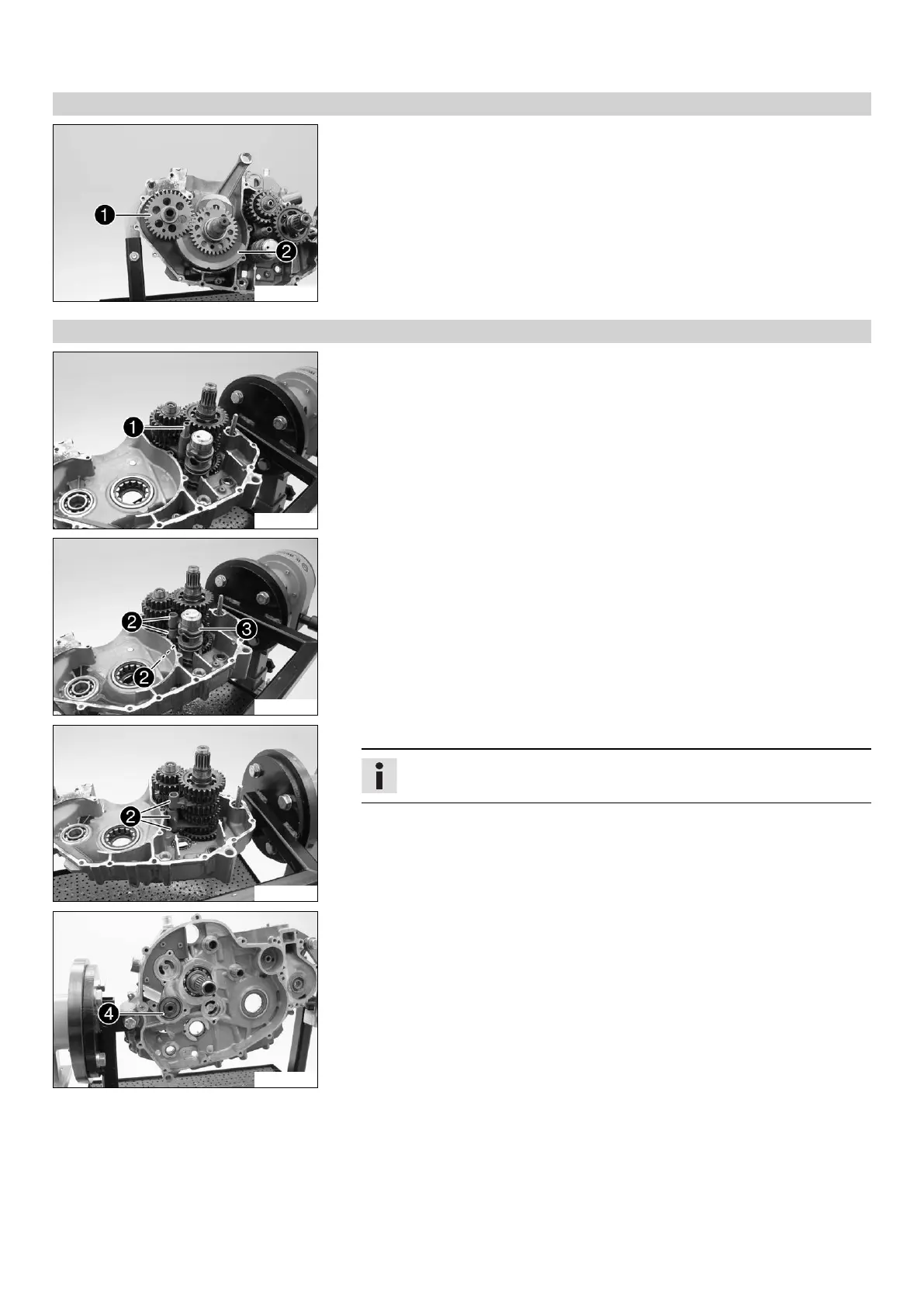

16 ENGINE 124
16.3.31 Removing the crankshaft and balancer shaft
305637-10
–
Remove balancer shaft
and crankshaft
.
16.3.32 Removing the transmission shafts
305638-10
–
Remove shift rail
.
305639-10
–
Swing shift forks
to one side.
–
Remove shift drum
.
305640-10
–
Remove shift forks
.
Info
Ensure that the pins remain in place.
305641-10
–
Remove lock ring
and the stop disk.
