6 FORK, TRIPLE CLAMP 21

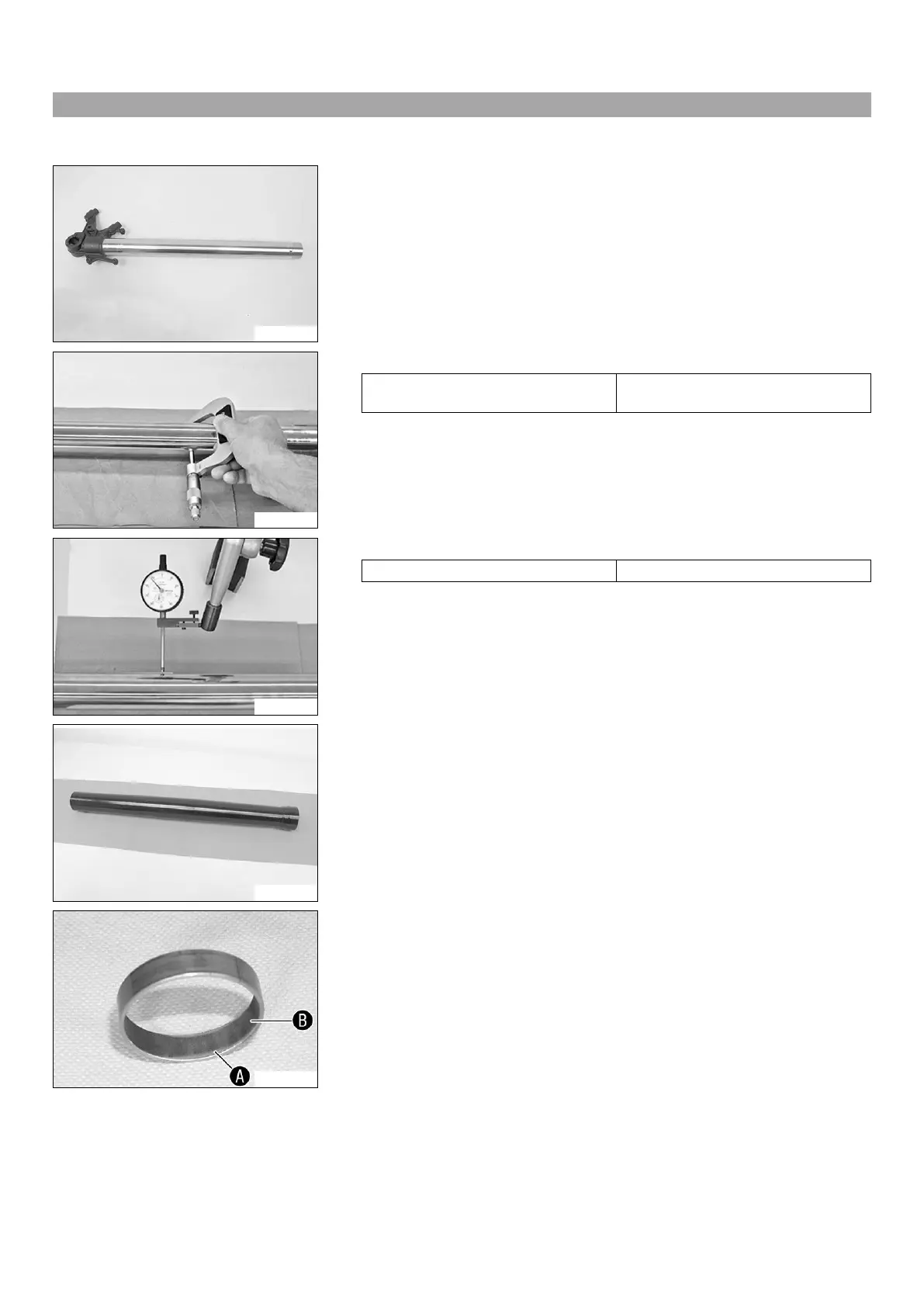

6.10 Checking the fork legs
Condition
Fork disassembled.
202134-10
– Check the inner tube and axle clamp for damage.
» If there is damage:
– Change the inner tube.
200684-10
– Measure the outside diameter at several locations on the inner tube.
Outside diameter of inner tube 47.975… 48.005 mm (1.88878…
1.88996 in)
» If the measured value is less than the specified value:
– Change the inner tube.
200685-10
– Measure the run-out of the inner tube.
Run-out of inner tube ≤ 0.20 mm (≤ 0.0079 in)
» If the measured value is greater than the specified value:
– Change the inner tube.
202112-10
– Check the outer tube for damage.
» If there is damage:
– Change the outer tube.
200665-10
– Check the surface of the sliding bushings.
»
If the bronze-colored layer
under the sliding layer
is visible:
– Replace the sliding bushings.
