16 ENGINE 148

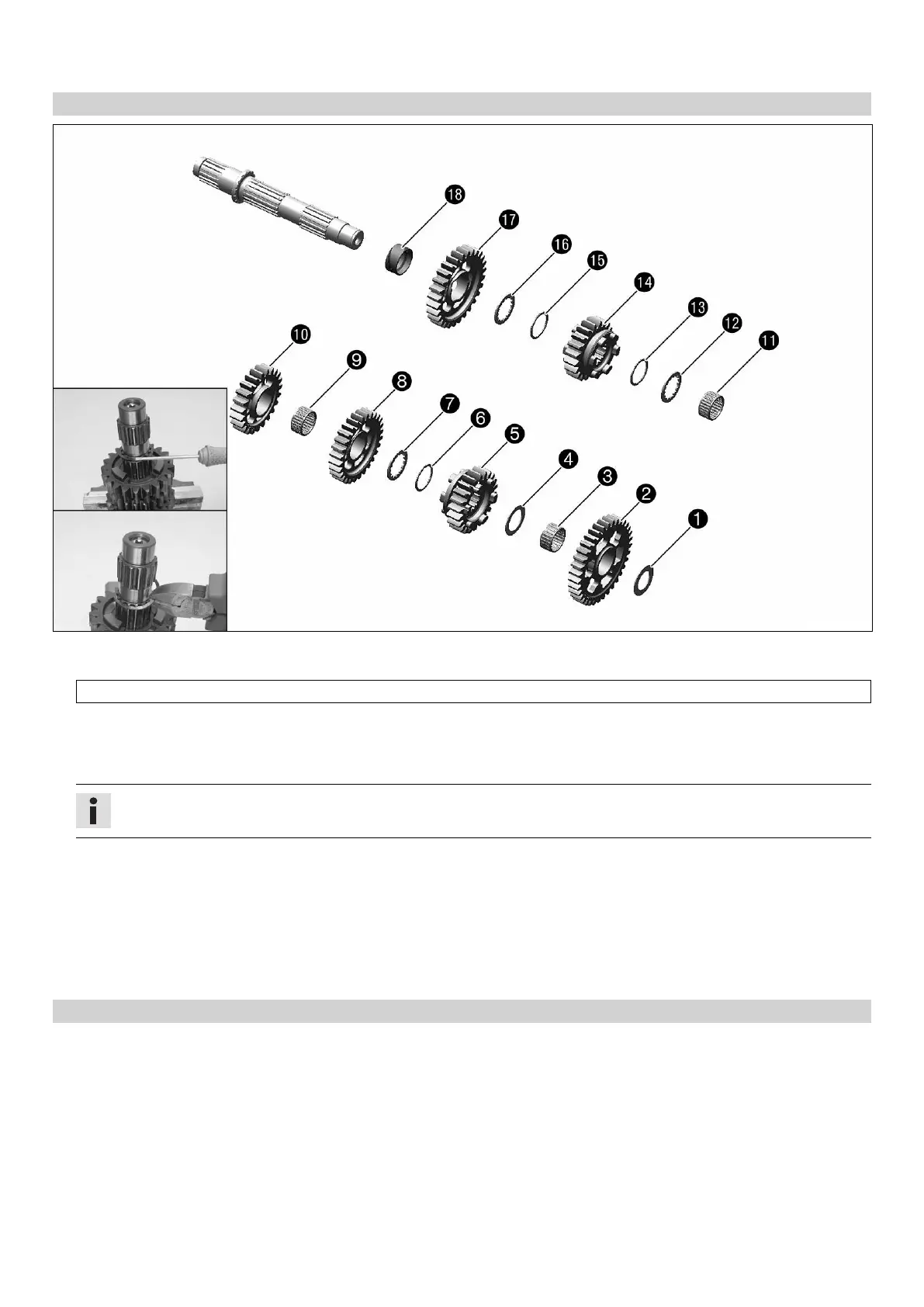

16.4.35 Disassembling the countershaft
306233-10
– Fix the countershaft in the vise with the geared end facing downward.
Guideline
Use soft jaws
–
Remove stop disk

and first-gear idler gear

.
–
Remove needle bearing

and stop disk

.
–
Remove fifth-gear sliding gear

and lock ring

.
Info
Open the lock ring with a screwdriver and twist it off the transmission shaft with pliers.
–
Remove stop disk

and third-gear idler gear

.
–
Remove needle bearing

and the fourth-gear idler gear

.
–
Remove needle bearing

and stop disk

.
–
Remove lock ring

and sixth-gear sliding gear

.
–
Remove lock ring

and stop disk

.
–
Remove the second-gear idler gear

and bearing bush

.
16.4.36 Checking the transmission
Condition
The transmission has been disassembled.
