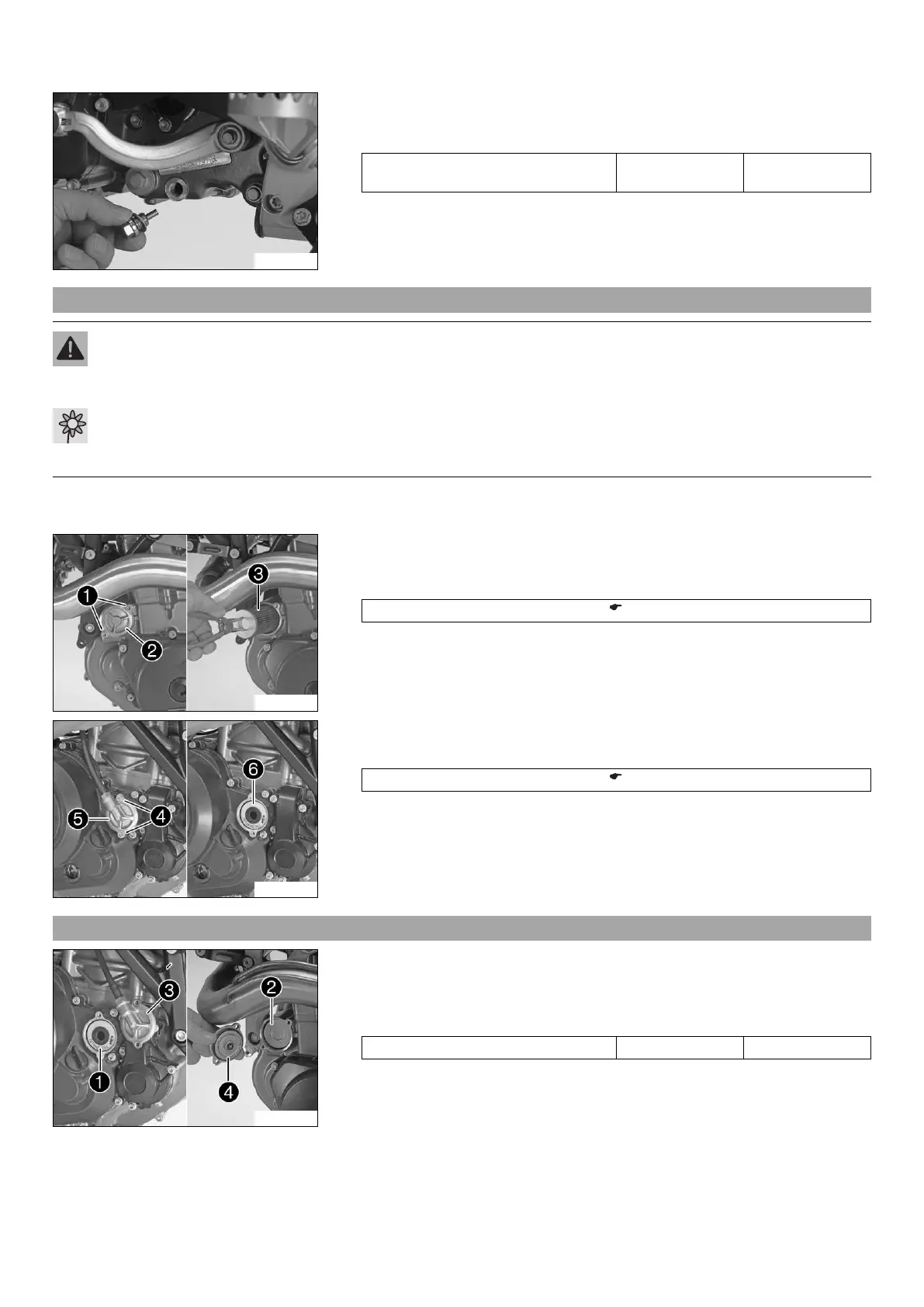

20 LUBRICATION SYSTEM 184
100201-01
– Thoroughly clean the oil drain plug with a magnet.
– Mount the oil drain plug with the magnet and seal ring and tighten it.
Guideline
Oil drain plug with magnet M12x1.5 20 Nm
(14.8 lbf ft)
20.6 Removing the oil filter
Warning
Danger of scalding Engine oil and gear oil get very hot when the motorcycle is ridden.
– Wear appropriate protective clothing and safety gloves. In case of burns, rinse immediately with lukewarm water.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Preparatory work
– Place a suitable container under the engine.
102020-10
Main work
–
Remove screws
. Remove the oil filter cover
with the O-ring.
–
Pull oil filter
out of the oil filter housing.
Circlip pliers reverse (51012011000) ( p. 229)
102021-10
–
Remove screws
. Take off the oil filter cover
with the O-ring.
–
Pull oil filter
out of the oil filter housing.
Circlip pliers reverse (51012011000) ( p. 229)
– Completely drain the engine oil.
– Thoroughly clean the parts and sealing area.
20.7 Installing the oil filter
102022-10
–
Insert oil filters
and
.
–
Oil the O-rings of the oil filter covers. Mount oil filter covers
and
.
– Mount and tighten the screws.
Guideline
Screw, oil filter cover M5x16 6 Nm (4.4 lbf ft)
