8 SHOCK ABSORBER, SWINGARM 40

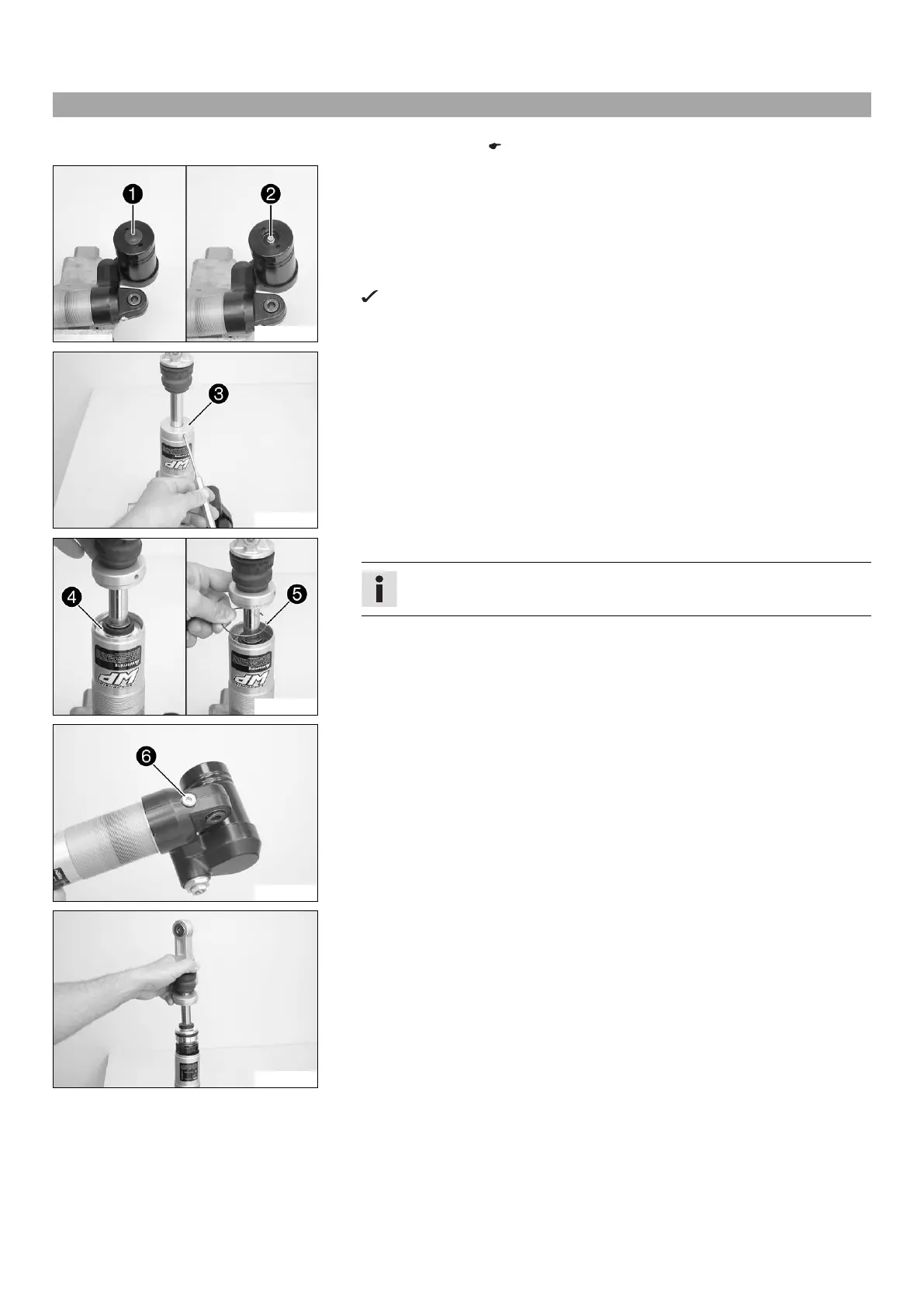

8.13 Dismantling the damper
Preparatory work
– Remove the spring. ( p. 39)
201273-10
Main work
– Establish and note the current state of the rebound damping and compression
damping.
– Completely open the adjusters of the rebound and compression damping.
–
Remove rubber cap
of the reservoir.
–
Open screw
slowly.
The pressurized nitrogen escapes.
201274-10
– Clamp the damper in the vise using soft jaws.
–
Remove locking cap
.
201276-10
–
Press in seal ring retainer
. Remove lock ring
.
Info
Do not scratch the inner surface.
201277-10
–
Remove screw
. Drain the oil.
201278-10
– Remove the piston rod. Drain the remaining oil.
