16 ENGINE 120

305581-10

–

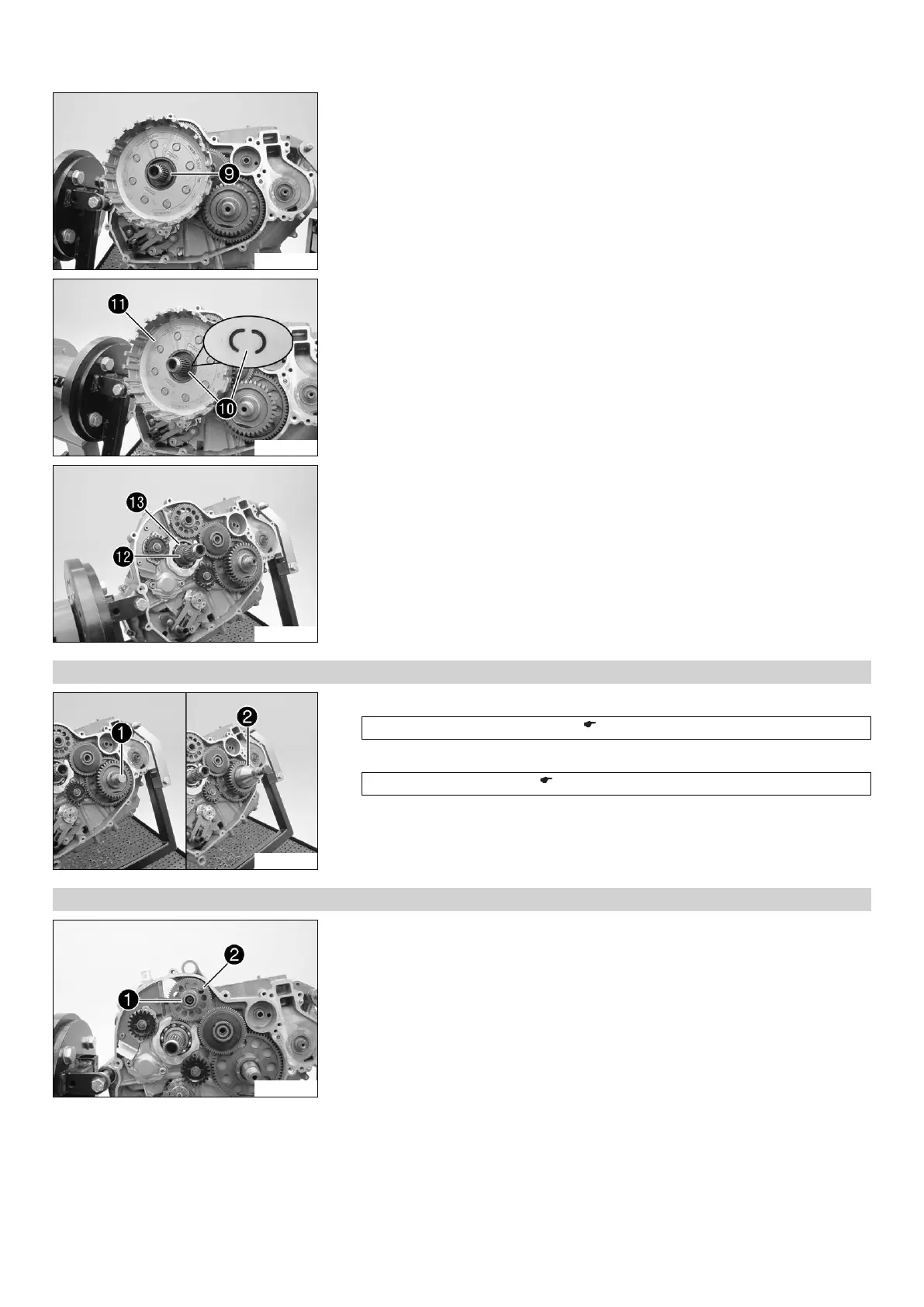

Remove stepped washer



305582-10

–

Remove half washers



–

Take off the clutch basket



305583-10

–

Remove needle bearing



and supporting plate



16.3.24 Removing the primary gear

305585-10

–

Position special tool



Protection cover (75029090000) ( p. 236)

–

Mount special tool



Extractor (75029021000) ( p. 233)

– Hold it using the special tool and pull off the primary gear by turning the screw in.

– Remove the special tools.

16.3.25 Removing the starter drive

305614-10

–

Remove lock ring



–

Take off the starter idler gear



with the washers.
