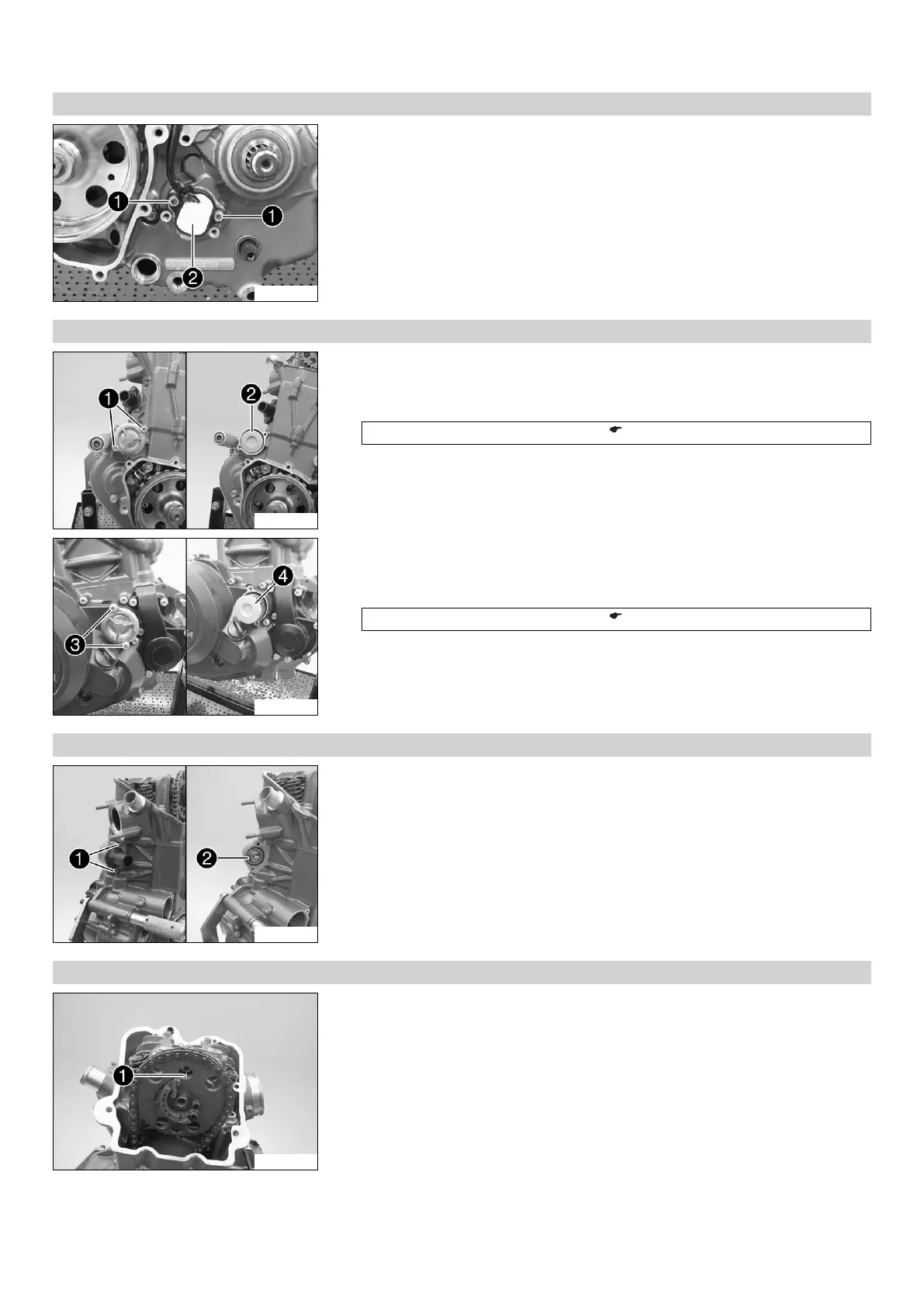

16 ENGINE 113
16.3.7 Removing the gear position sensor
201959-11
–
Remove screws

with the washers.
–
Remove gear position sensor

with the O-ring.
16.3.8 Removing the oil filter
305526-10
–
Remove screws

.
– Take off the oil filter cover with the O-ring.
–
Remove oil filter

.
Circlip pliers reverse (51012011000) ( p. 229)
305549-10
–
Remove screws

.
– Take off the oil filter cover with the O-ring.
–
Remove oil filter

.
Circlip pliers reverse (51012011000) ( p. 229)
16.3.9 Removing the thermostat
305528-10
–
Remove screws

.
– Take off the thermostat case.
–
Remove thermostat

.
16.3.10 Setting engine to ignition top dead center
305531-10
–
Turn the crankshaft counterclockwise until markings

of the camshafts are flush
with the marks of the camshaft support plate.
